Power Transmission > Bearings > Mounted Bearings > Insert Bearings

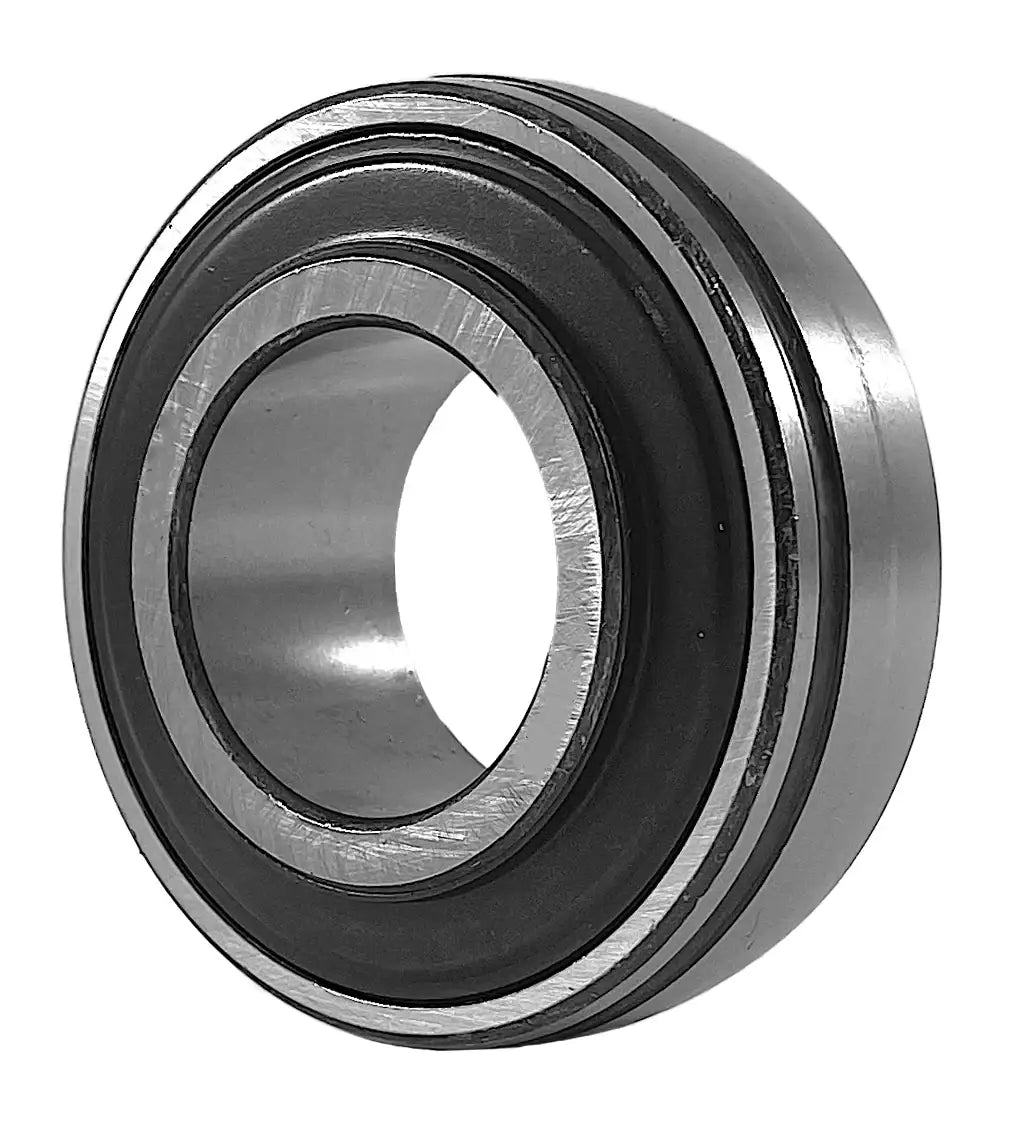

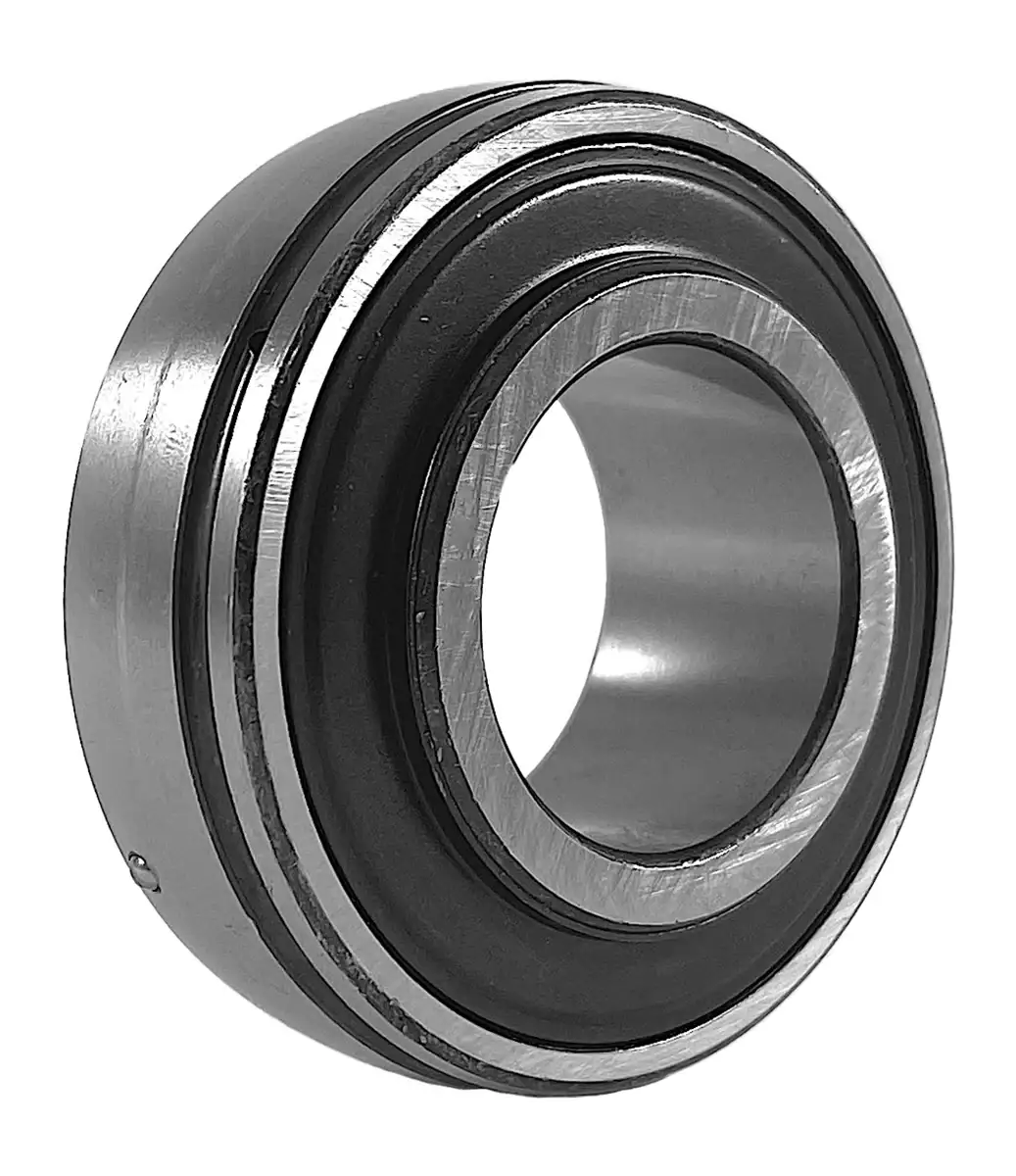

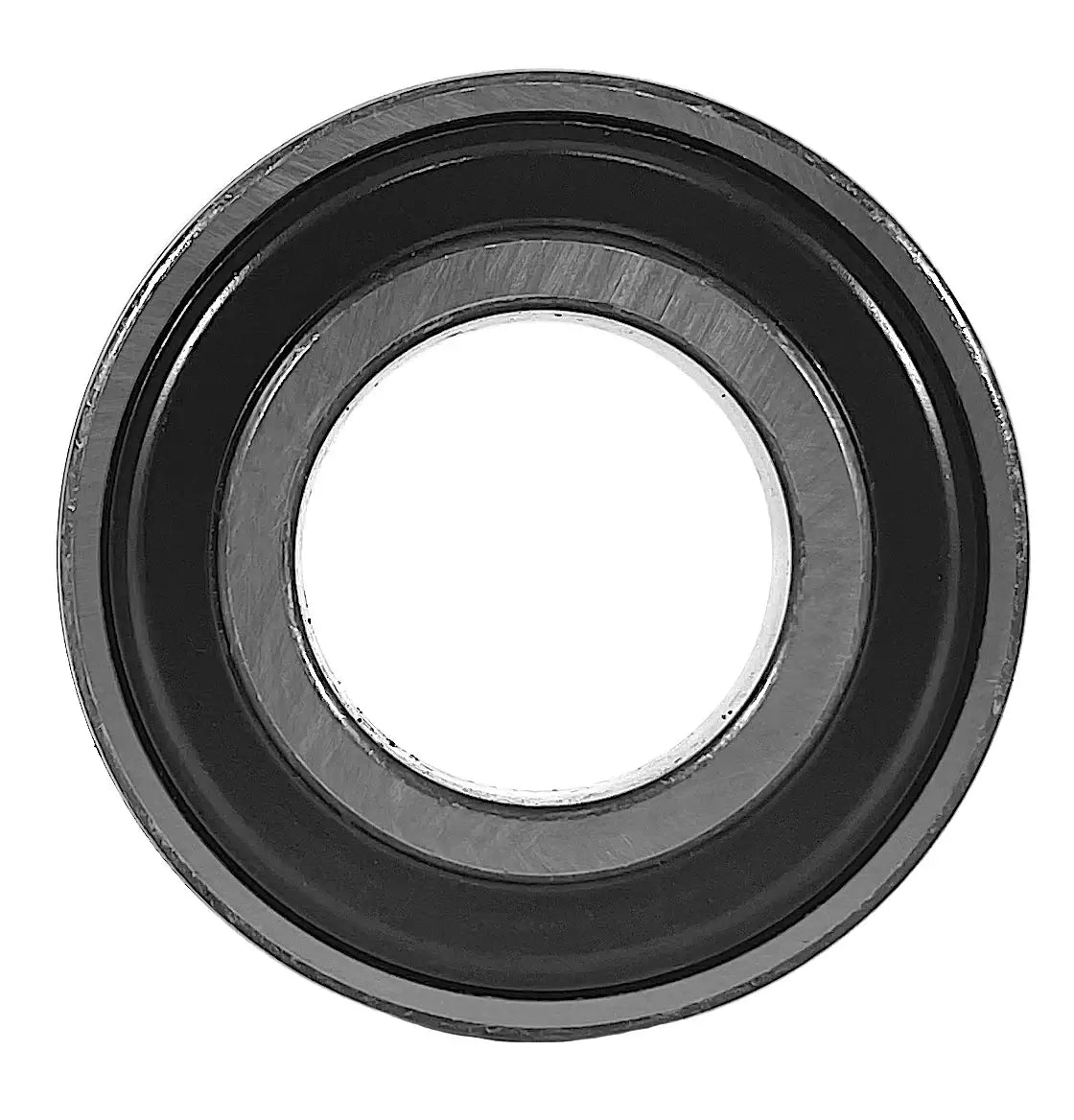

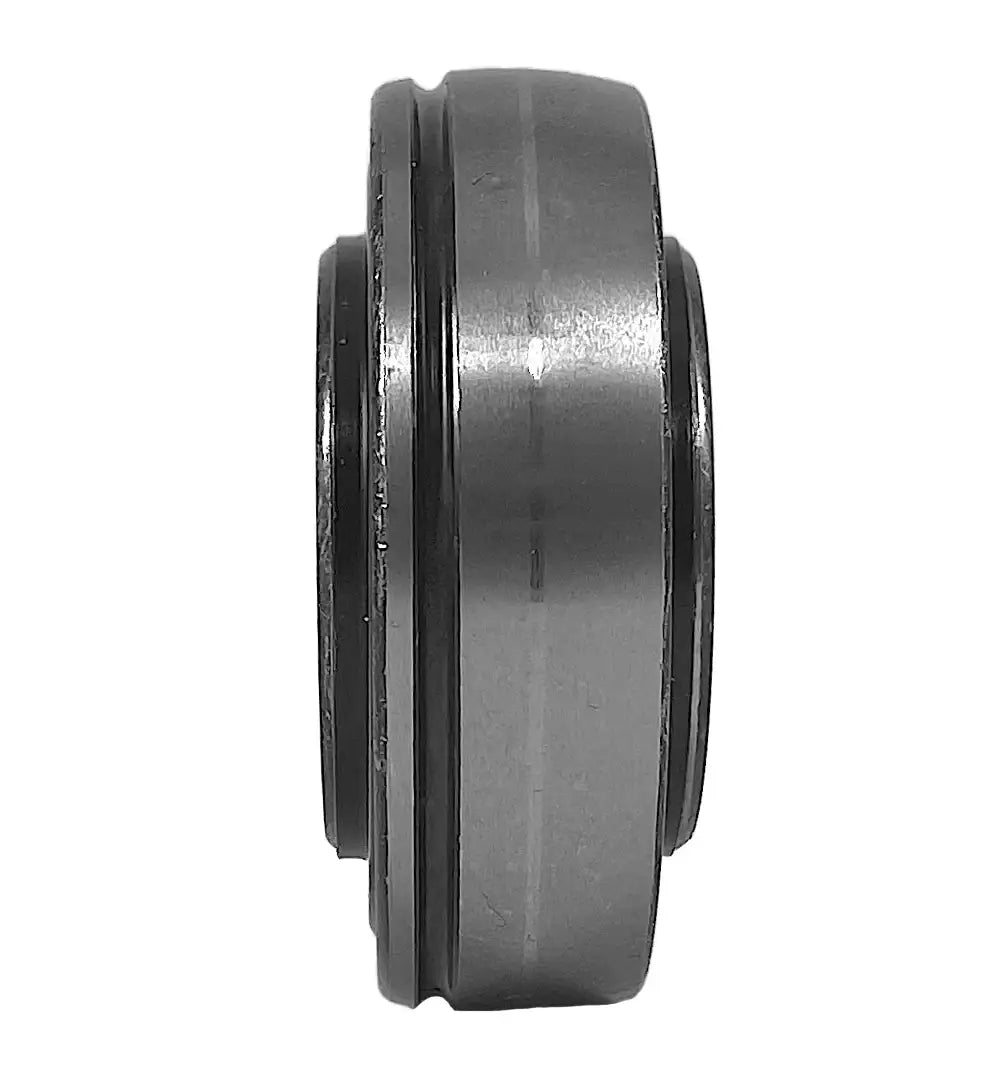

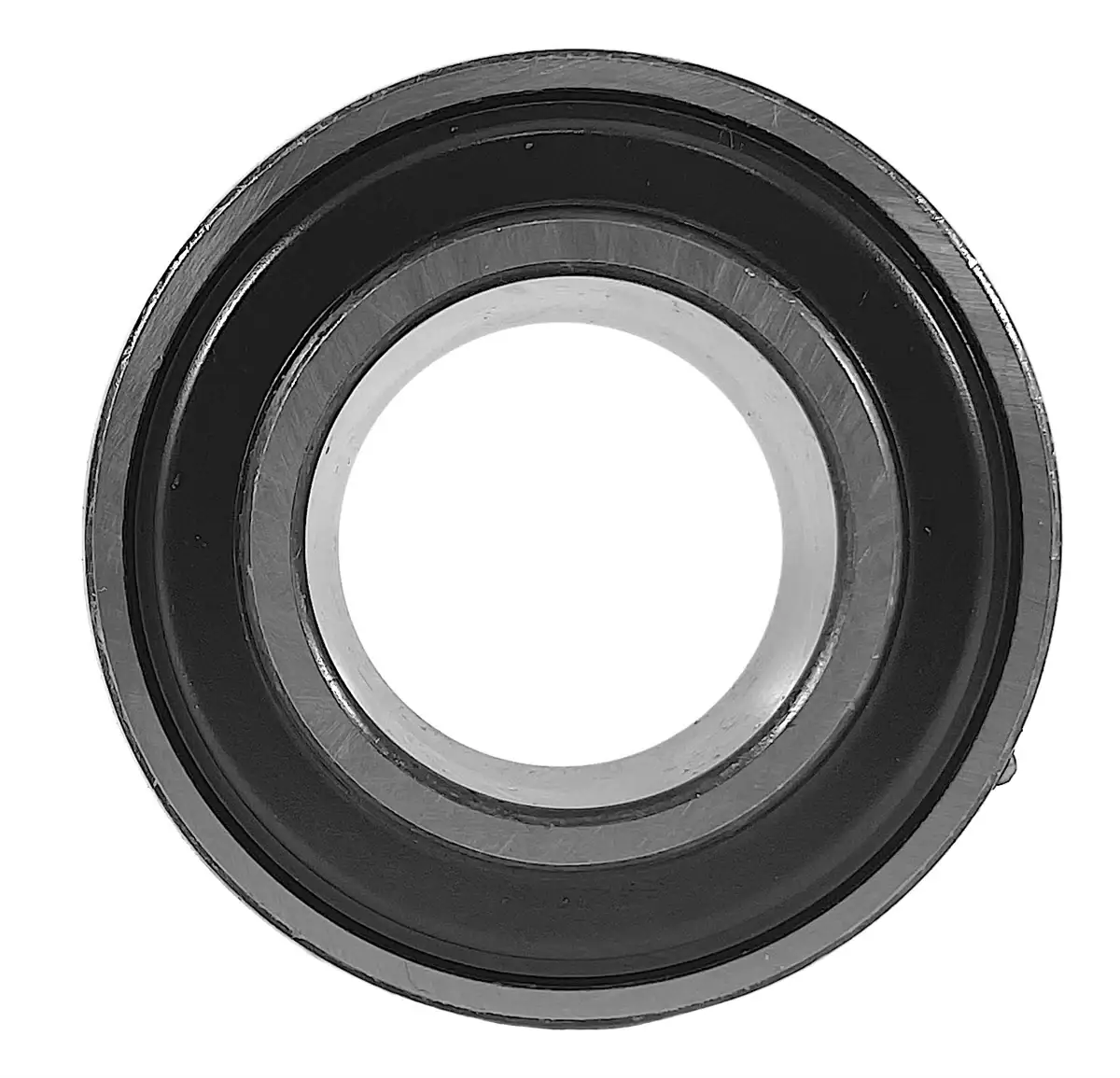

UK205-34 Insert Bearing | 3/4" Tapered Adapter Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UK-205-34-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UK205-34 Insert Bearing | 3/4" Tapered Adapter Insert Bearing Features
UK205-34 Insert Bearing | 3/4" Tapered Adapter Insert Bearing Specifications
UK205-34 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 3/4" bore. Our UK205-34 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK205-34 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK205-34 bearings, contact our customer service and, we will be happy to assist you!
UK205-34 Bearing Dimensions
- Part #: UK 205
- Shaft Diameter (d): 3/4"
- Dimension (d): 0.9843"
- Dimension (D): 2.0472"
- Dimension (Bi): 0.9055"
- Dimension (Be): 0.6693"
- Dimension (T): 0.1575"
- Dynamic Load Rating (LBS): 3,155
- Static Load Rating (LBS): 1,810
- Fits Housing Size: 206 / X05
- Weight (LBS): 0.5
- Part #: UK 205
- Shaft Diameter (d): 3/4"
- Dimension (d): 0.9843"
- Dimension (D): 2.0472"
- Dimension (Bi): 0.9055"
- Dimension (Be): 0.6693"
- Dimension (T): 0.1575"
- Dynamic Load Rating (LBS): 3,155
- Static Load Rating (LBS): 1,810
- Fits Housing Size: 206 / X05
- Weight (LBS): 0.5
