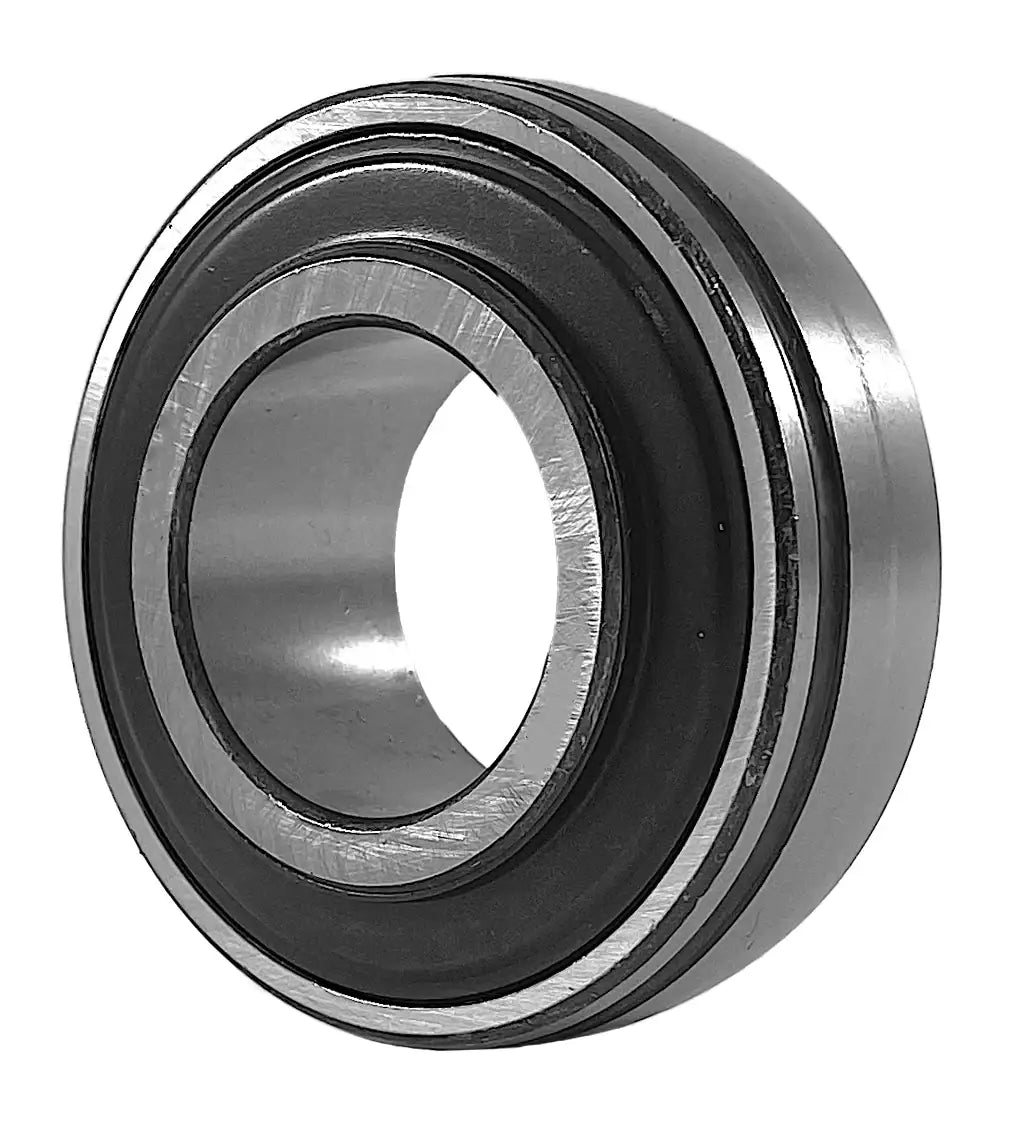

UK205-20 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 20mm bore. Our UK205-20 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK205-20 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK205-20 bearings, contact our customer service and, we will be happy to assist you!

UK205-20 Bearing Dimensions

• Part #: UK 205
• Shaft Diameter (d): 20mm
• Dimension (d): 25.0mm
• Dimension (D): 52.0mm
• Dimension (Bi): 23.0mm
• Dimension (Be): 17.0mm
• Dimension (T): 4.0mm
• Dynamic Load Rating (kN): 14.04
• Static Load Rating (kN): 8.05
• Fits Housing Size: 206 / X05
• Weight (kg): 0.2
