UETB209-27 Bearing | 1-11/16" 2-Bolt Tapped Base Bearing

UETB209-27 bearing is a 1-11/16" bore tapped-base normal-duty mounted bearing unit that utilizes a Tru-Loc device for securing onto a 1-11/16" shaft. UETB209-27 pillow block bearings have a unique housing designed for narrow applications with radial loads acting in the direction of the support surface. Our superior UETB209-27 bearing with a 1-11/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UETB209-27 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Tapped base UETB209-27 pillow block bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UETB209-27 bearings are manufactured to industry standard dimensions; they also interchange with just about any brand out there. Contact our customer support team for further information or to get a quote on our UETB209-27 bearings, and we will be happy to assist you!

UETB209-27 Bearing Dimensions

• Part #: UETB 209-27
• Shaft Diameter (d): 1-11/16"
• Dimension (H): 2.125"
• Dimension (A): 5.00"
• Dimension (E): 3.75"
• Dimension (B): 2.00"
• Dimension (R): 0.79"
• Dimension (G): 0.56"
• Dimension (W): 4.25"
• Dimension (Bi): 1.9764"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Bolt Used: 1/2-13
• Dynamic Load Rating (LBS): 7,160
• Static Load Rating (LBS): 4,676

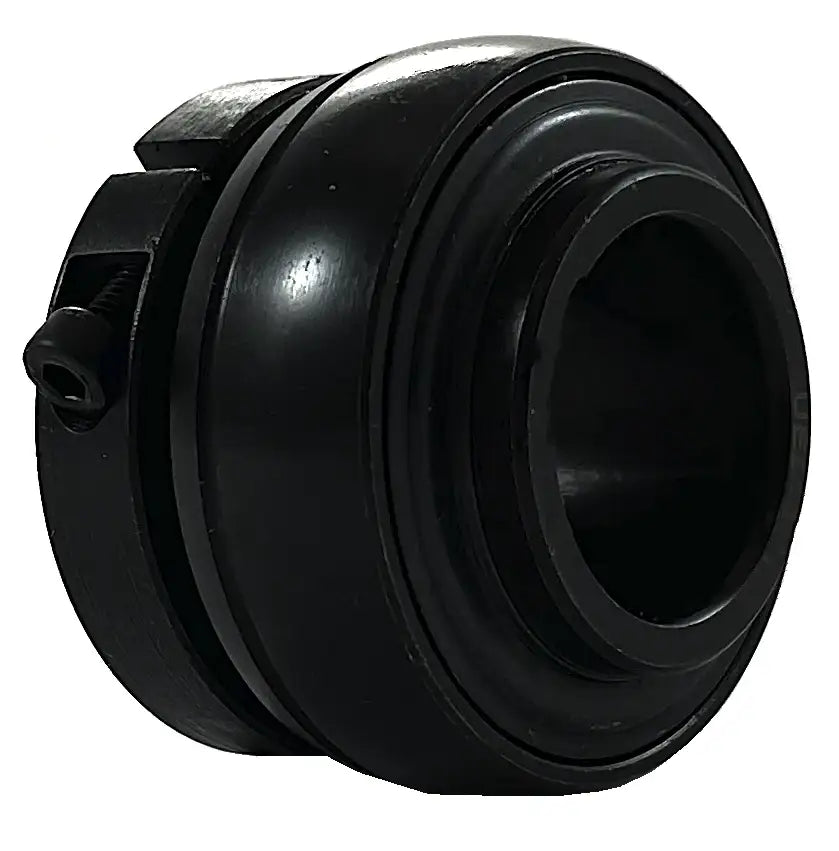

• Bearing Insert: UE 209-27
• Housing Number: TB 209
• Weight (LBS): 5.5
