UEST208-25 Bearing | 1-9/16" Take-Up Bearing

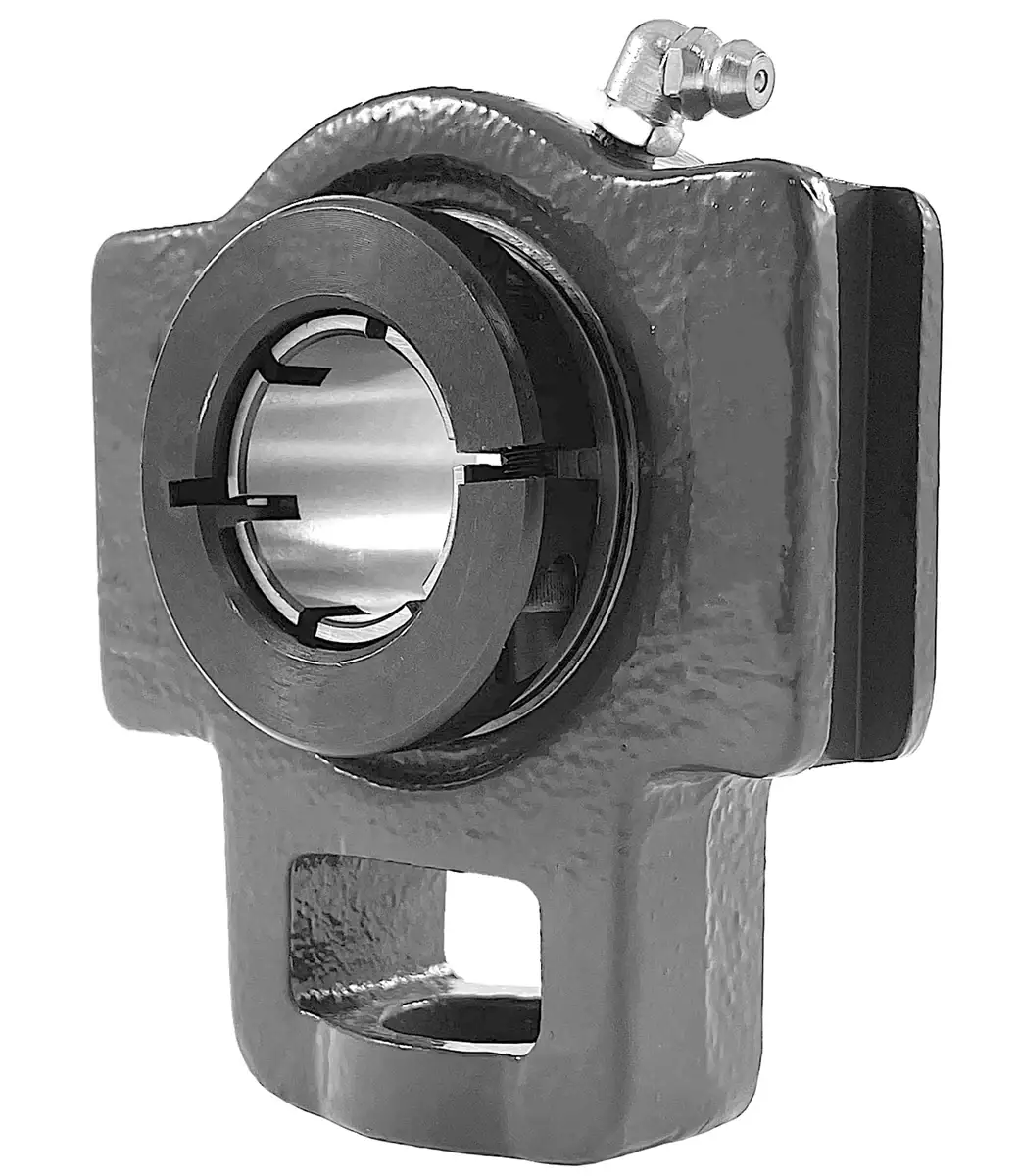

UEST208-25 bearing is a 1-9/16" bore normal-duty take-up bearing that utilizes a Tru-Loc device to secure to a 1-9/16" shaft. UEST208-25 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UEST208-25 bearing with a 1-9/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEST208-25 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEST208-25 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEST208-25 bearings, and we will be happy to assist you!

UEST208-25 Take-Up Bearing Dimensions

• Part #: UEST 208-25
• Shaft Diameter (d): 1-9/16"
• Dimension (O): 0.75"
• Dimension (G): 0.63"
• Dimension (P): 3.25"
• Dimension (Q): 1.94"
• Dimension (S): 1.13"
• Dimension (B): 3.25"
• Dimension (K): 0.69"
• Dimension (E): 4.00"
• Dimension (A): 4.50"
• Dimension (W): 5.69"
• Dimension (J): 1.94"
• Dimension (L): 1.31"
• Dimension (H): 3.50"
• Dimension (Bi): 1.9764"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Dynamic Load Rating (LBS): 6,634
• Static Load Rating (LBS): 4,079
• Bearing Insert: UE 208-25
• Housing Number: ST 208
• Weight (LBS): 5.5
