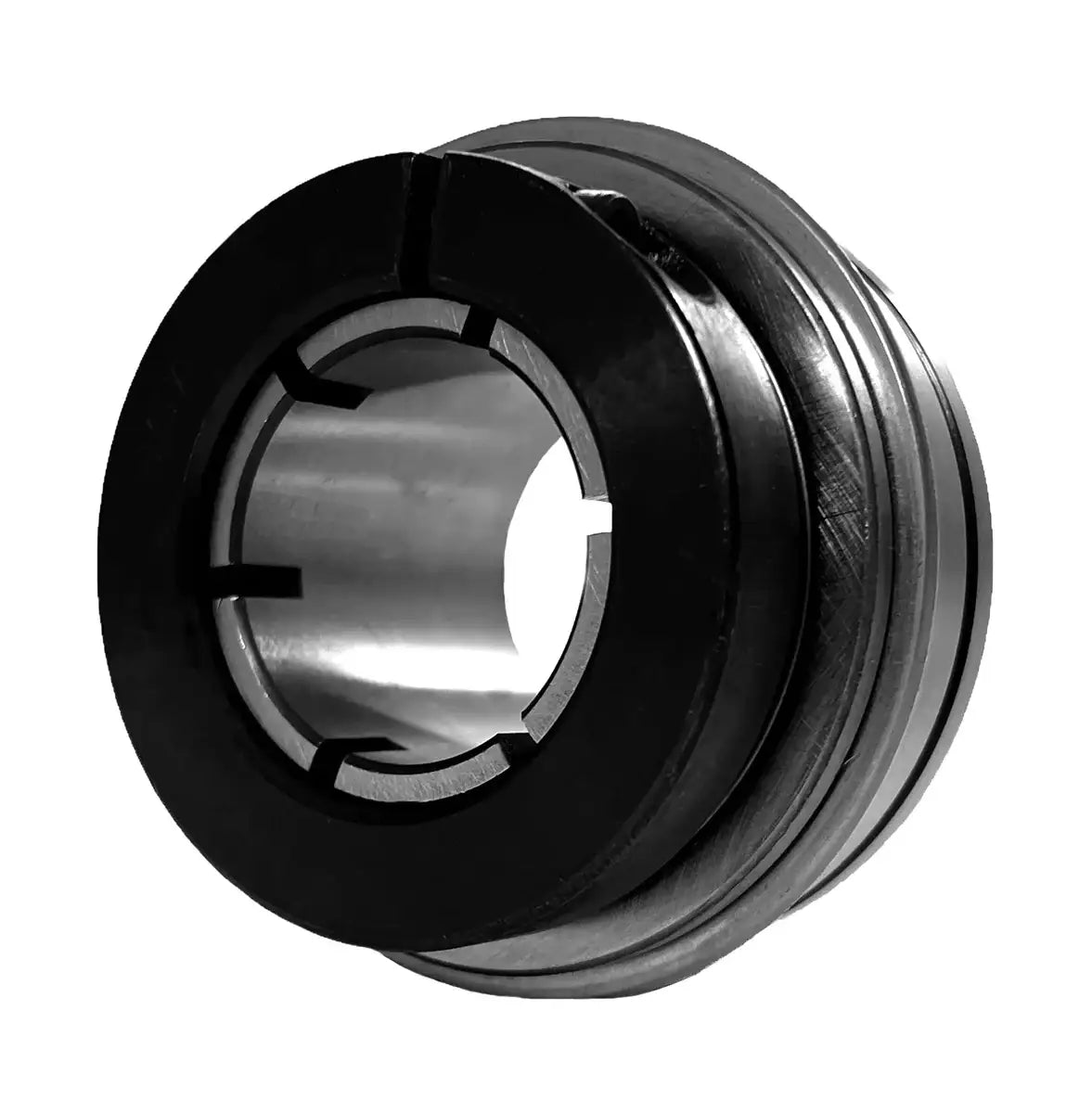

UER208-25 Insert Bearing | 1-9/16" Insert Bearing With Snap Ring

UER208-25 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes a Tru-Loc devise to secure to a 1-9/16" shaft. Our UER208-25 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UER208-25 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UER208-25 bearings, contact our customer service and, we will be happy to assist you!

UER208-25 Bearing Dimensions

• Part #: UER 208-25
• Shaft Diameter (d): 1-9/16"
• Setscrew Used: 5/16-24"
• Dimension (D): 3.1496"
• Dimension (Bi): 1.9764"
• Dimension (Be): 1.0945"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Dimension (W): 2.677"
• Dimension (K): 0.433"
• Dimension (A): 0.0650"
• Dimension (AN): 0.1252"
• Dimension (Y): 3.4094"
• Dimension (T): 0.2953"
• Dynamic Load Rating (LBS): 6,634
• Static Load Rating (LBS): 4,079
• Weight (LBS): 1.5
