UEHA212 Bearing | 60mm Hanger Bearing

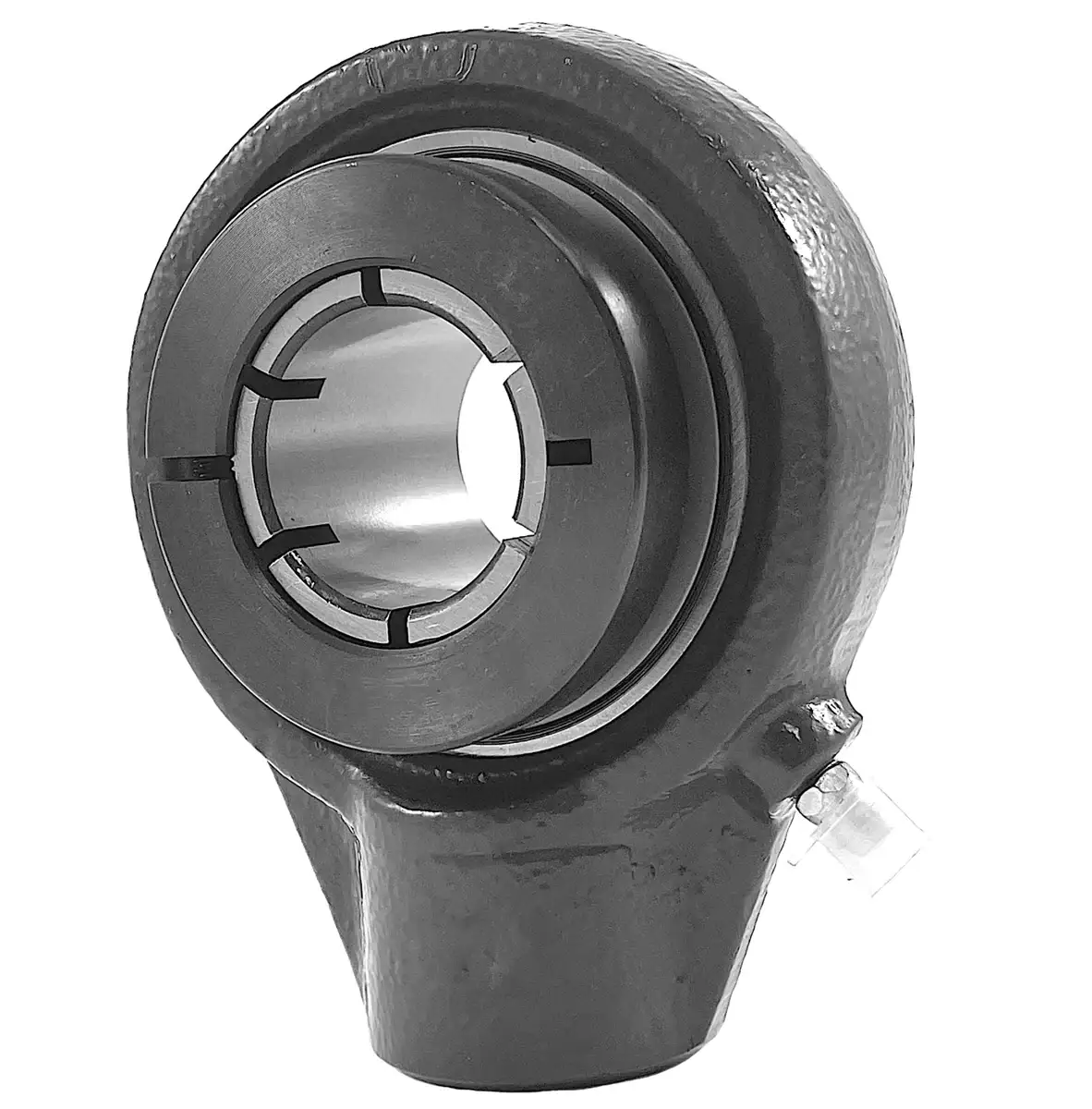

UEHA212 bearing is a 60mm bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 60mm shaft. UEHA212 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UEHA212 bearing with a 60mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA212 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA212 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA212 bearings, and we will be happy to assist you!

UEHA212 Hanger Bearing Dimensions

• Part #: UEHA 212
• Shaft Diameter (d): 60mm
• Dimension (A): 142.0mm
• Dimension (W): 173.0mm
• Dimension (C): 9.0mm
• Dimension (H): 102.0mm
• Dimension (L): 60.0mm
• Dimension (D): 28.0mm
• Dimension (K): PF 1/4
• Dimension (Bi): 66.6mm
• Dimension (N): 25.4mm
• Dimension (M): 39.7mm
• Dynamic Load Rating (kN): 47.69
• Static Load Rating (kN): 33.43
• Bearing Insert: UE 212
• Housing Number: HA 212
• Weight (kg): 3.7
