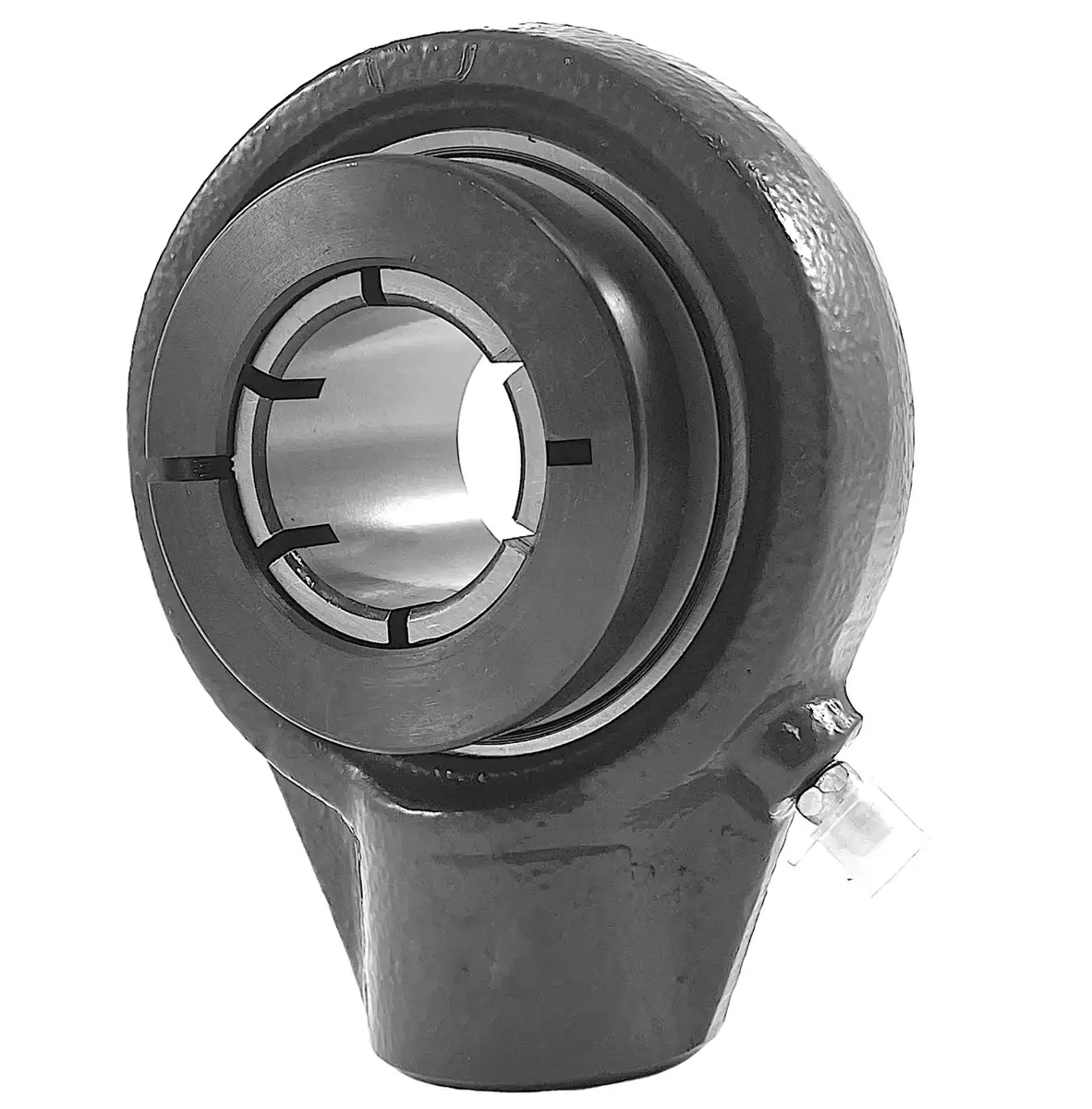

UEHA207-23 Bearing | 1-7/16" Hanger Bearing

UEHA207-23 bearing is a 3/4" bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 3/4" shaft. UEHA207-23 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UEHA207-23 bearing with a 3/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA207-23 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA207-23 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA207-23 bearings, and we will be happy to assist you!

UEHA207-23 Hanger Bearing Dimensions

• Part #: UEHA 207-23
• Shaft Diameter (d): 1-7/16"
• Dimension (A): 3.62"
• Dimension (W): 4.57"
• Dimension (C): 0"
• Dimension (H): 2.76"
• Dimension (L): 1.57"
• Dimension (D): 0.75"
• Dimension (K): PF 3/4
• Dimension (Bi): 1.7283"
• Dimension (N): 0.6890"
• Dimension (M): 1.0000"
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: UE 207-23
• Housing Number: HA 207
• Weight (LBS): 2.6
