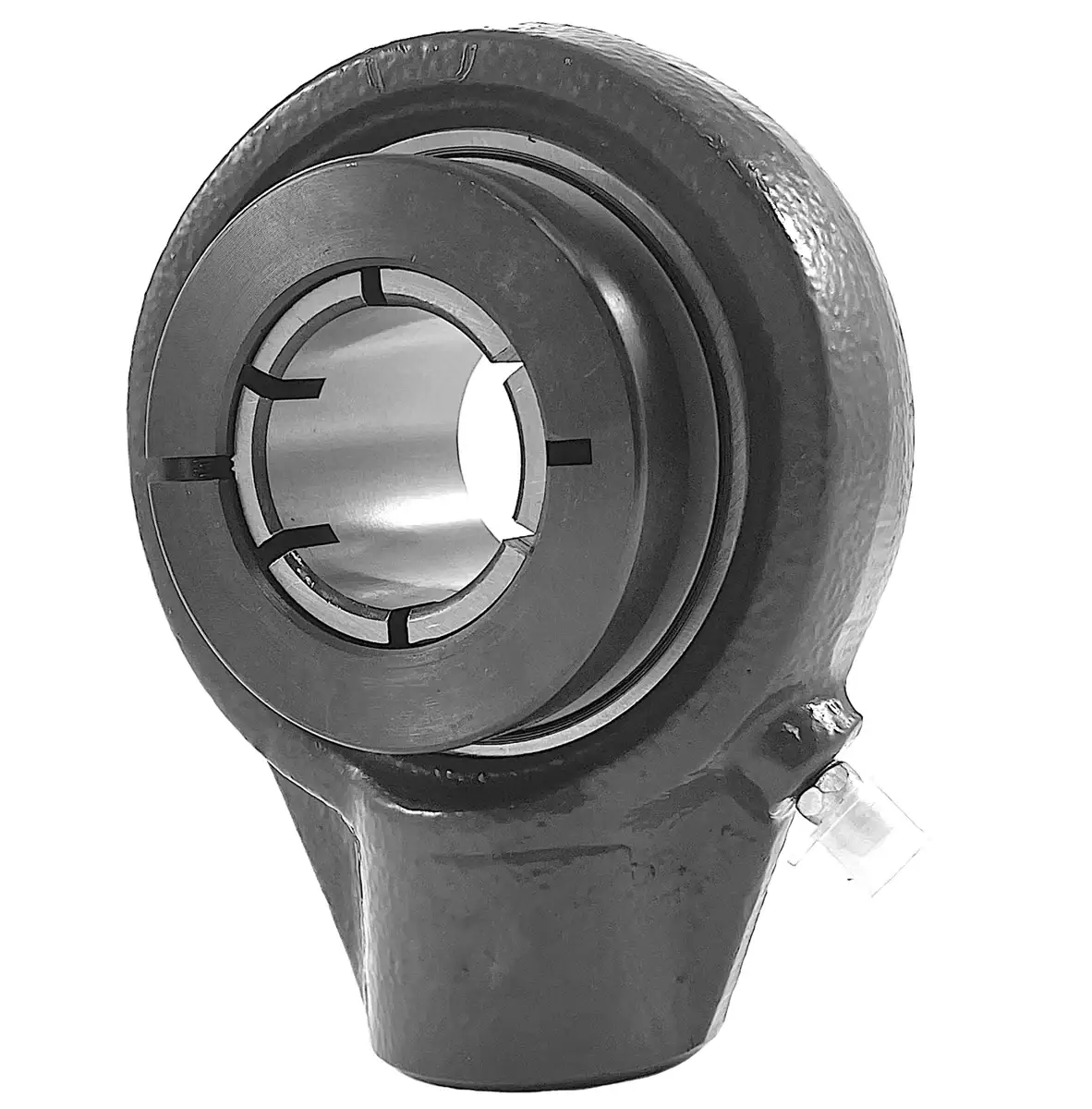

UEHA206-17 Bearing | 1-1/16" Hanger Bearing

UEHA206-17 bearing is a 1-1/16" bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 1-1/16" shaft. UEHA206-17 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UEHA206-17 bearing with a 1-1/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA206-17 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA206-17 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA206-17 bearings, and we will be happy to assist you!

UEHA206-17 Hanger Bearing Dimensions

• Part #: UEHA 206-17
• Shaft Diameter (d): 1-1/16"
• Dimension (A): 3.07"
• Dimension (W): 4.06"
• Dimension (C): 0"
• Dimension (H): 2.52"
• Dimension (L): 1.57"
• Dimension (D): 0.75"
• Dimension (K): PF 3/4
• Dimension (Bi): 1.5669"
• Dimension (N): 0.6260"
• Dimension (M): 0.8740"
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Bearing Insert: UE 206-17
• Housing Number: HA 206
• Weight (LBS): 1.9
