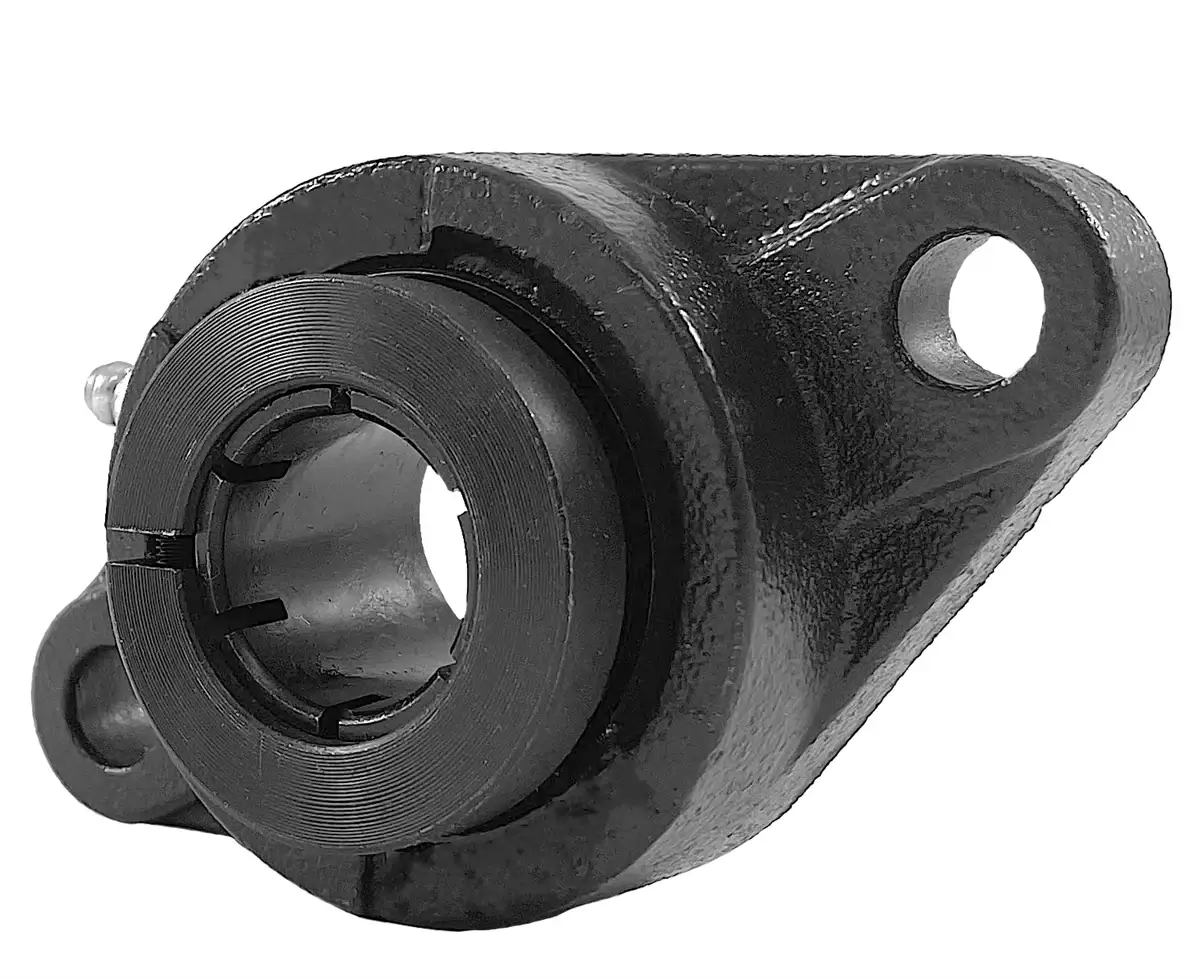

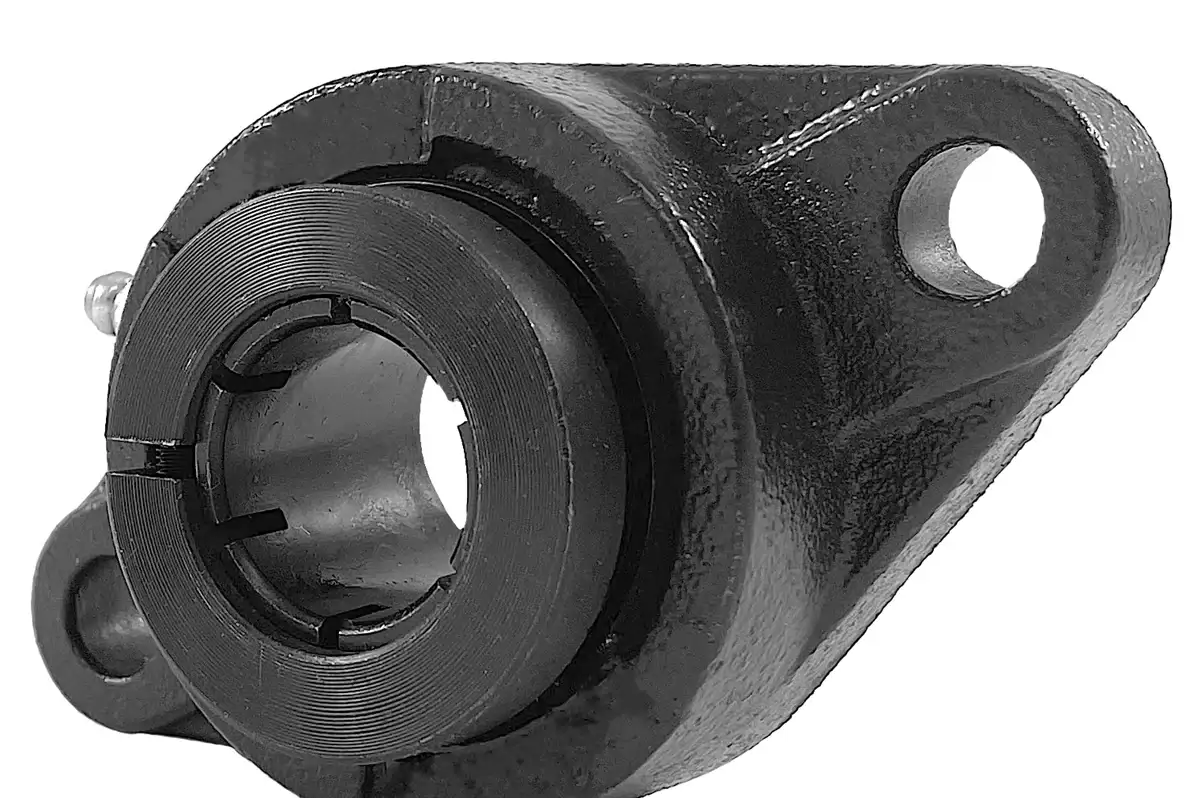

UEFT210-30 Bearing | 1-7/8" 2-Bolt Flange Bearing

UEFT210-30 bearing is a 1-7/8" bore two-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 1-7/8" shaft. UEFT210-30 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UEFT210-30 bearing with a 1-7/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFT210-30 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFT210-30 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFT210-30 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFT210-30 bearings, and we will be happy to assist you!

UEFT210-30 Bearing Dimensions

• Part #: UEFT 210-30
• Shaft Diameter (d): 1-7/8"
• Dimension (A): 7.44"
• Dimension (E): 6.188"
• Dimension (I): 0.88"
• Dimension (G): 0.56"
• Dimension (L): 1.56"
• Dimension (S): 0.63"
• Dimension (B): 4.56"
• Dimension (Z): 2.19"
• Dimension (Bi): 2.0709"
• Dimension (N): 0.7480"
• Dimension (M): 1.283"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330

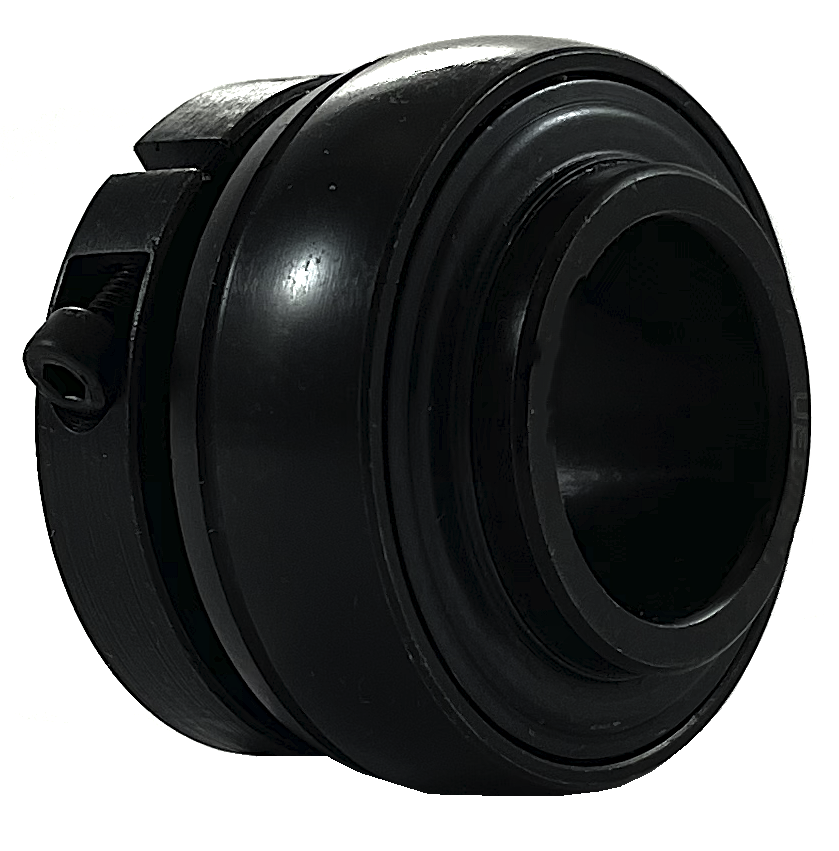

• Bearing Insert: UE 210-30
• Housing Number: FT 210
• Weight (LBS): 2.3
