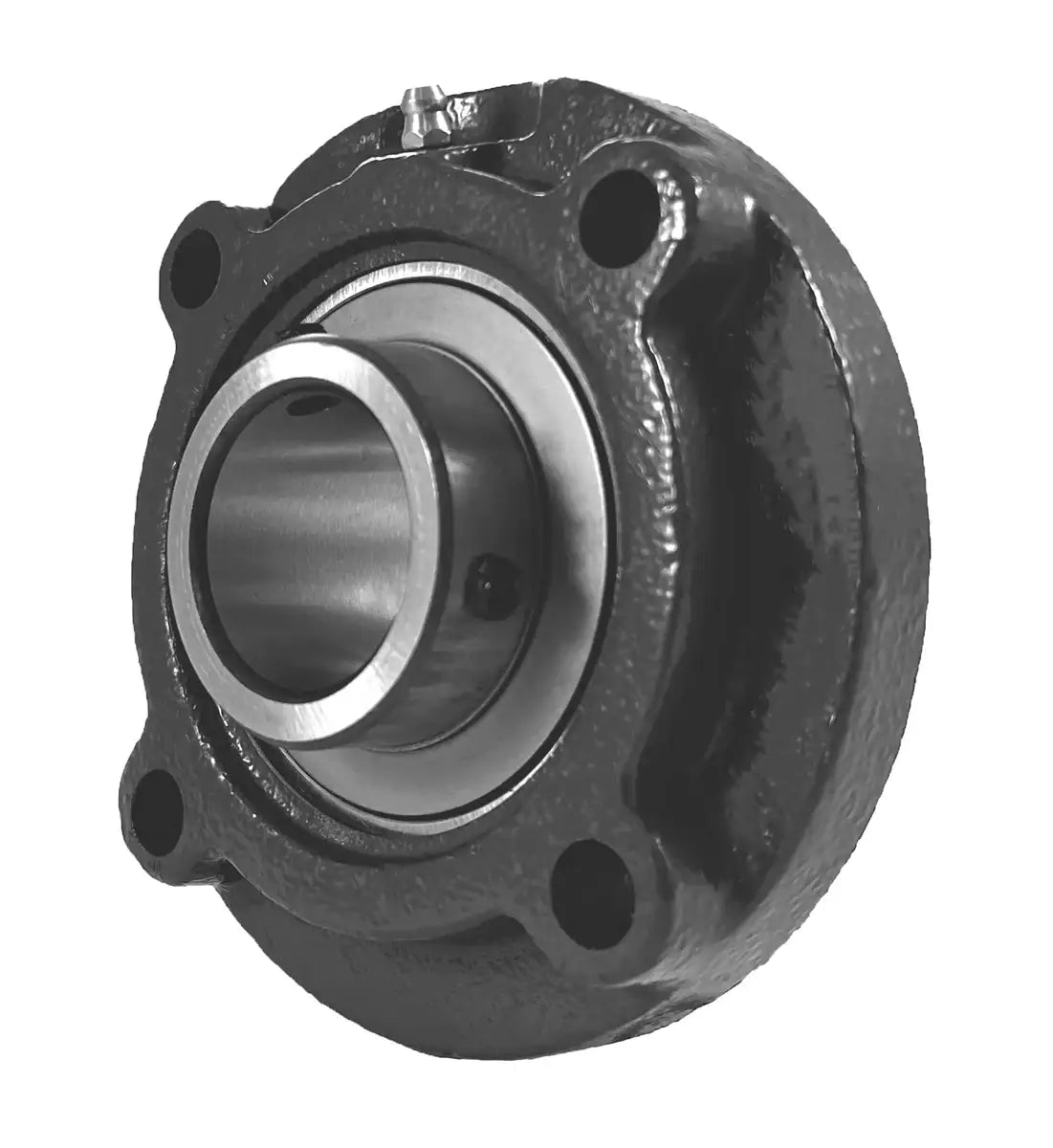

UEFCS206 Bearing | 30mm 4-Bolt Flange Bearing

UEFCS206 bearing is a 30mm bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 30mm shaft and has an inch based housing. UEFCS206 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFCS206 bearing with a 30mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFCS206 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFCS206 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFCS206 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFCS206 bearings, and we will be happy to assist you!

UEFCS206 Bearing Dimensions

• Part #: UEFCS206
• Shaft Diameter (d): 30mm
• Dimension (A): 111.0mm
• Dimension (P): 92.1mm
• Dimension (E): 65.0mm
• Dimension (I): 9.9mm
• Dimension (S): 12.0mm
• Dimension (J): 6.1mm
• Dimension (K): 9.4mm
• Dimension (G): 23.9mm
• Dimension (F): 76.2mm
• Dimension (Z): 30.2mm
• Dimension (Bi): 39.8mm
• Dimension (N): 15.9mm
• Dimension (M): 22.2mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 19.47
• Static Load Rating (kN): 11.43
• Bearing Insert: UE 206
• Housing Number: FCS 206
• Weight (kg): 1.2
