UEFC212 Bearing | 60mm 4-Bolt Flange Bearing

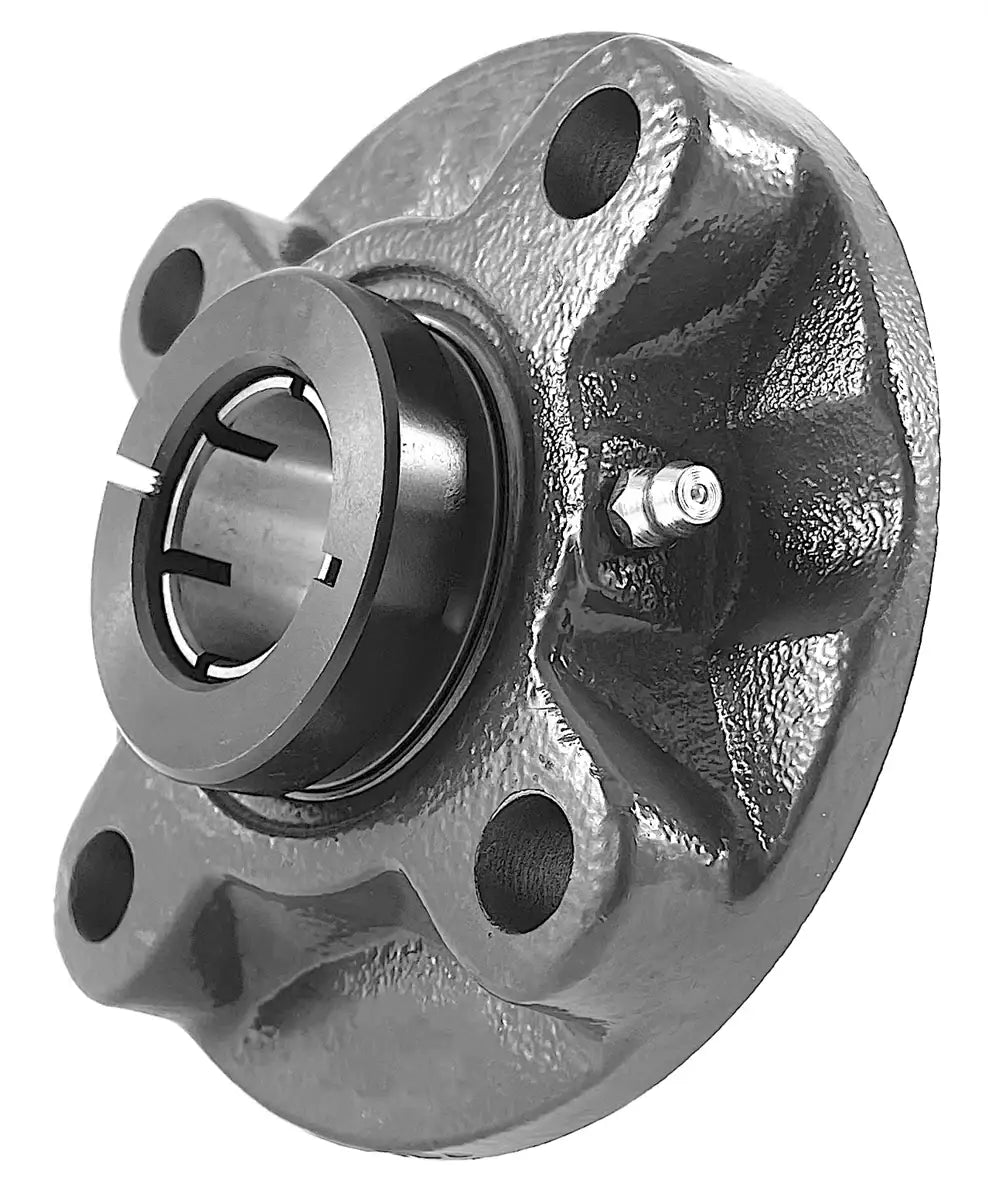

UEFC212 bearing is a 60mm bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 60mm shaft and has a metric based housing. UEFC212 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFC212 bearing with a 60mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFC212 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFC212 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFC212 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFC212 bearings, and we will be happy to assist you!

UEFC212 Bearing Dimensions

• Part #: UEFC 212
• Shaft Diameter (d): 60mm
• Dimension (A): 195.0mm
• Dimension (P): 160.0mm
• Dimension (E): 113.1mm
• Dimension (I): 17.0mm
• Dimension (S): 19.0mm
• Dimension (J): 12.0mm
• Dimension (K):15.0mm
• Dimension (G): 35.0mm
• Dimension (F): 135.0mm
• Dimension (Z): 58.2mm
• Dimension (Bi): 66.6mm
• Dimension (N): 25.4mm
• Dimension (M): 39.7mm
• Bolt Used: M16
• Dynamic Load Rating (kN): 47.69
• Static Load Rating (kN): 33.43
• Bearing Insert: UE 212
• Housing Number: FC 212
• Weight (kg): 5.0
