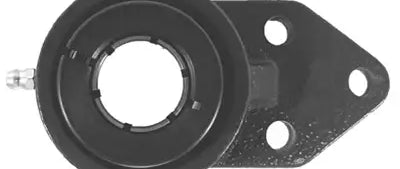

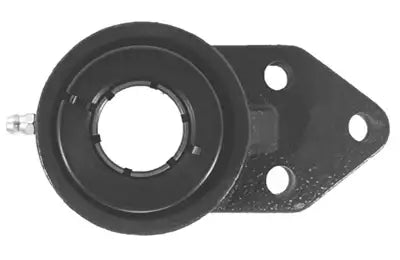

UEFB210-31 Bearing | 1-15/16" 3-Bolt Flange Bearing

UEFB210-31 bearing is a 1-15/16" bore three-bolt normal-duty flange bracket bearing that utilizes a Tru-Loc device to secure to a 1-15/16" shaft. UEFB210-31 flange bearings are designed with a metric-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UEFB210-31 bearing with a 1-15/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFB210-31 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFB210-31 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFB210-31 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFB210-31 bearings, and we will be happy to assist you!

UEFB210-31 Bearing Dimensions

• Part #: UEFB 210-31
• Shaft Diameter (d): 1-15/16"
• Dimension (A): 7.24"
• Dimension (H): 2.68"
• Dimension (E): 2.28"
• Dimension (J): 1.81"
• Dimension (I): 0.87"
• Dimension (G): 0.71"
• Dimension (L): 1.57"
• Dimension (S): 0.47"
• Dimension (B): 4.41"
• Dimension (F): 3.39"
• Dimension (Z): 2.19"
• Dimension (Bi): 2.0709"
• Dimension (N): 0.7480"
• Dimension (M): 1.2835"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330
• Bearing Insert: UE 210-31
• Housing Number: FB 210
• Weight (LBS): 5.3
