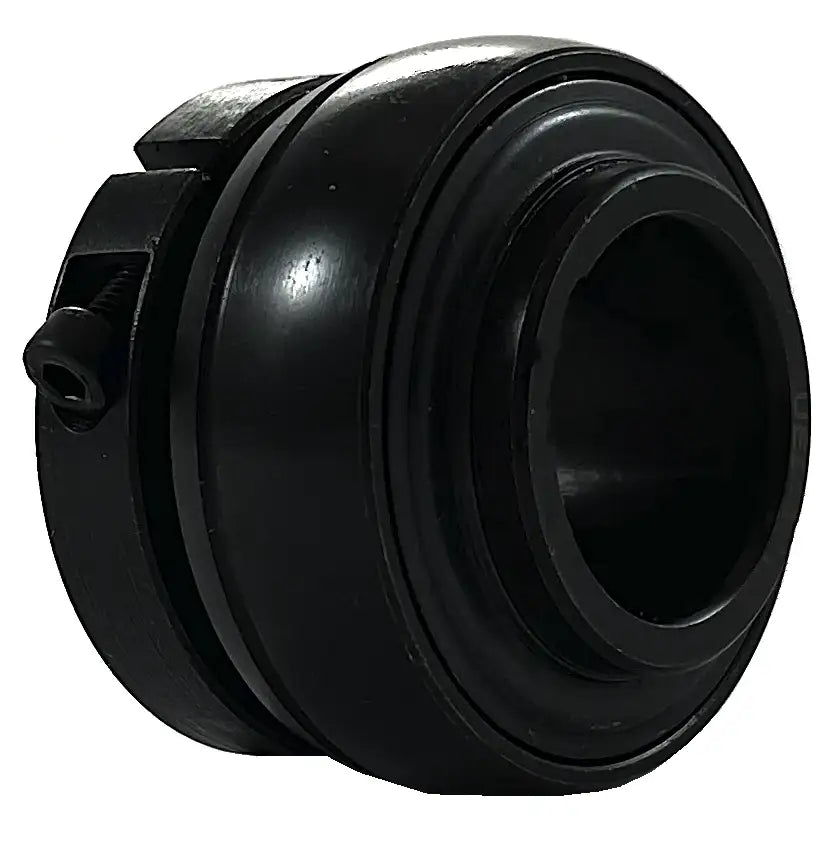

UE208-24 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes a Tru-Loc device for securing a 1-1/2" shaft. Our UE208-24 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UE208-24 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UE208-24 bearings, contact our customer service and, we will be happy to assist you!
UE208-24 Bearing Dimensions
- Part #: UE 208-24
- Shaft Diameter (d): 1-1/2"
- Setscrew Used: 5/16-24
- Dimension (D): 3.1496"
- Dimension (Bi): 1.9764"
- Dimension (Be): 0.8268"
- Dimension (N): 0.7480"
- Dimension (M): 1.1890"
- Dimension (W): 2.677"
- Dimension (K): 0.433"
- Dimension (T): 0.2441"
- Dynamic Load Rating (LBS): 6,634
- Static Load Rating (LBS): 4,079
- Weight (LBS): 1.5
Feature
- Premium Quality Bearing
- Made to C3 Precision Tolerances
- High Performance
- Durable and Long Lasting
- Interchanges With Other Brands
- Part #: UE 208-24
- Shaft Diameter (d): 1-1/2"
- Setscrew Used: 5/16-24
- Dimension (D): 3.1496"
- Dimension (Bi): 1.9764"
- Dimension (Be): 0.8268"
- Dimension (N): 0.7480"
- Dimension (M): 1.1890"
- Dimension (W): 2.677"
- Dimension (K): 0.433"
- Dimension (T): 0.2441"
- Dynamic Load Rating (LBS): 6,634
- Static Load Rating (LBS): 4,079
- Weight (LBS): 1.5
