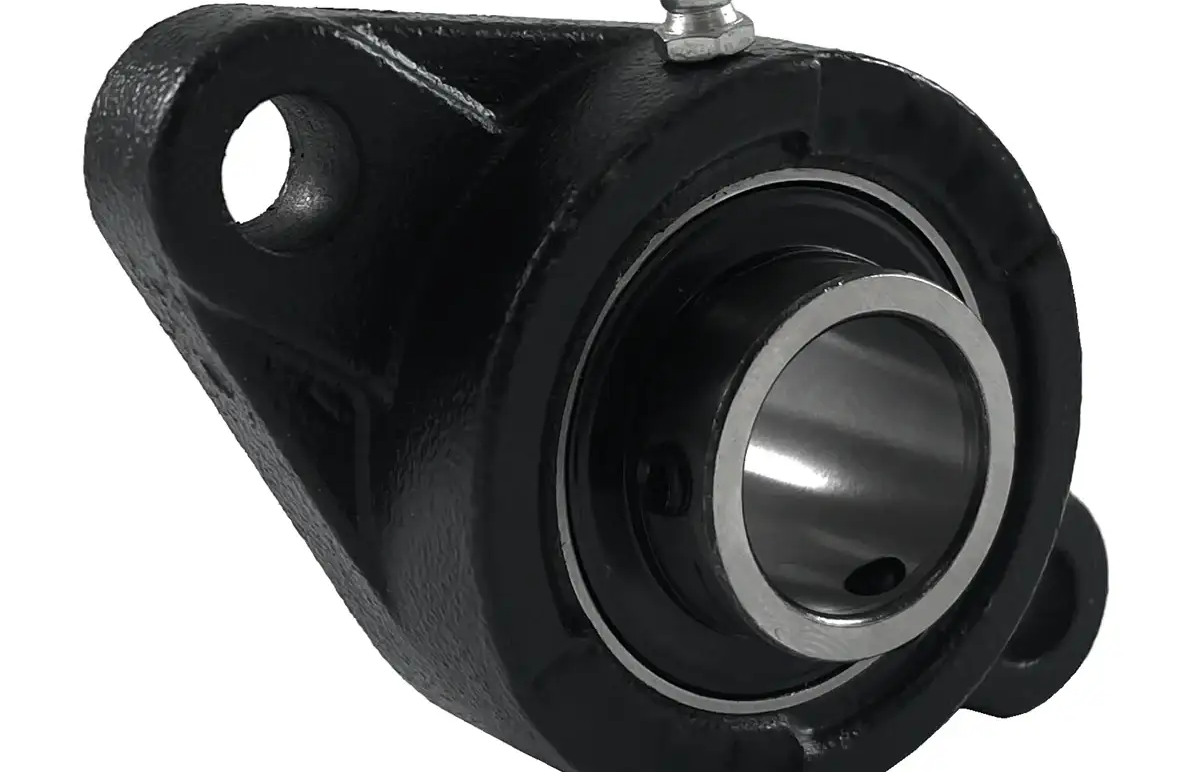

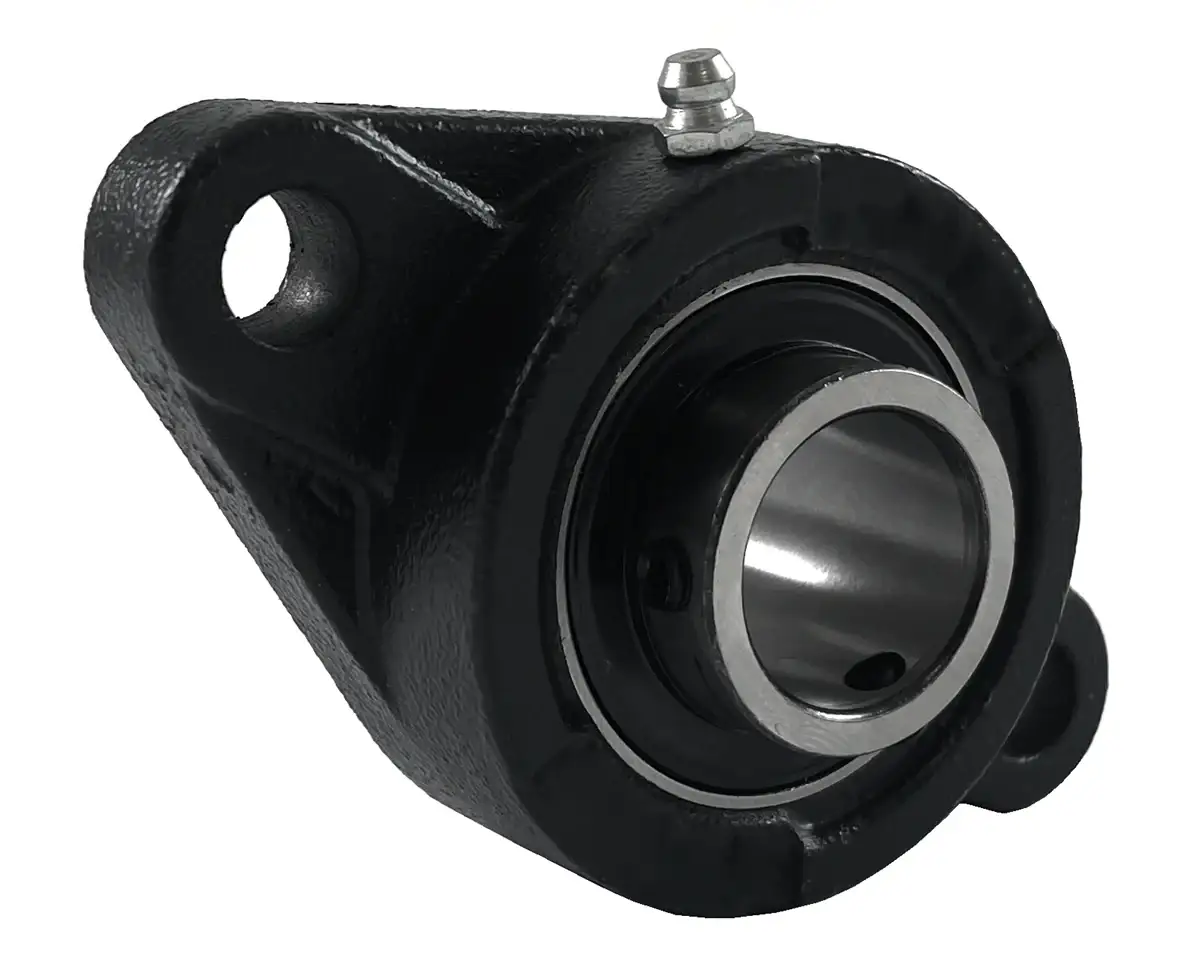

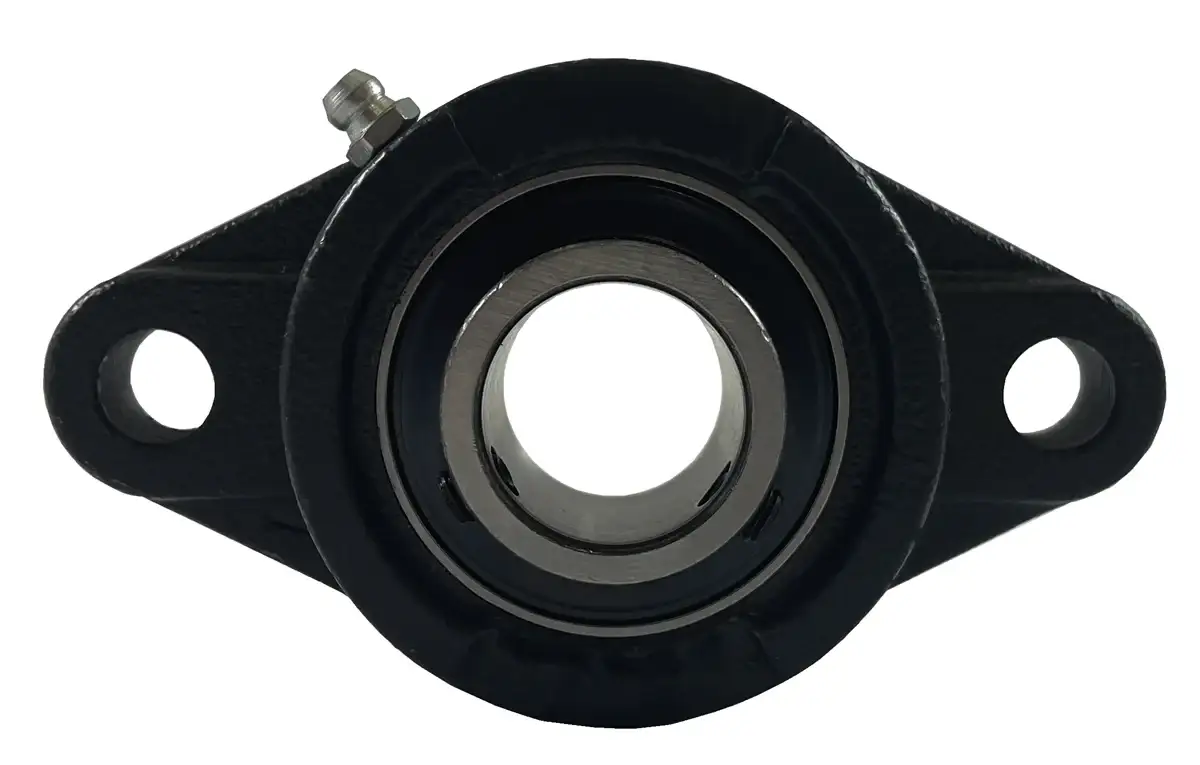

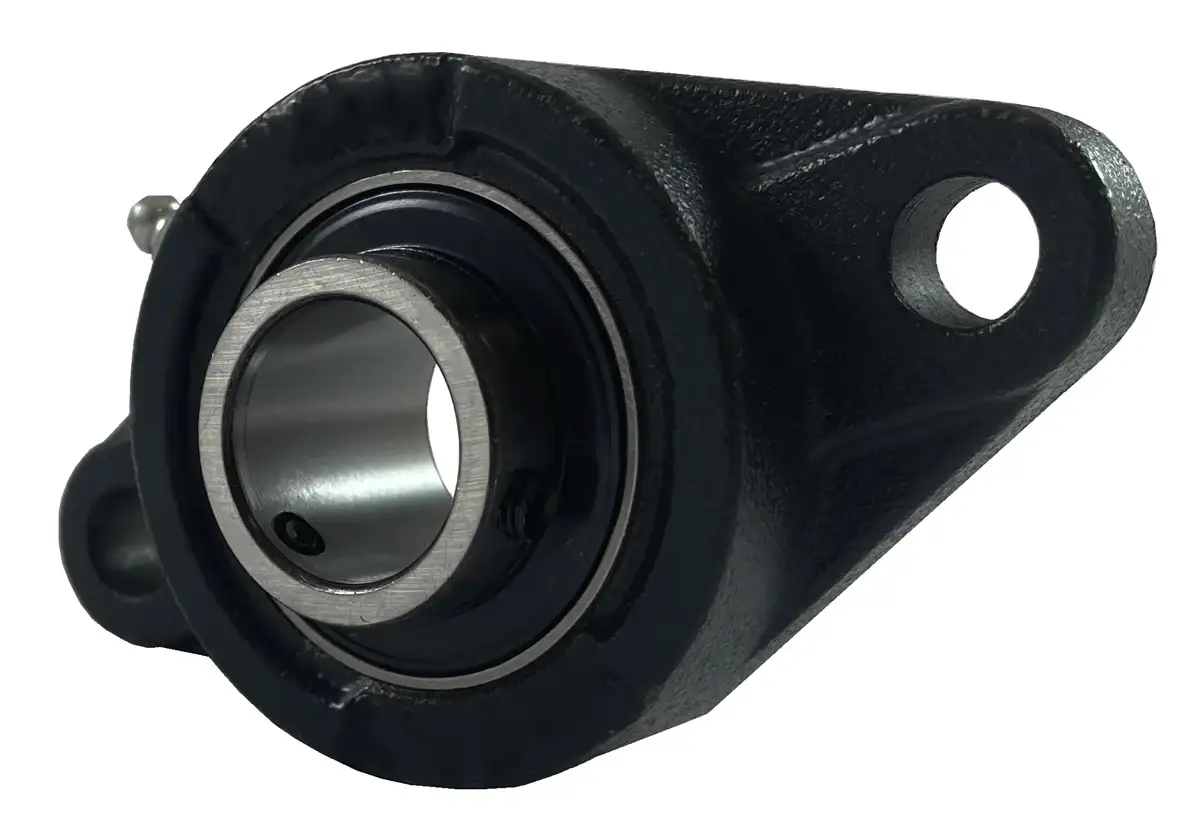

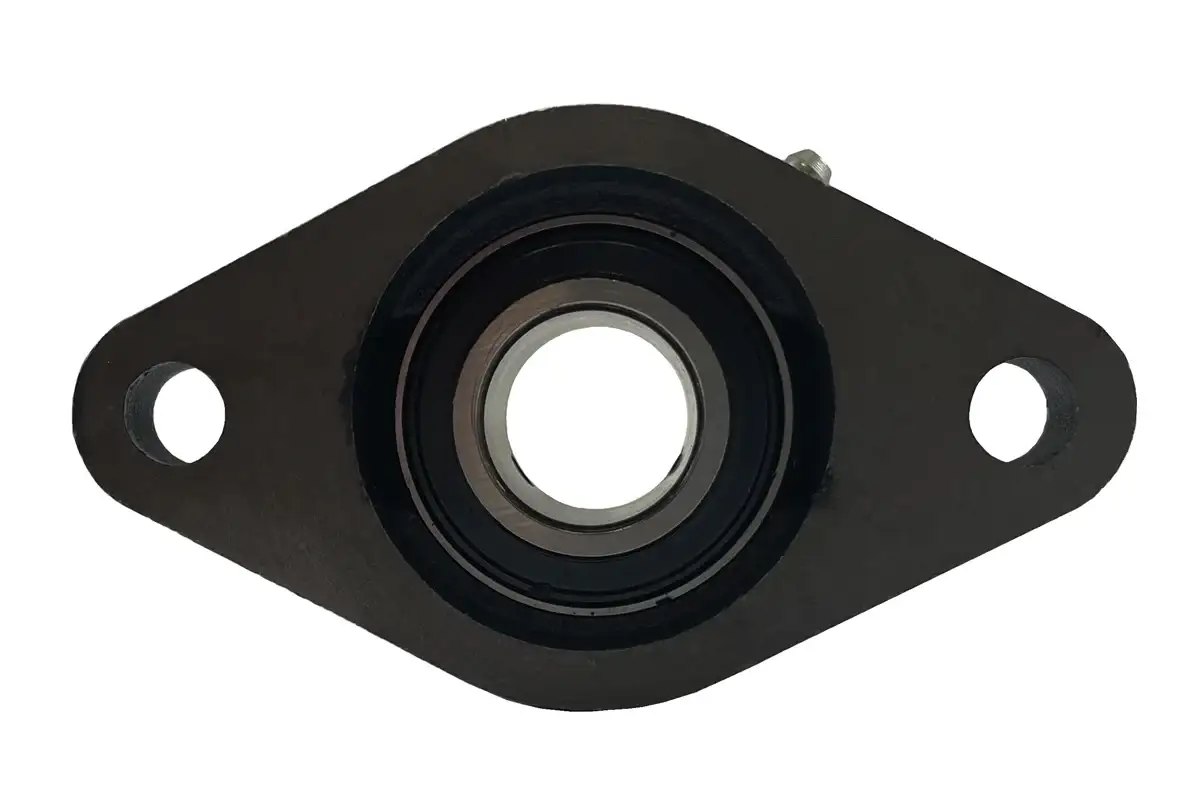

UCWFT201 Bearing | 12mm 2-Bolt Flange Bearing

UCWFT201 bearing is a 12mm bore two-bolt normal-duty flange bearing that utilizes set screws to secure to a 12mm shaft. UCWFT201 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UCWFT201 bearing with a 12mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCWFT201 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCWFT201 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCWFT201 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCWFT201 bearings, and we will be happy to assist you!

UCWFT201 Bearing Dimensions

• Part #: UCWFT 201
• Shaft Diameter (d): 12mm
• Dimension (A): 99.0mm
• Dimension (E): 76.2mm
• Dimension (I): 15.0mm
• Dimension (G): 11.0mm
• Dimension (L): 24.5mm
• Dimension (S): 10.0mm
• Dimension (B): 57.0mm
• Dimension (Z): 31.0mm
• Dimension (Bi): 27.4mm
• Dimension (N): 10.0mm
• Dimension (M): 15.9mm
• Bolt Used: M8
• Dynamic Load Rating (kN): 9.55
• Static Load Rating (kN): 4.78
• Bearing Insert: UCW 201
• Housing Number: WFT 203
• Weight (kg): 0.4
