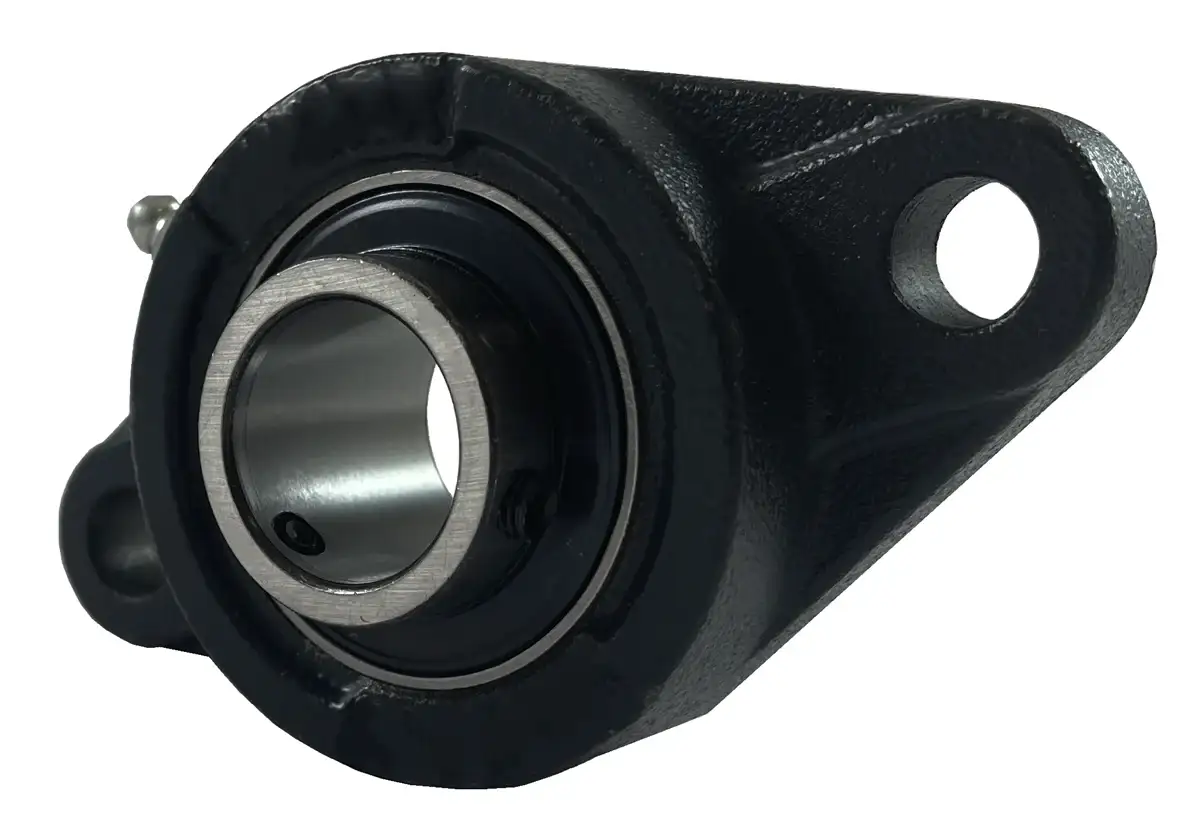

UCWFT201-8 Bearing | 1/2" 2-Bolt Flange Bearing

UCWFT201-8 bearing is a 1/2" bore two-bolt normal-duty flange bearing that utilizes set screws to secure to a 1/2" shaft. UCWFT201-8 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UCWFT201-8 bearing with a 1/2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCWFT201-8 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCWFT201-8 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCWFT201-8 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCWFT201-8 bearings, and we will be happy to assist you!

UCWFT201-8 Bearing Dimensions

• Part #: UCWFT 201-8
• Shaft Diameter (d): 1/2"
• Dimension (A): 3.88"
• Dimension (E): 3.000"
• Dimension (I): 0.59"
• Dimension (G): 0.44"
• Dimension (L): 0.96"
• Dimension (S): 0.39"
• Dimension (B): 2.25"
• Dimension (Z): 1.22"
• Dimension (Bi): 1.0787"
• Dimension (N): 0.3937"
• Dimension (M): 0.6260"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 2,147
• Static Load Rating (LBS): 1,075
• Bearing Insert: UCW 201-8
• Housing Number: WFT 203
• Weight (LBS): 0.9
