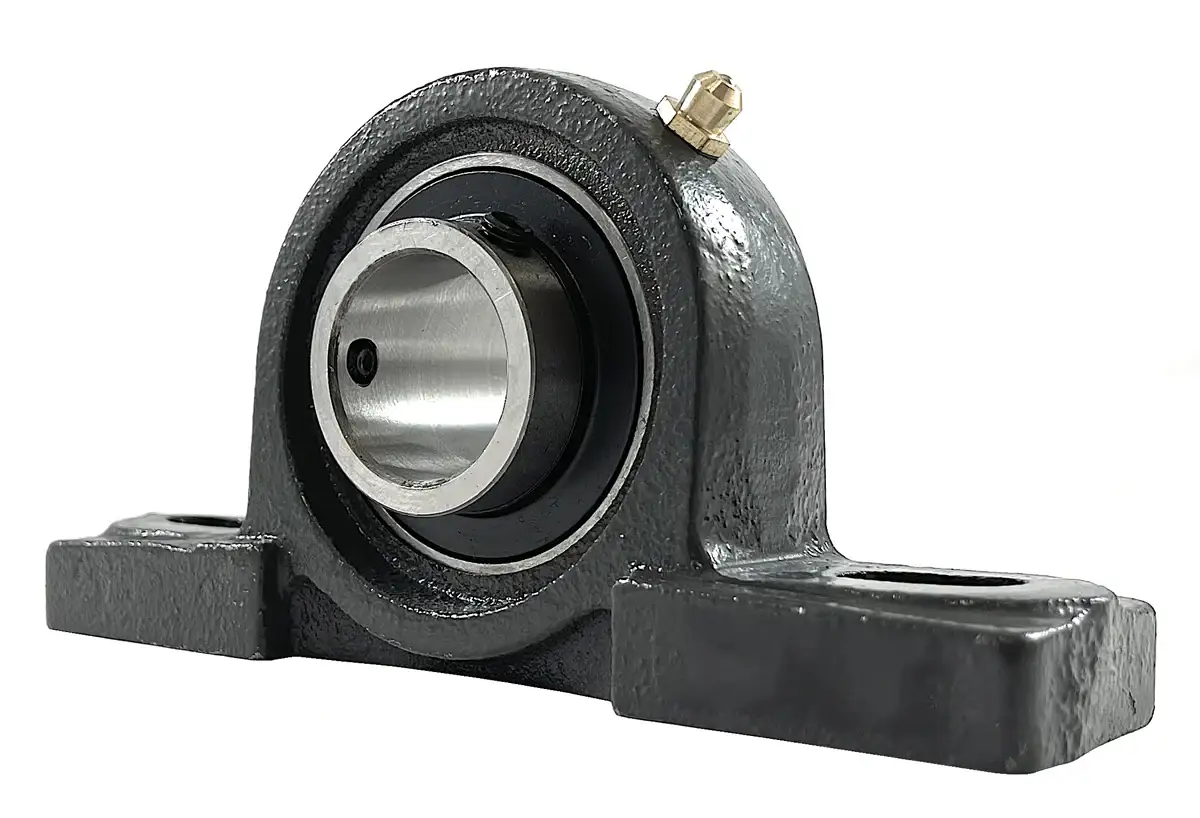

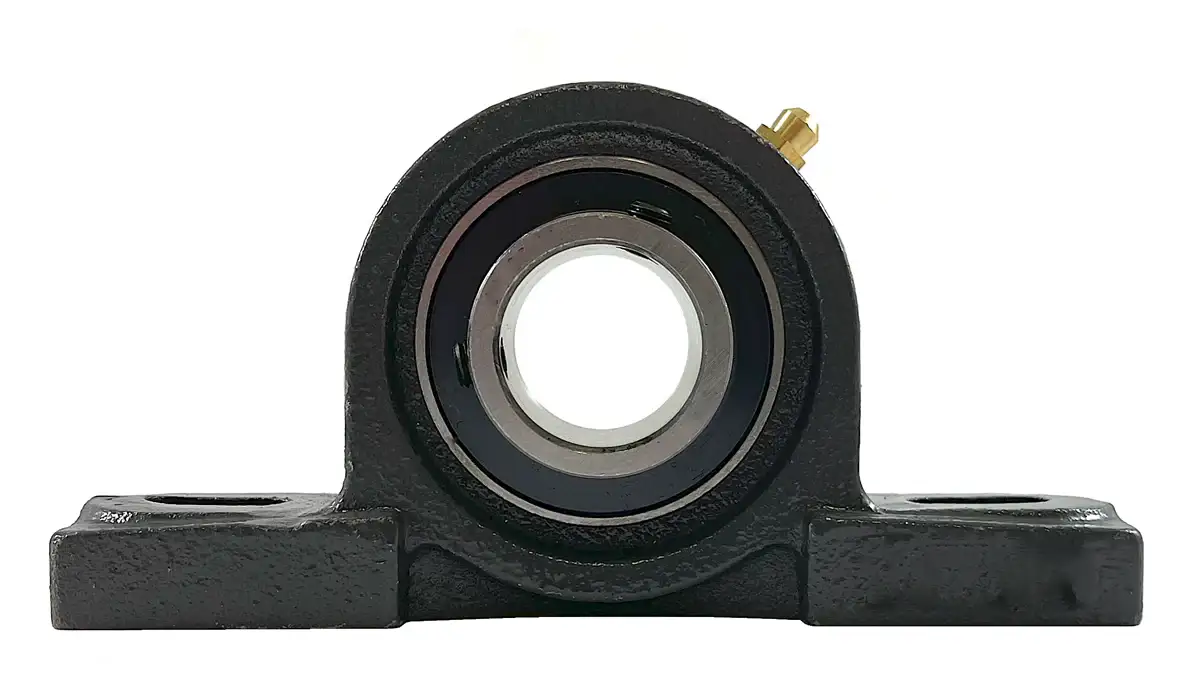

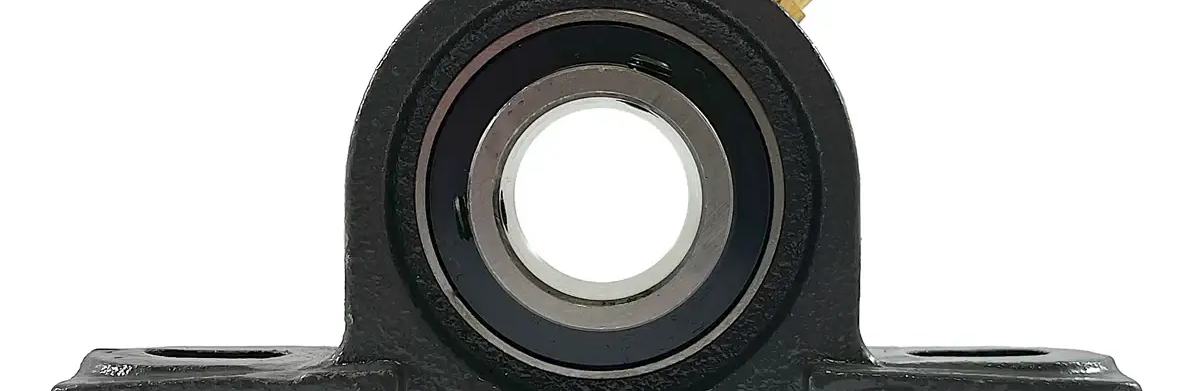

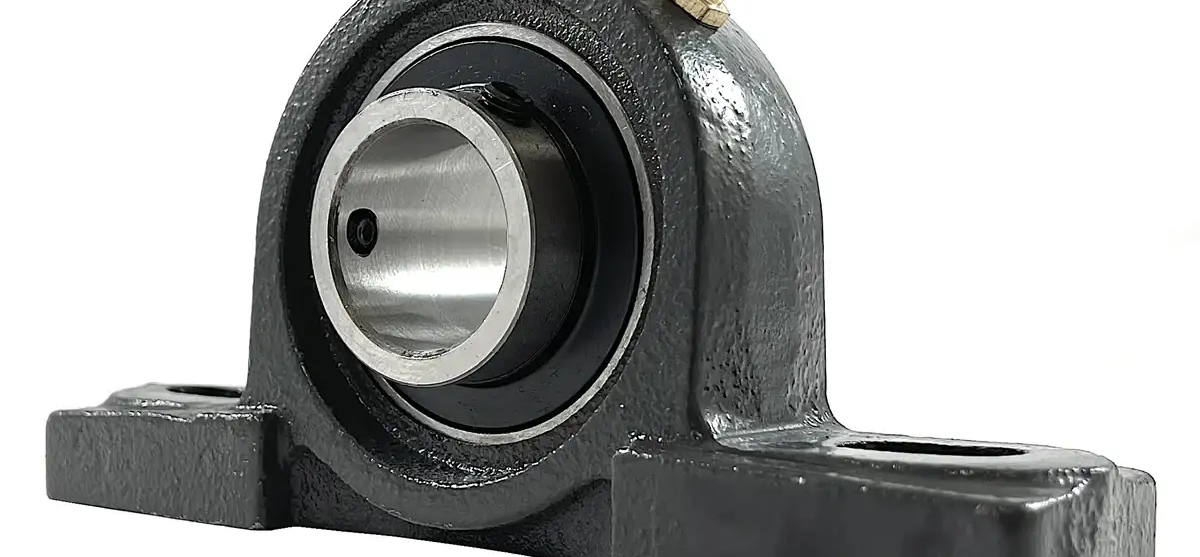

UCP214 Bearing | 70mm 2-Bolt Pillow Block Bearing

UCP214 bearing is a two-bolt normal duty pillow block bearing with a 70mm bore. It utilizes set-screws for locking onto a 70mm shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our UCP214 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCP214 pillow block bearings are utilized in a wide range of applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this UCP214 bearing is directly interchangeable with other brands. For further information or to get a quote on our UCP214 bearings contact our customer support team and we will be happy to assist you!

UCP214 Bearing Dimensions

• Part #: UCP 214
• Shaft Diameter (d): 70mm
• Dimension (H): 76.2mm
• Dimension (A): 286.0mm
• Dimension (E): 203.0mm
• Dimension (B): 83.0mm
• Dimension (S2): 41.0mm
• Dimension (S1): 20.0mm
• Dimension (G): 32.0mm
• Dimension (W): 154.0mm
• Dimension (Bi): 74.6mm
• Dimension (N): 30.2mm
• Dimension (M): 44.4mm
• Bolt Used: M18
• Dynamic Load Rating (kN): 62.19
• Static Load Rating (kN): 43.90
• Bearing Insert: UC 214
• Housing Number: PX 13
• Weight (kg): 6.5
