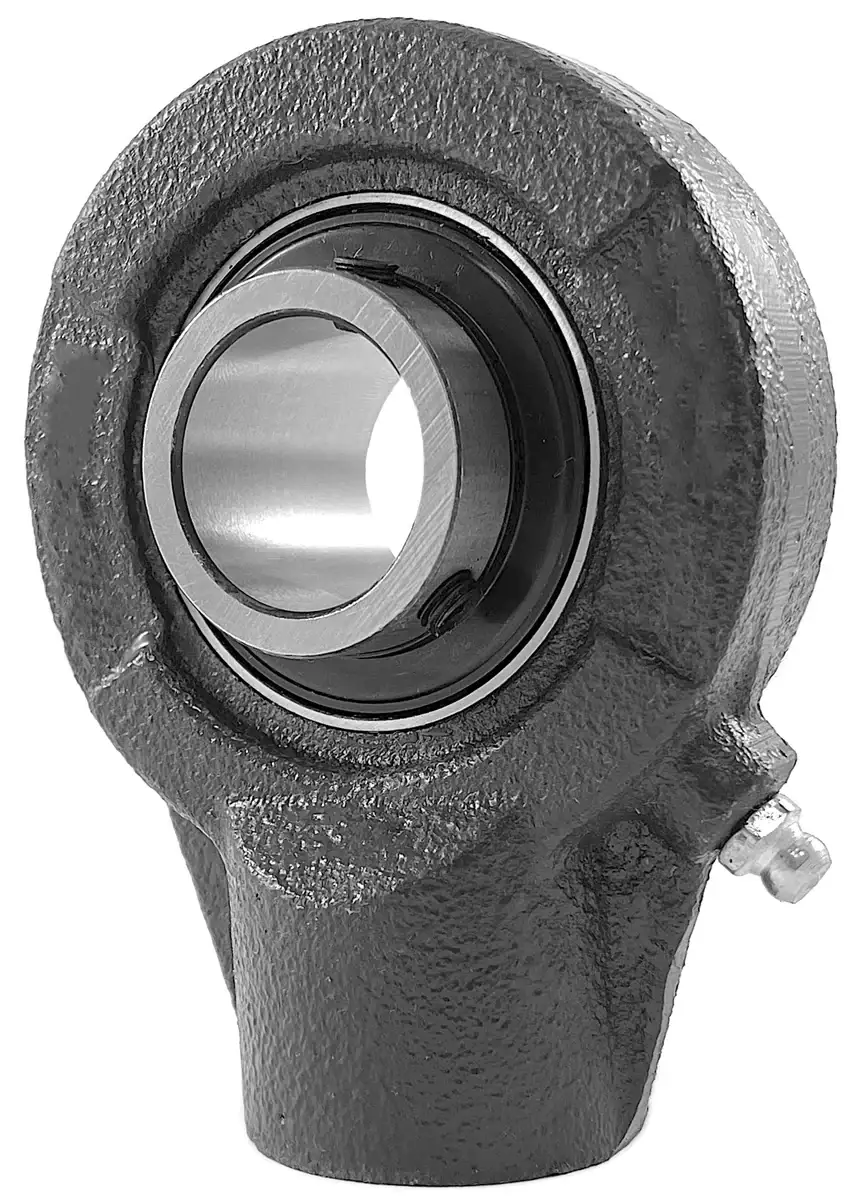

UCHA211 Bearing | 55mm Hanger Bearing

UCHA211 bearing is a 55mm bore normal-duty hanger bearing that utilizes set screws to secure to a 55mm shaft. UCHA211 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UCHA211 bearing with a 55mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCHA211 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. Our UCHA211 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCHA211 bearings, and we will be happy to assist you!

UCHA211 Hanger Bearing Dimensions

• Part #: UCHA211
• Shaft Diameter (d): 55mm
• Dimension (A): 142.0mm
• Dimension (W): 173.0mm
• Dimension (C): 9.0mm
• Dimension (H): 102.0mm
• Dimension (L): 60.0mm
• Dimension (D): 28.0mm
• Dimension (K): PF 1-1/4
• Dimension (Bi): 55.6mm
• Dimension (N): 25.4mm
• Dimension (M): 33.4mm
• Dynamic Load Rating (kN): 47.69
• Static Load Rating (kN): 33.43

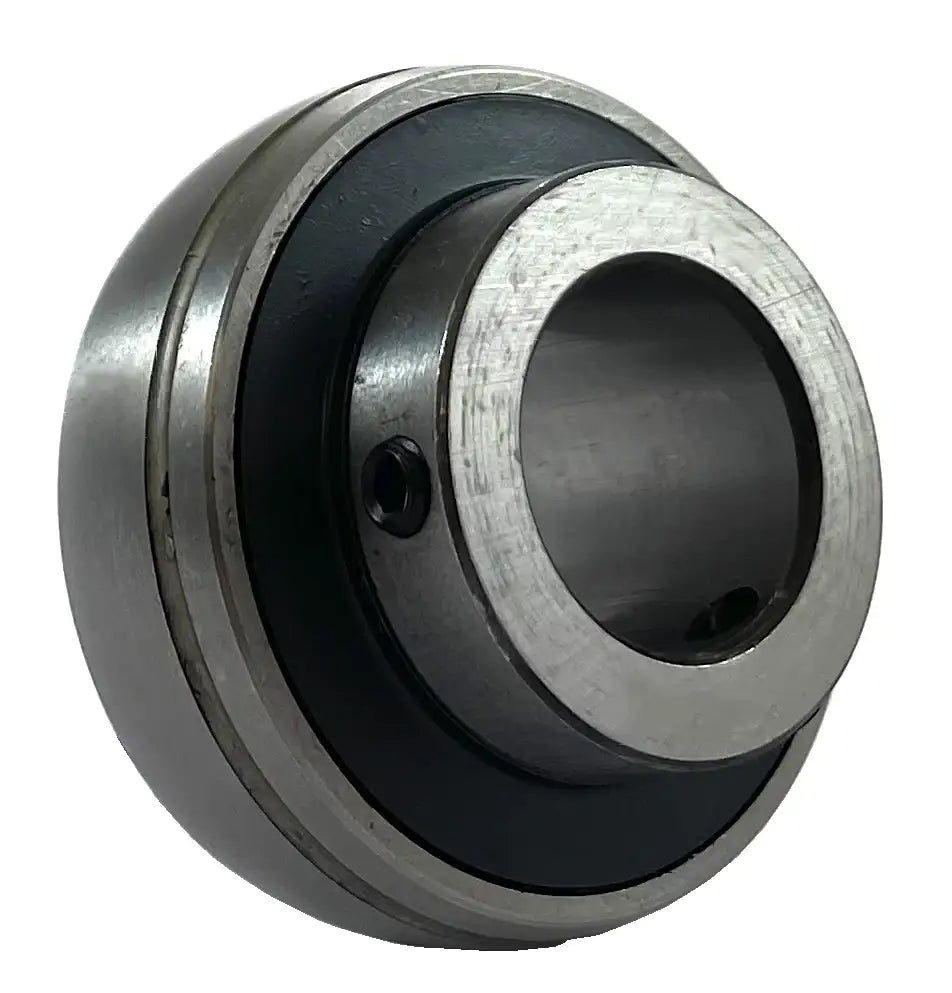

• Bearing Insert: UCX 11-34
• Housing Number: HA 212
• Weight (kg): 3.9
