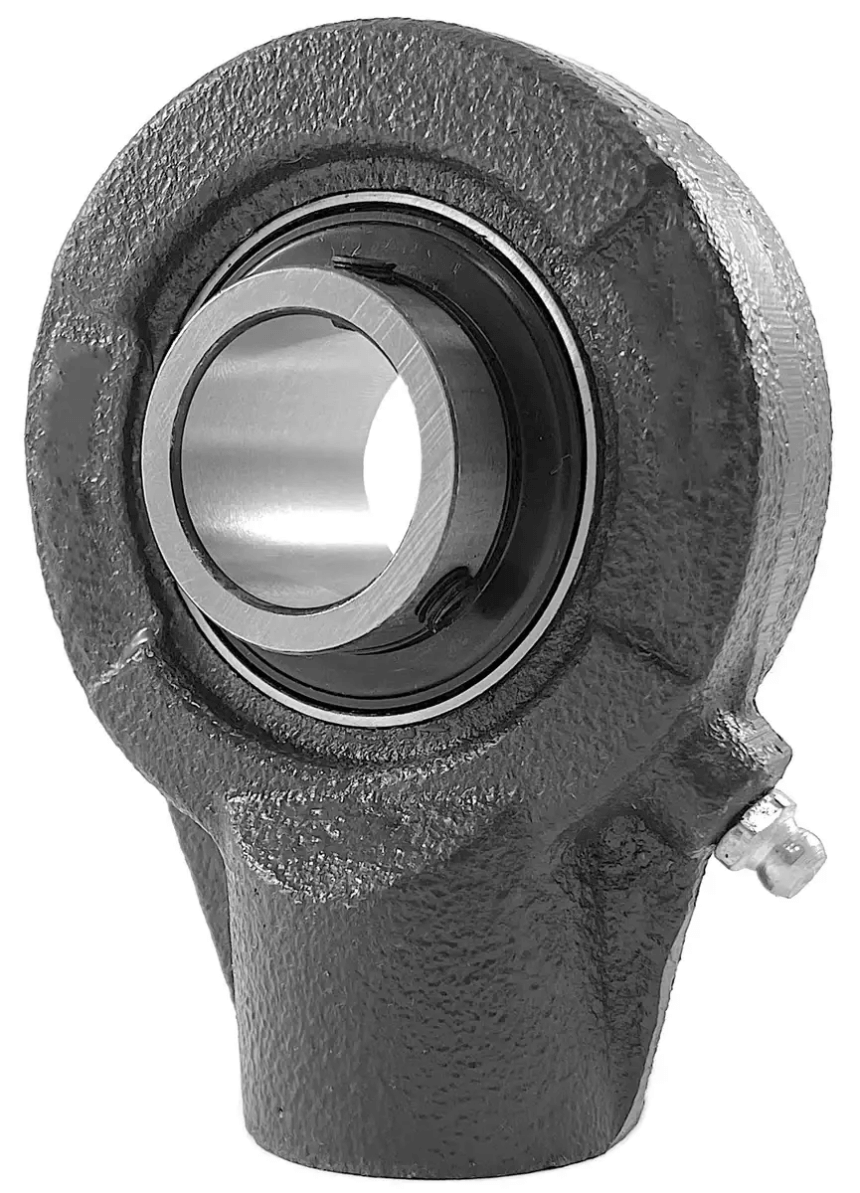

UCHA211-35 Bearing | 2-3/16" Hanger Bearing

UCHA211-35 bearing is a 2-3/16" bore normal-duty hanger bearing that utilizes set screws to secure to a 2-3/16" shaft. UCHA211-35 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UCHA211-35 bearing with a 2-3/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCHA211-35 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. Our UCHA211-35 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCHA211-35 bearings, and we will be happy to assist you!

UCHA211-35 Hanger Bearing Dimensions

• Part #: UCHA211-35
• Shaft Diameter (d): 2-3/16"
• Dimension (A): 5.59"
• Dimension (W): 6.81"
• Dimension (C): 0.35"
• Dimension (H): 4.02"
• Dimension (L): 2.36"
• Dimension (D): 1.10"
• Dimension (K): PF 1-1/4
• Dimension (Bi): 2.1890"
• Dimension (N): 1.0000"
• Dimension (M): 1.3150"
• Dynamic Load Rating (LBS): 10,720
• Static Load Rating (LBS): 7,516
• Bearing Insert: UC 211-35
• Housing Number: HA 212
• Weight (LBS): 8.5
