UCFX20-64 bearing is a 4" bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 4" shaft. UCFX20-64 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCFX20-64 bearing with a 4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFX20-64 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFX20-64 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFX20-64 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFX20-64 bearings, and we will be happy to assist you!

UCFX20-64 Bearing Dimensions

• Part #: UCFX 20-64
• Shaft Diameter (d): 4"
• Dimension (A): 10.56"
• Dimension (E): 8.313"
• Dimension (I): 2.31"
• Dimension (G): 1.13"
• Dimension (L): 3.81"
• Dimension (S): 1.13"
• Dimension (Z): 5.00"
• Dimension (Bi): 4.6260"
• Dimension (N): 1.9370"
• Dimension (M): 2.3740"
• Bolt Used: 1
• Dynamic Load Rating (LBS): 29,339
• Static Load Rating (LBS): 23,141

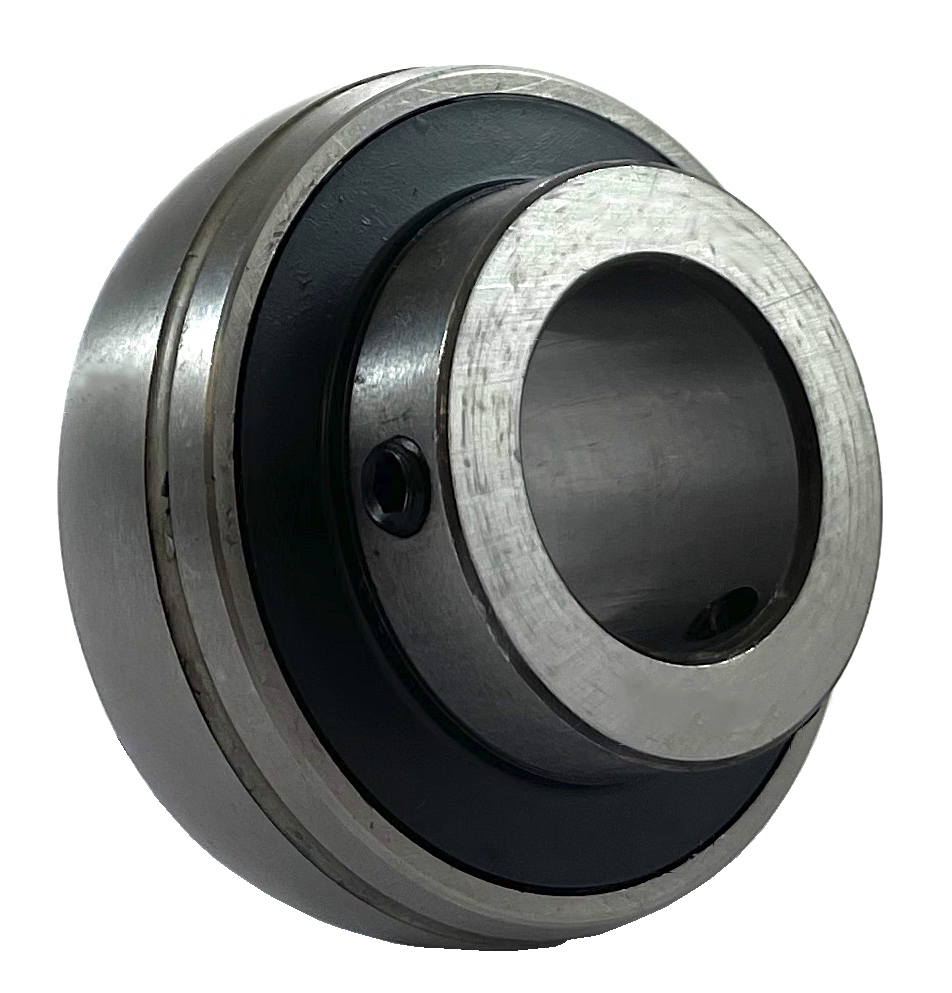

• Bearing Insert: UCX 20-64
• Housing Number: FX 20
• Weight (LBS): 42.5
