UCFX17-56 Bearing | 3-1/2" 4-Bolt Flange Bearing

UCFX17-56 bearing is a 3-1/2" bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 3-1/2" shaft. UCFX17-56 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCFX17-56 bearing with a 3-1/2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFX17-56 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFX17-56 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFX17-56 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFX17-56 bearings, and we will be happy to assist you!

UCFX17-56 Bearing Dimensions

• Part #: UCFX 17-56
• Shaft Diameter (d): 3-1/2"
• Dimension (A): 8.44"
• Dimension (E): 6.750"
• Dimension (I): 1.56"
• Dimension (G): 0.94"
• Dimension (L): 2.75"
• Dimension (S): 0.79"
• Dimension (Z): 3.81"
• Dimension (Bi): 3.7795"
• Dimension (N): 1.5630"
• Dimension (M): 2.2165"
• Bolt Used: 11/16
• Dynamic Load Rating (LBS): 21,546
• Static Load Rating (LBS): 16,329

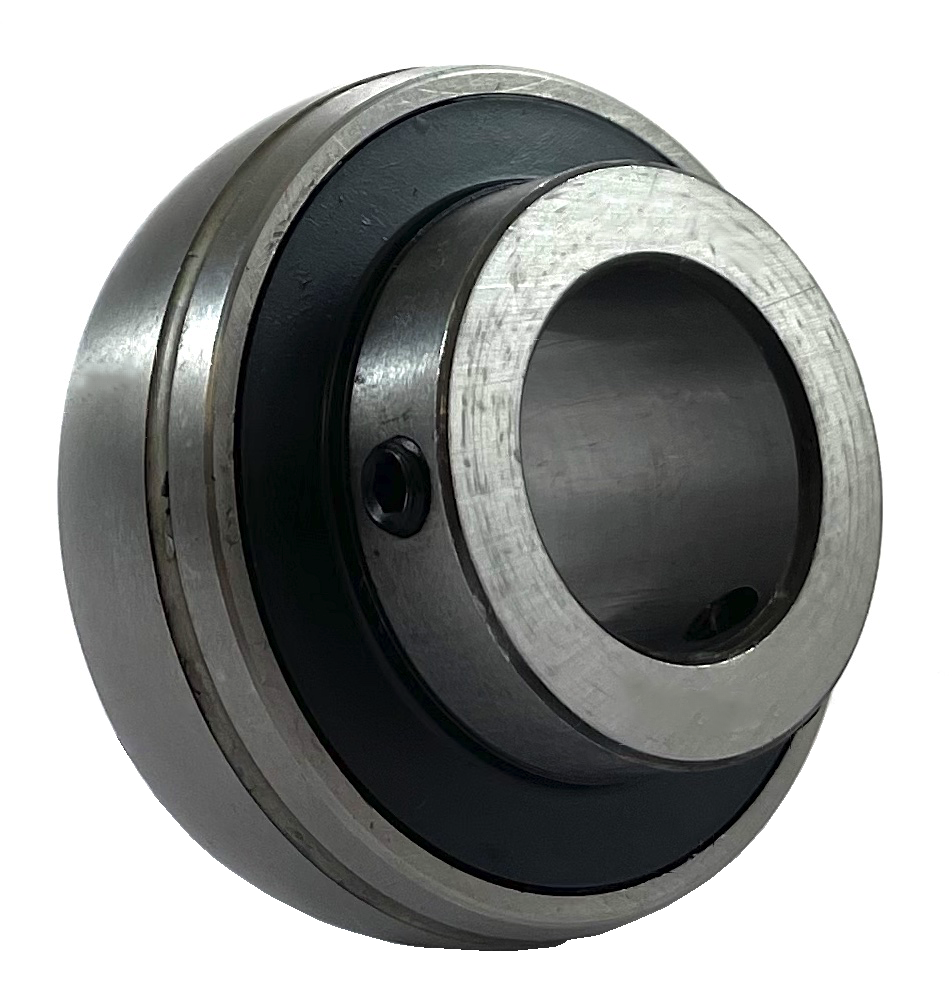

• Bearing Insert: UCX 17-56
• Housing Number: FX 17
• Weight (LBS): 33.0
