UCFX15-48 bearing is a 3" bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 3" shaft. UCFX15-48 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCFX15-48 bearing with a 3" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFX15-48 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFX15-48 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFX15-48 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFX15-48 bearings, and we will be happy to assist you!

UCFX15-48 Bearing Dimensions

• Part #: UCFX 15-48
• Shaft Diameter (d): 3"
• Dimension (A): 7.75"
• Dimension (E): 6.000"
• Dimension (I): 1.56"
• Dimension (G): 0.94"
• Dimension (L): 2.69"
• Dimension (S): 0.79"
• Dimension (Z): 3.50"
• Dimension (Bi): 3.2520"
• Dimension (N): 1.3110"
• Dimension (M): 1.9409"
• Bolt Used: 11/16
• Dynamic Load Rating (LBS): 16,325
• Static Load Rating (LBS): 11,992

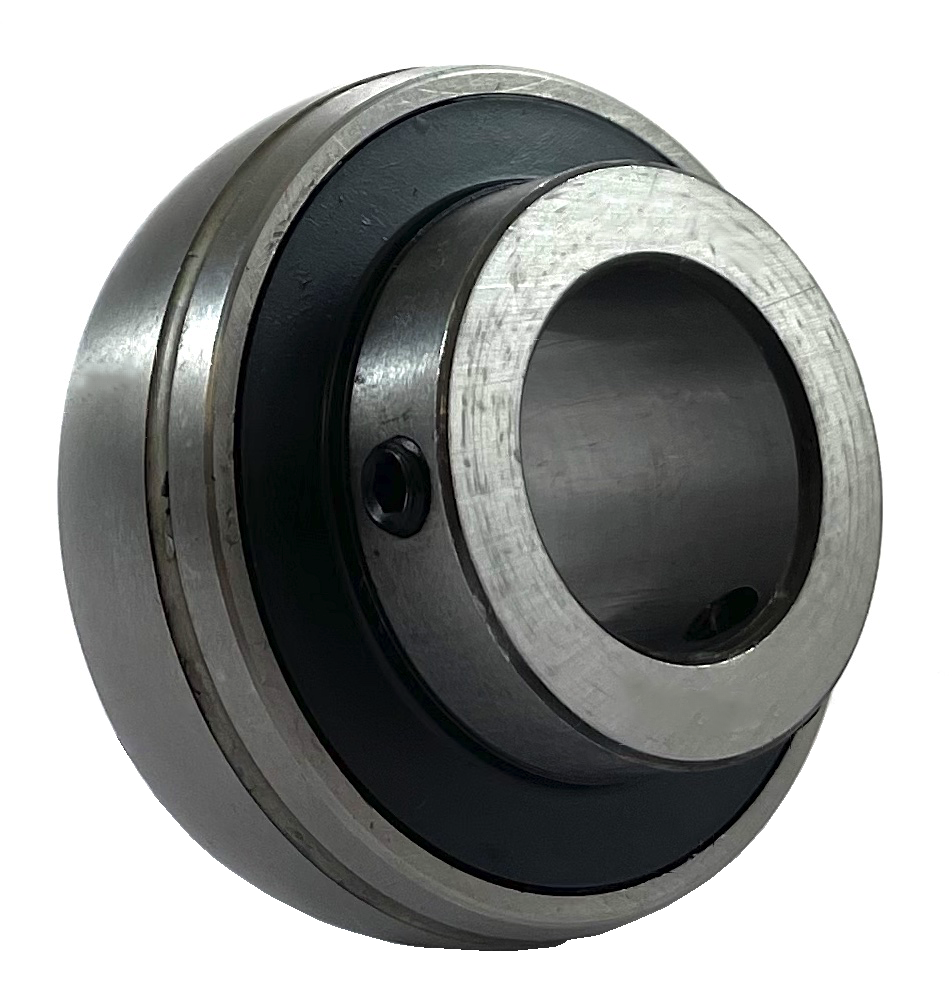

• Bearing Insert: UCX 15-48
• Housing Number: FX 15
• Weight (LBS): 24.6
