UCFX13-40 Bearing | 2-1/2" 4-Bolt Flange Bearing

UCFX13-40 bearing is a 2-1/2" bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 2-1/2" shaft. UCFX13-40 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCFX13-40 bearing with a 2-1/2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFX13-40 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFX13-40 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFX13-40 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFX13-40 bearings, and we will be happy to assist you!

UCFX13-40 Bearing Dimensions

• Part #: UCFX 13-40
• Shaft Diameter (d): 2-1/2"
• Dimension (A): 7.38"
• Dimension (E): 5.875"
• Dimension (I): 1.34"
• Dimension (G): 0.81"
• Dimension (L): 2.31"
• Dimension (S): 0.71"
• Dimension (Z): 3.09"
• Dimension (Bi): 2.9370"
• Dimension (N): 1.1890"
• Dimension (M): 1.7480"
• Bolt Used: 9/16
• Dynamic Load Rating (LBS): 13,981
• Static Load Rating (LBS): 9,869

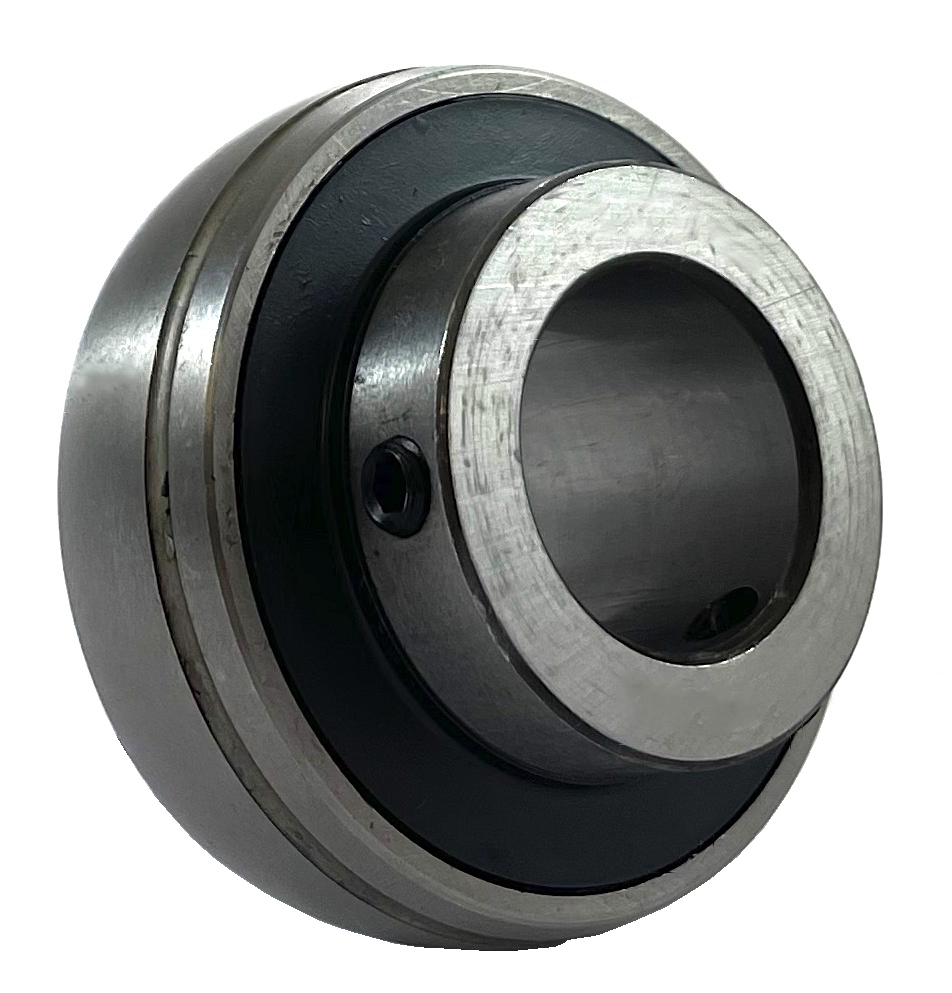

• Bearing Insert: UCX 13.40
• Housing Number: FX 13
• Weight (LBS): 17.2
