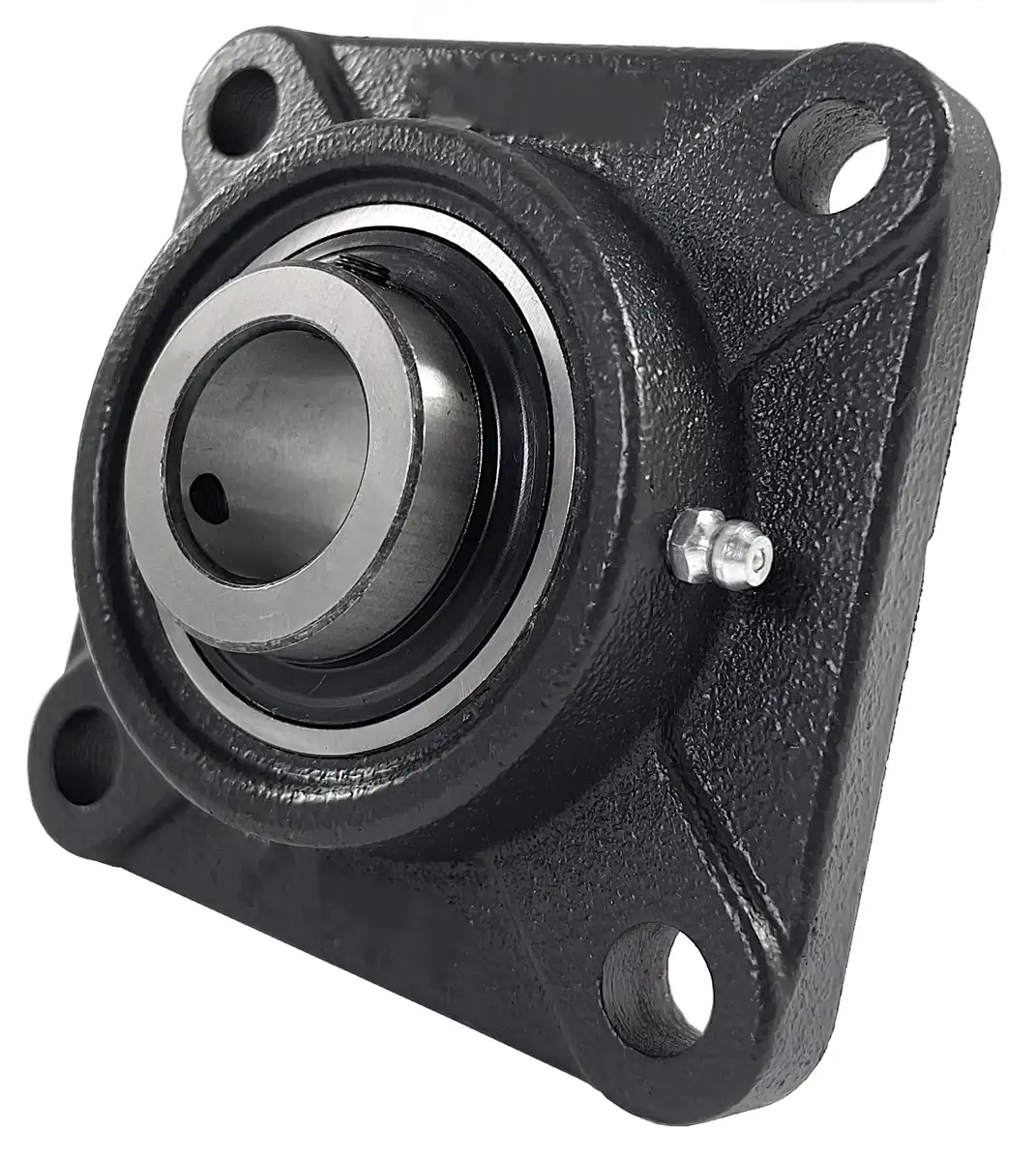

UCFX12-39 Bearing | 2-7/16" 4-Bolt Flange Bearing

UCFX12-39 bearing is a 2-7/16" bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 2-7/16" shaft. UCFX12-39 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCFX12-39 bearing with a 2-7/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFX12-39 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFX12-39 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFX12-39 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFX12-39 bearings, and we will be happy to assist you!

UCFX12-39 Bearing Dimensions

• Part #: UCFX 12-39
• Shaft Diameter (d): 2-7/16"
• Dimension (A): 7.38"
• Dimension (E): 5.875"
• Dimension (I): 1.19"
• Dimension (G): 0.88"
• Dimension (L): 1.97"
• Dimension (S): 0.69"
• Dimension (Z): 2.75"
• Dimension (Bi): 2.5630"
• Dimension (N): 1.0000"
• Dimension (M): 1.5630"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 12,859
• Static Load Rating (LBS): 8,994
• Bearing Insert: UCX 12-39
• Housing Number: F 213
• Weight (LBS): 15.8
