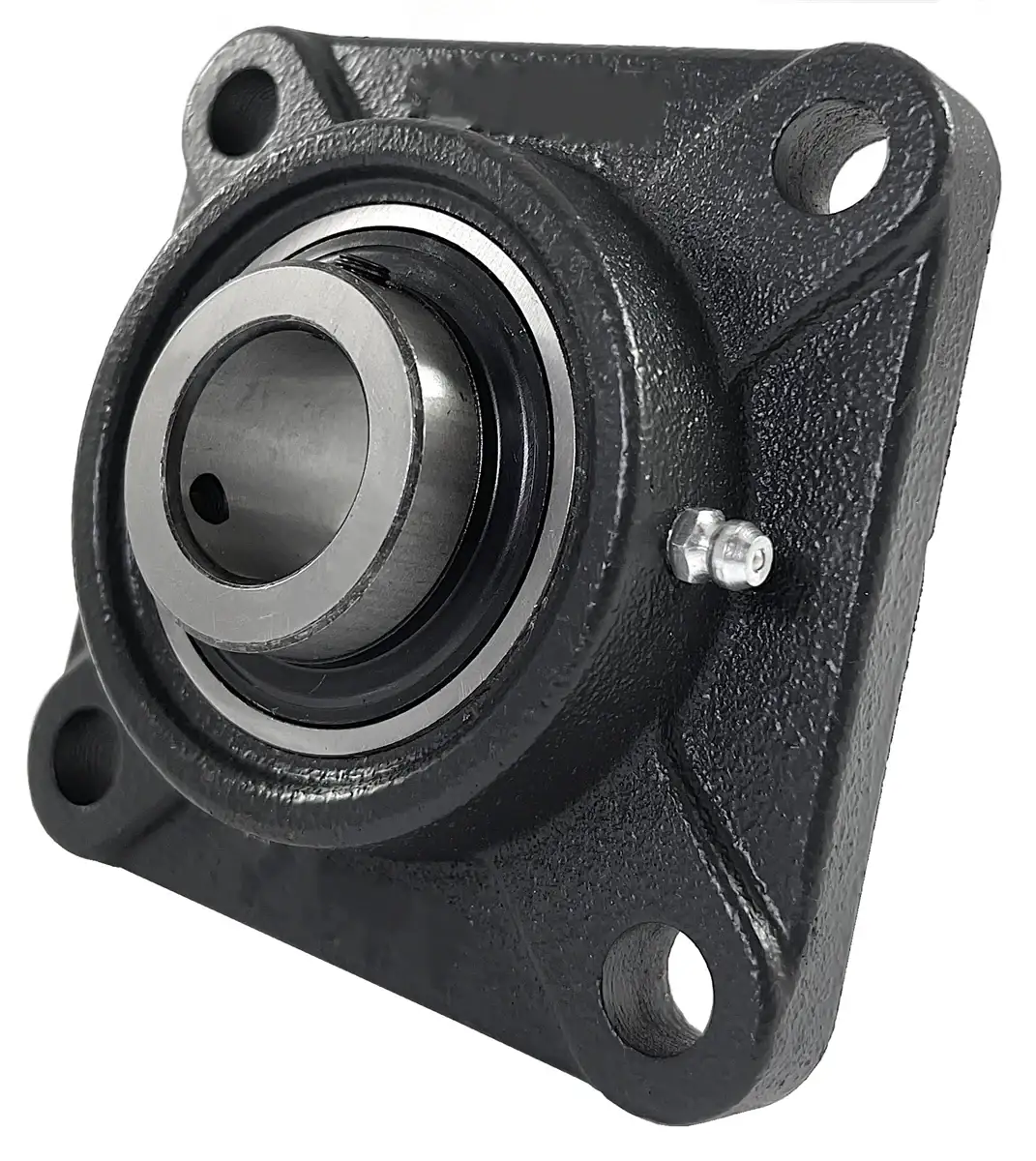

UCFX07-22 Bearing | 1-3/8" 4-Bolt Flange Bearing

UCFX07-22 bearing is a 1-3/8" bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 1-3/8" shaft. UCFX07-22 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCFX07-22 bearing with a 1-3/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFX07-22 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFX07-22 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFX07-22 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFX07-22 bearings, and we will be happy to assist you!

UCFX07-22 Bearing Dimensions

• Part #: UCFX 07-22
• Shaft Diameter (d): 1-3/8"
• Dimension (A): 5.13"
• Dimension (E): 4.000"
• Dimension (I): 0.83"
• Dimension (G): 0.63"
• Dimension (L): 1.44"
• Dimension (S): 0.56"
• Dimension (Z): 2.00"
• Dimension (Bi): 1.9370"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 6,634
• Static Load Rating (LBS): 4,079
• Bearing Insert: UCX 07-22
• Housing Number: F 208
• Weight (LBS): 5.7
