UCFT207-23 Bearing | 1-7/16" 2-Bolt Flange Bearing

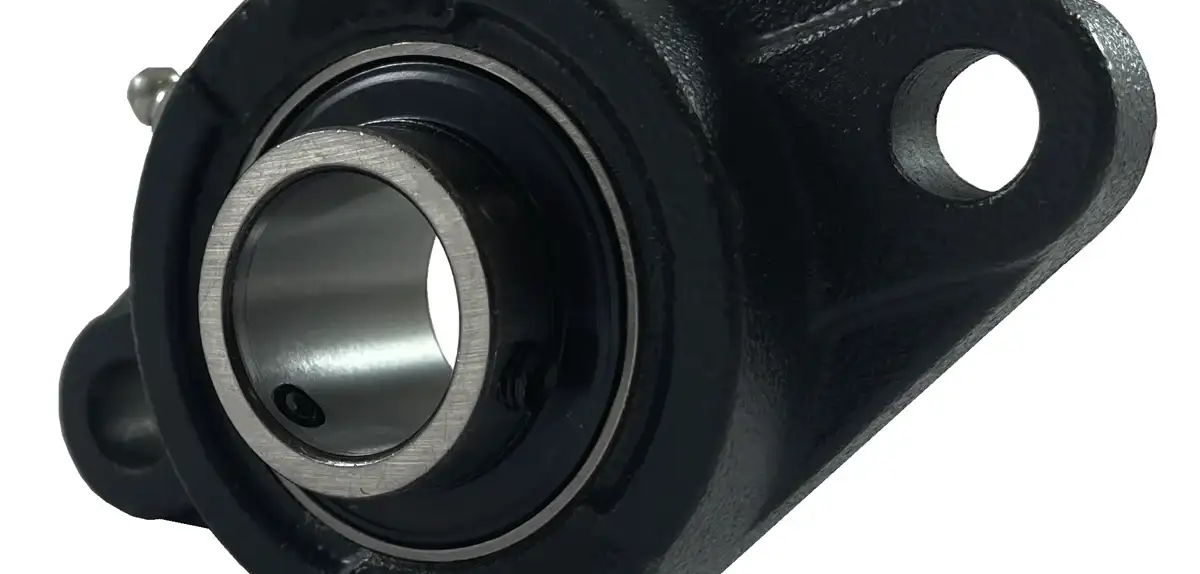

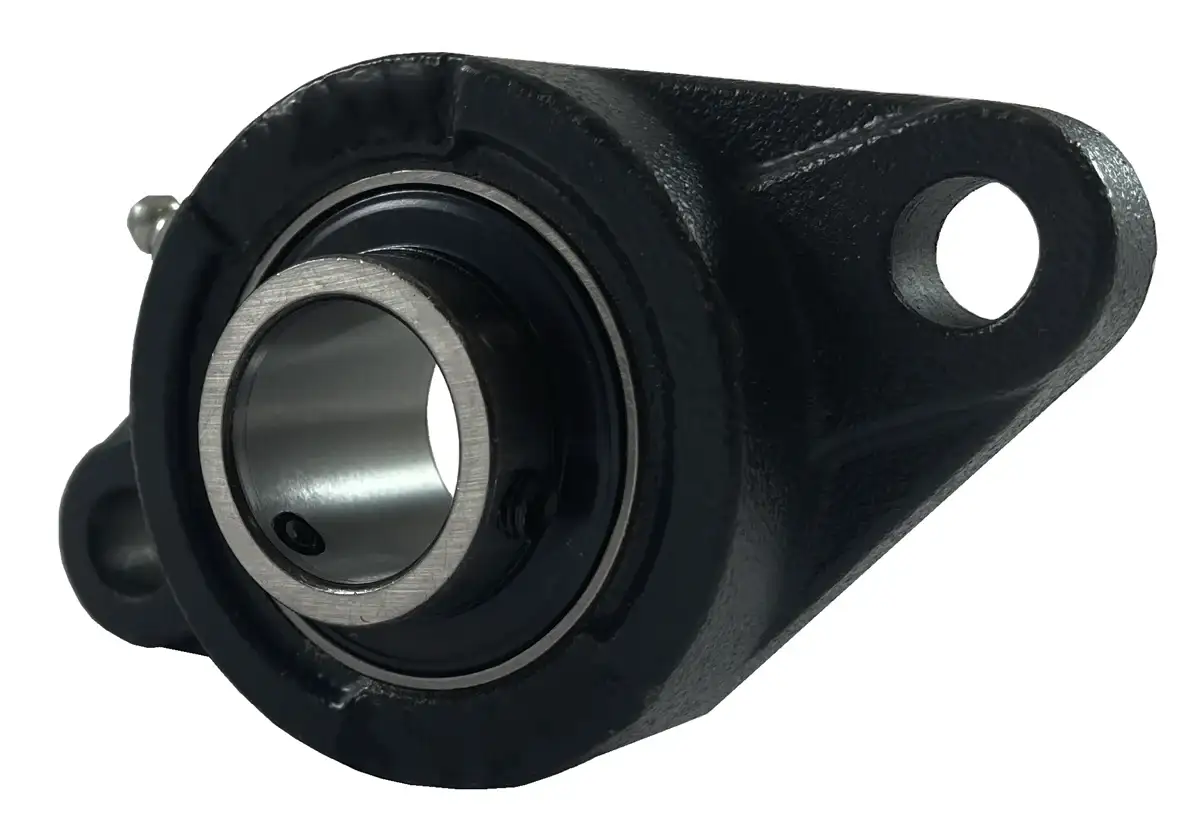

UCFT207-23 bearing is a 1-7/16" bore two-bolt normal-duty flange bearing that utilizes set screws to secure to a 1-7/16" shaft. UCFT207-23 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UCFT207-23 bearing with a 1-7/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFT207-23 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFT207-23 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFT207-23 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFT207-23 bearings, and we will be happy to assist you!

UCFT207-23 Bearing Dimensions

• Part #: UCFT 207-23
• Shaft Diameter (d): 1-7/16"
• Dimension (A): 6.13"
• Dimension (E): 5.125"
• Dimension (I): 0.75"
• Dimension (G): 0.56"
• Dimension (L): 1.34"
• Dimension (S): 0.51"
• Dimension (B): 3.75"
• Dimension (Z): 1.75"
• Dimension (Bi): 1.6890"
• Dimension (N): 0.6890"
• Dimension (M): 1.0000"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: UC 207-23
• Housing Number: FT 207
• Weight (LBS): 2.9
