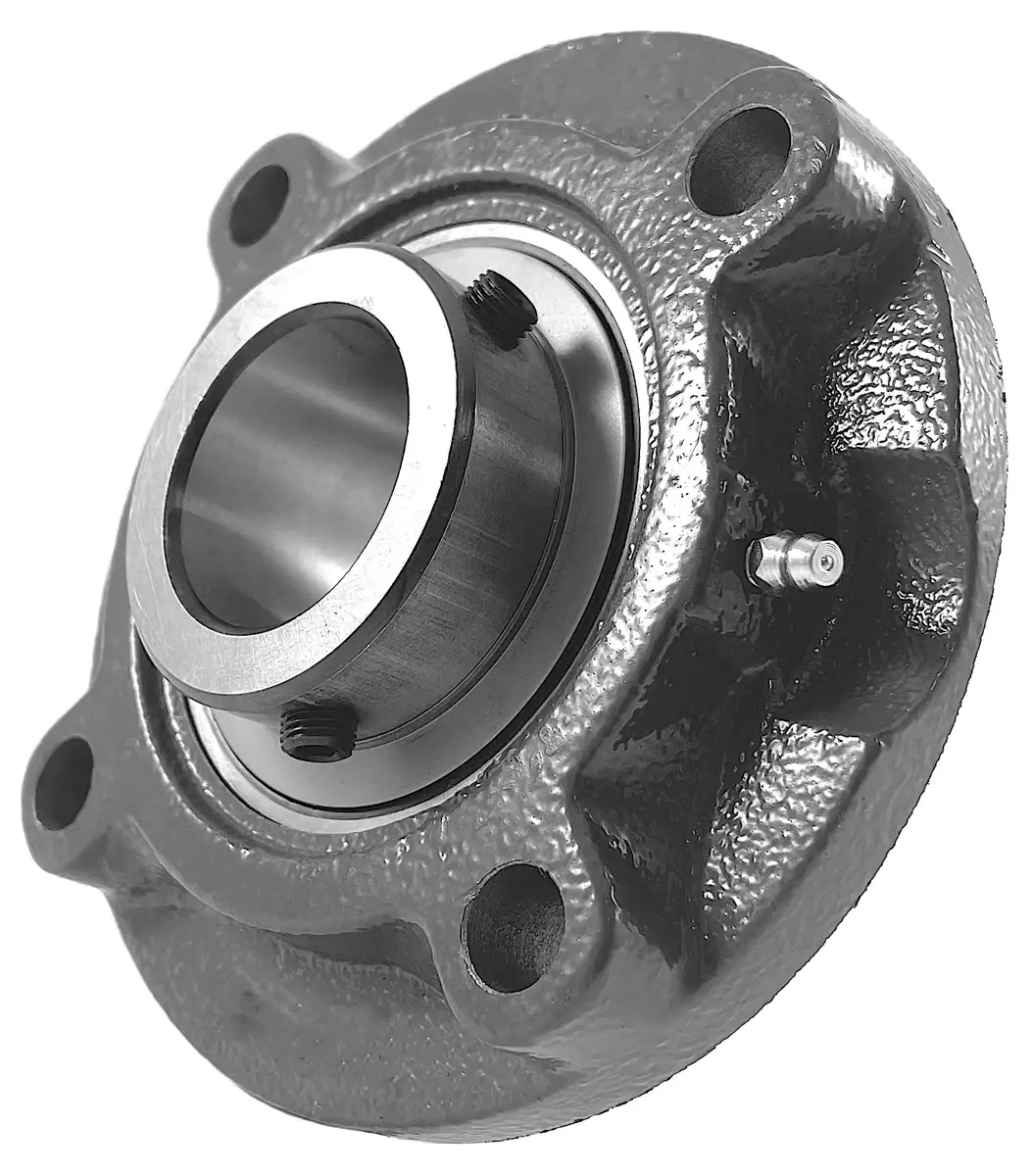

UCFCSX11 Bearing | 55mm 4-Bolt Flange Bearing

UCFCSX11 bearing is a 55mm bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 55mm shaft and has an inch based housing. UCFCSX11 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UCFCSX11 bearing with a 55mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFCSX11 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFCSX11 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFCSX11 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFCSX11 bearings, and we will be happy to assist you!

UCFCSX11 Bearing Dimensions

• Part #: UCFCSX11
• Shaft Diameter (d): 55mm
• Dimension (A): 180.8mm
• Dimension (P): 152.4mm
• Dimension (E): 108.0mm
• Dimension (I): 4.1mm
• Dimension (S): 14.0mm
• Dimension (J): 22.1mm
• Dimension (K): 13.0mm
• Dimension (G): 25.9mm
• Dimension (F): 127.0mm
• Dimension (Z): 43.7mm
• Dimension (Bi): 65.1mm
• Dimension (N): 25.4mm
• Dimension (M): 39.7mm
• Bolt Used: M12
• Dynamic Load Rating (kN): 47.69
• Static Load Rating (kN): 33.43
• Bearing Insert: UCX 11
• Housing Number: FCS 212
• Weight (kg): 4.4
