UCFCSX10-31 Bearing | 1-15/16" 4-Bolt Flange Bearing

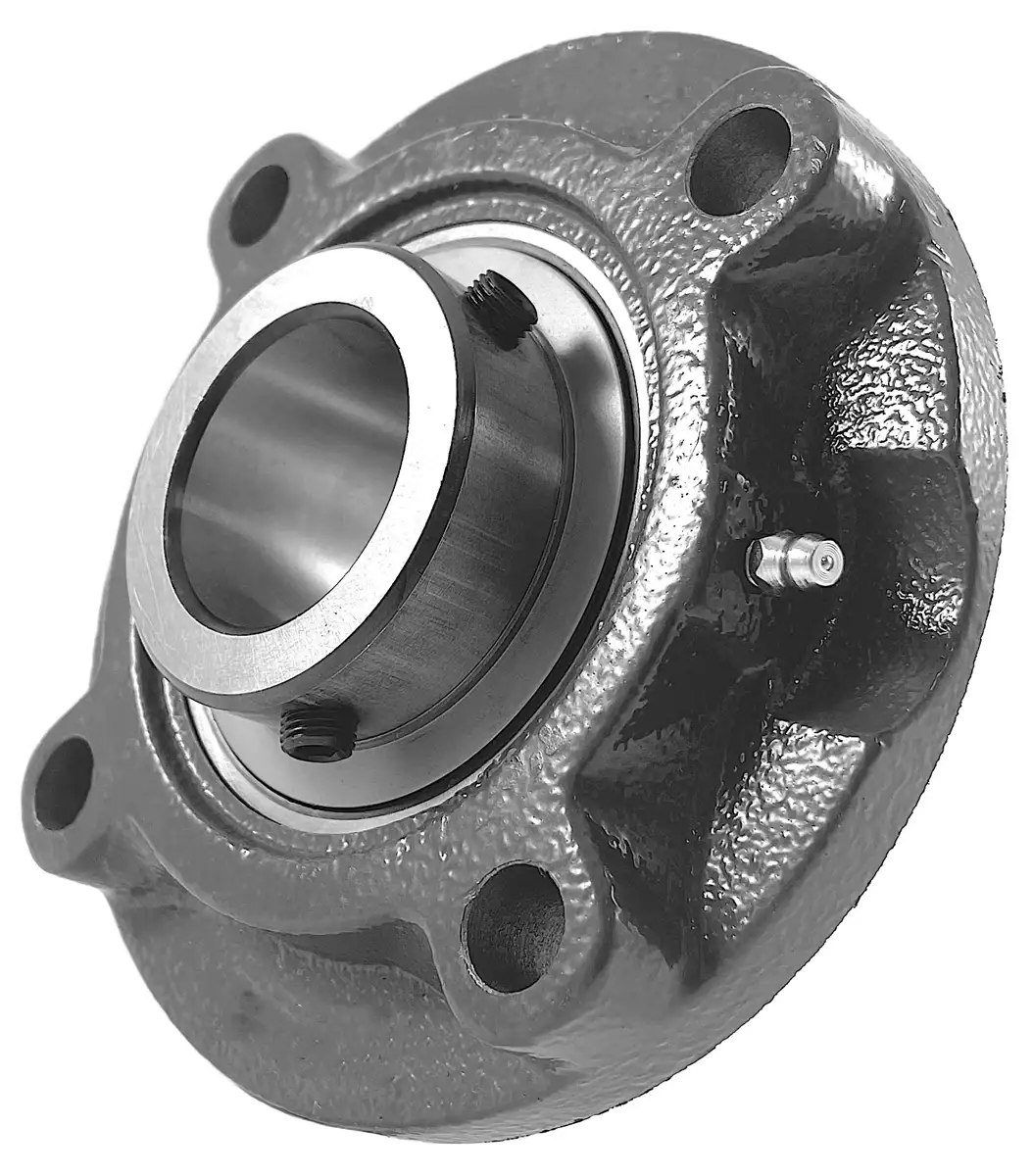

UCFCSX10-31 bearing is a 1-15/16" bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 1-15/16" shaft and has an inch based housing. UCFCSX10-31 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UCFCSX10-31 bearing with a 1-15/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFCSX10-31 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFCSX10-31 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFCSX10-31 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFCSX10-31 bearings, and we will be happy to assist you!

UCFCSX10-31 Bearing Dimensions

• Part #: UCFCSX10-31
• Shaft Diameter (d): 1-15/16"
• Dimension (A): 6.38"
• Dimension (P): 5.375"
• Dimension (E): 3.81"
• Dimension (I): 0.28"
• Dimension (S): 0.55"
• Dimension (J): 0.63"
• Dimension (K): 0.44"
• Dimension (G): 1.02"
• Dimension (F): 4.500"
• Dimension (Z): 1.59"
• Dimension (Bi): 2.1890"
• Dimension (N): 0.8740"
• Dimension (M): 1.3150"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 9,743
• Static Load Rating (LBS): 6,608

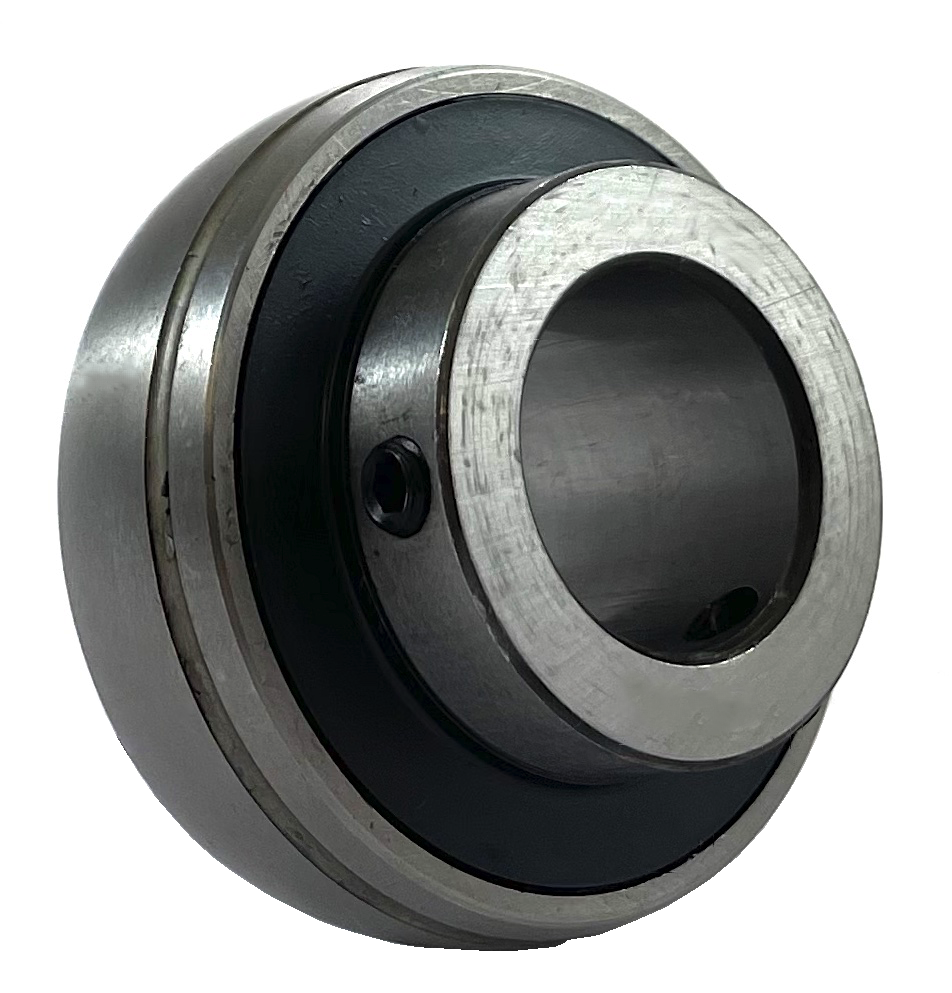

• Bearing Insert: UCX 10-31
• Housing Number: FCS 211
• Weight (LBS): 7.3
