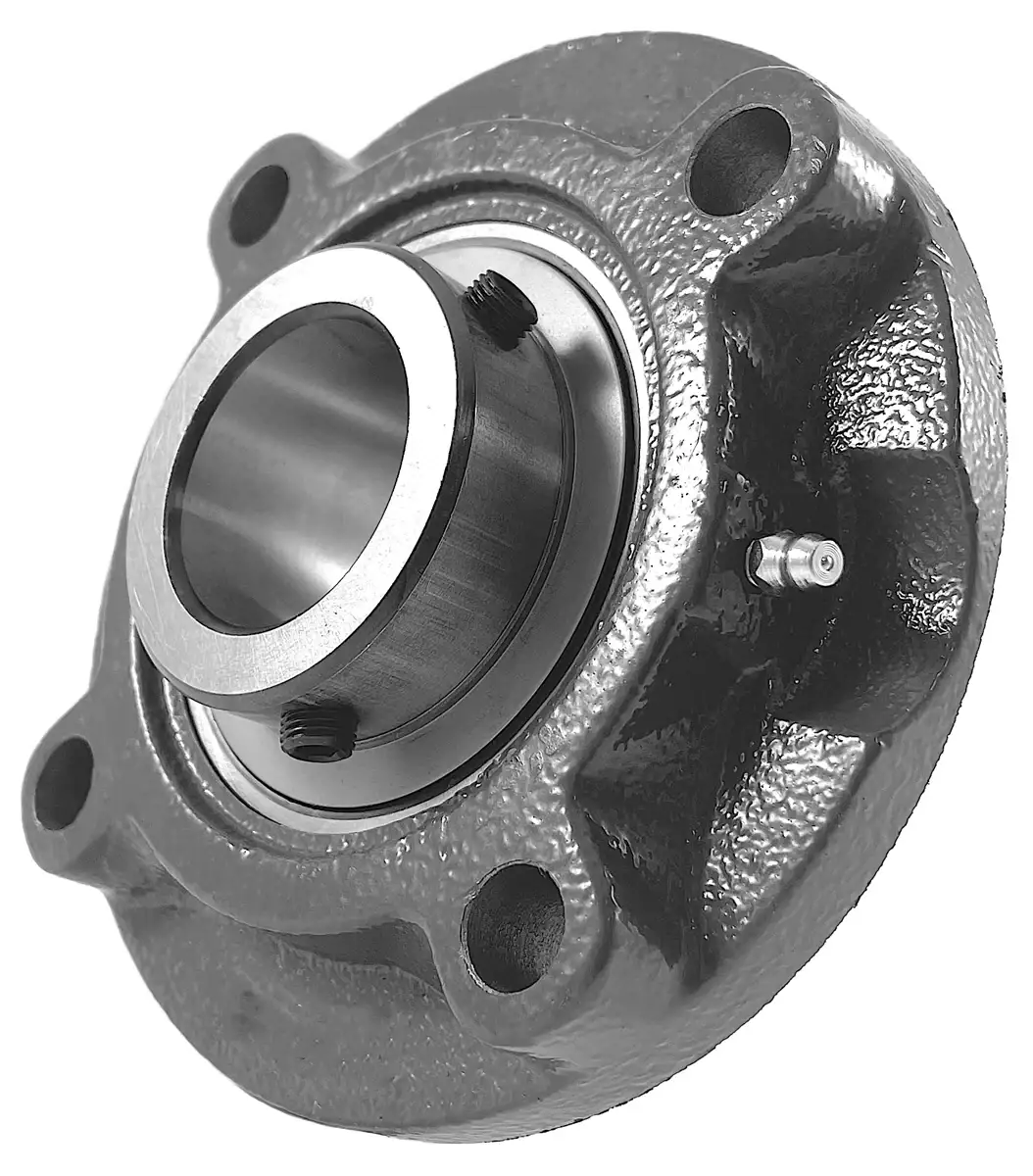

UCFCSX07-22 Bearing | 1-3/8" 4-Bolt Flange Bearing

UCFCSX07-22 bearing is a 1-3/8" bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 1-3/8" shaft and has an inch based housing. UCFCSX07-22 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UCFCSX07-22 bearing with a 1-3/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFCSX07-22 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFCSX07-22 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFCSX07-22 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFCSX07-22 bearings, and we will be happy to assist you!

UCFCSX07-22 Bearing Dimensions

• Part #: UCFCSX07-22
• Shaft Diameter (d): 1-3/8"
• Dimension (A): 5.25"
• Dimension (P): 4.375"
• Dimension (E): 3.09"
• Dimension (I): 0.35"
• Dimension (S): 0.47"
• Dimension (J): 0.44"
• Dimension (K): 0.44"
• Dimension (G): 1.02"
• Dimension (F): 3.625"
• Dimension (Z): 1.54"
• Dimension (Bi): 1.9370"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 6,634
• Static Load Rating (LBS): 4,079
• Bearing Insert: UCX 07-22
• Housing Number: FCS 208
• Weight (LBS): 4.4
