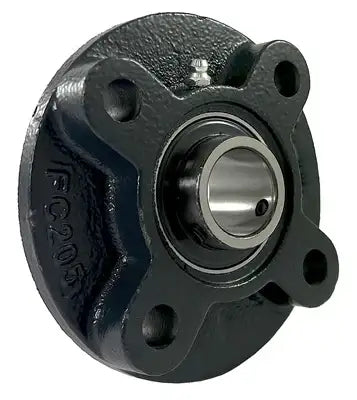

UCFC205 Bearing | 25mm 4-Bolt Flange Bearing

UCFC205 bearing is a 25mm bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 25mm shaft and has an metric based housing. UCFC205 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UCFC205 bearing with a 25mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFC205 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFC205 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFC205 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFC205 bearings, and we will be happy to assist you!

UCFC205 Bearing Dimensions

• Part #: UCFC205
• Shaft Diameter (d): 25mm
• Dimension (A): 115.0mm
• Dimension (P): 90.0mm
• Dimension (E): 63.6mm
• Dimension (I): 10.0mm
• Dimension (S): 12.0mm
• Dimension (J): 6.0mm
• Dimension (K): 7.0mm
• Dimension (G): 21.0mm
• Dimension (F): 70.0mm
• Dimension (Z): 29.8mm
• Dimension (Bi): 34.1mm
• Dimension (N): 14.3mm
• Dimension (M): 19.8mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 14.03
• Static Load Rating (kN): 8.05
• Bearing Insert: UC 205
• Housing Number: FC 205
• Weight (kg): 1.0
