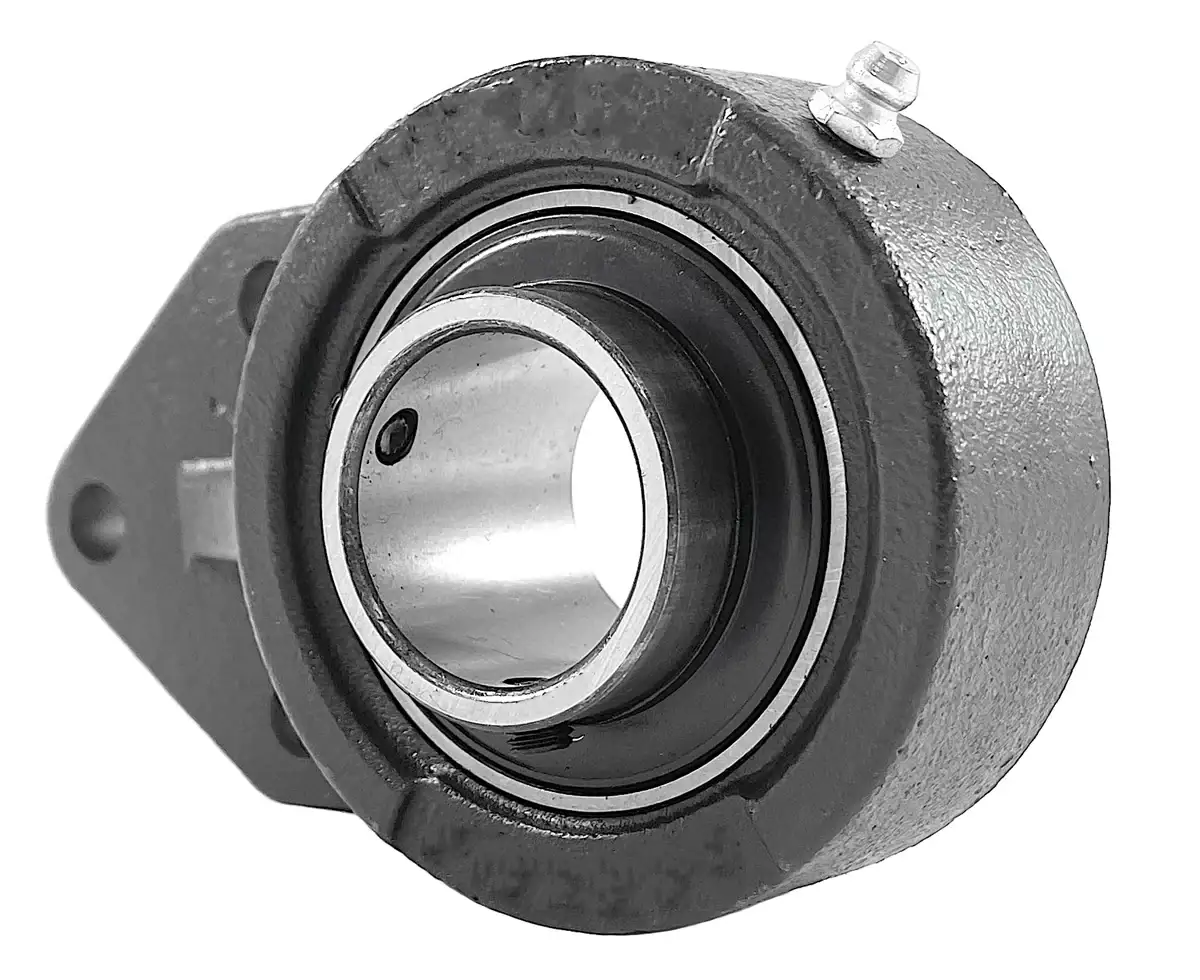

UCFBS207-22 Bearing | 1-3/8" 3-Bolt Flange Bearing

UCFBS207-22 bearing is a 1-3/8" bore three-bolt normal-duty flange bracket bearing that utilizes set screws to secure to a 1-3/8" shaft. UCFBS207-22 flange bearings are designed with an inch-based housing and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UCFBS207-22 bearing with a 1-3/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFBS207-22 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFBS207-22 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFBS207-22 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFBS207-22 bearings, and we will be happy to assist you!

UCFBS207-22 Bearing Dimensions

• Part #: UCFBS 207-22
• Shaft Diameter (d): 1-3/8"
• Dimension (A): 6.14"
• Dimension (H): 2.37"
• Dimension (E): 2.000"
• Dimension (J): 1.248"
• Dimension (I): 0.83"
• Dimension (G): 0.50"
• Dimension (L): 1.44"
• Dimension (S): 0.51"
• Dimension (B): 3.74"
• Dimension (F): 3.27"
• Dimension (Z): 1.83"
• Dimension (Bi): 1.6890"
• Dimension (N): 0.6890"
• Dimension (M): 1.0000"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: UC 207-22
• Housing Number: FBS 207
• Weight (LBS): 2.9
