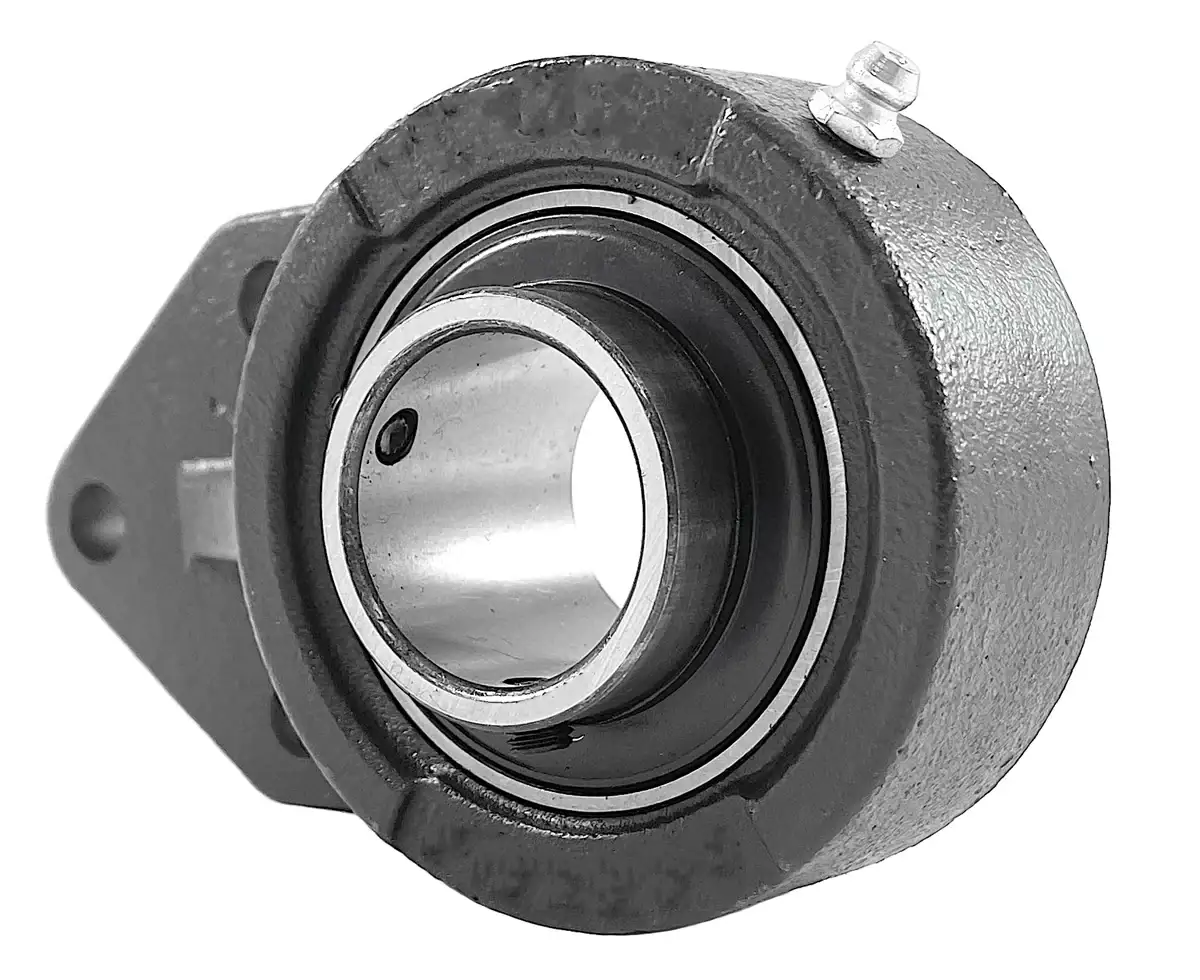

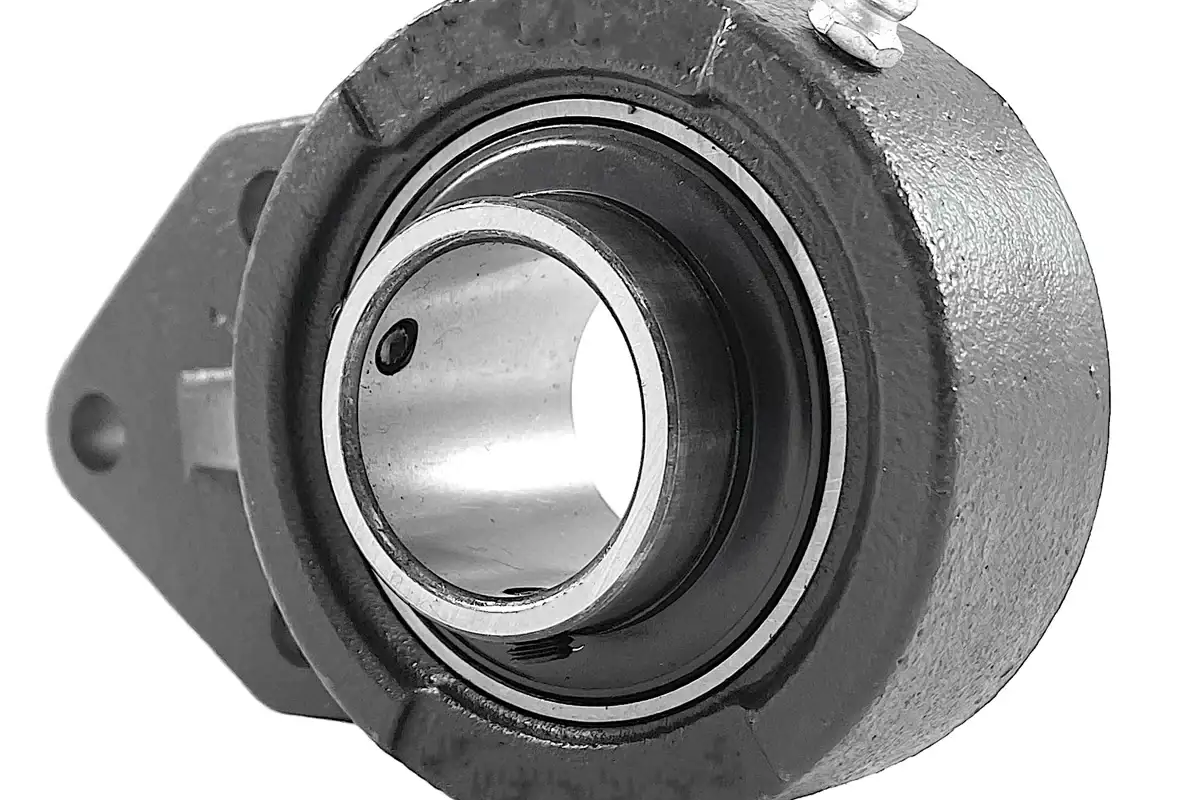

UCFBS206-19 Bearing | 1-3/16" 3-Bolt Flange Bearing

UCFBS206-19 bearing is a 1-3/16" bore three-bolt normal-duty flange bracket bearing that utilizes set screws to secure to a 1-3/16" shaft. UCFBS206-19 flange bearings are designed with an inch-based housing and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UCFBS206-19 bearing with a 1-3/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFBS206-19 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFBS206-19 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFBS206-19 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFBS206-19 bearings, and we will be happy to assist you!

UCFBS206-19 Bearing Dimensions

• Part #: UCFBS 206-19
• Shaft Diameter (d): 1-3/16"
• Dimension (A): 5.39"
• Dimension (H): 2.06"
• Dimension (E): 1.874"
• Dimension (J): 1.248"
• Dimension (I): 0.73"
• Dimension (G): 0.37"
• Dimension (L): 1.26"
• Dimension (S): 0.39"
• Dimension (B): 3.27"
• Dimension (F): 2.76"
• Dimension (Z): 1.61"
• Dimension (Bi): 1.5000"
• Dimension (N): 0.6260"
• Dimension (M): 0.8740"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Bearing Insert: UC 206-19
• Housing Number: FBS 206
• Weight (LBS): 2.1
