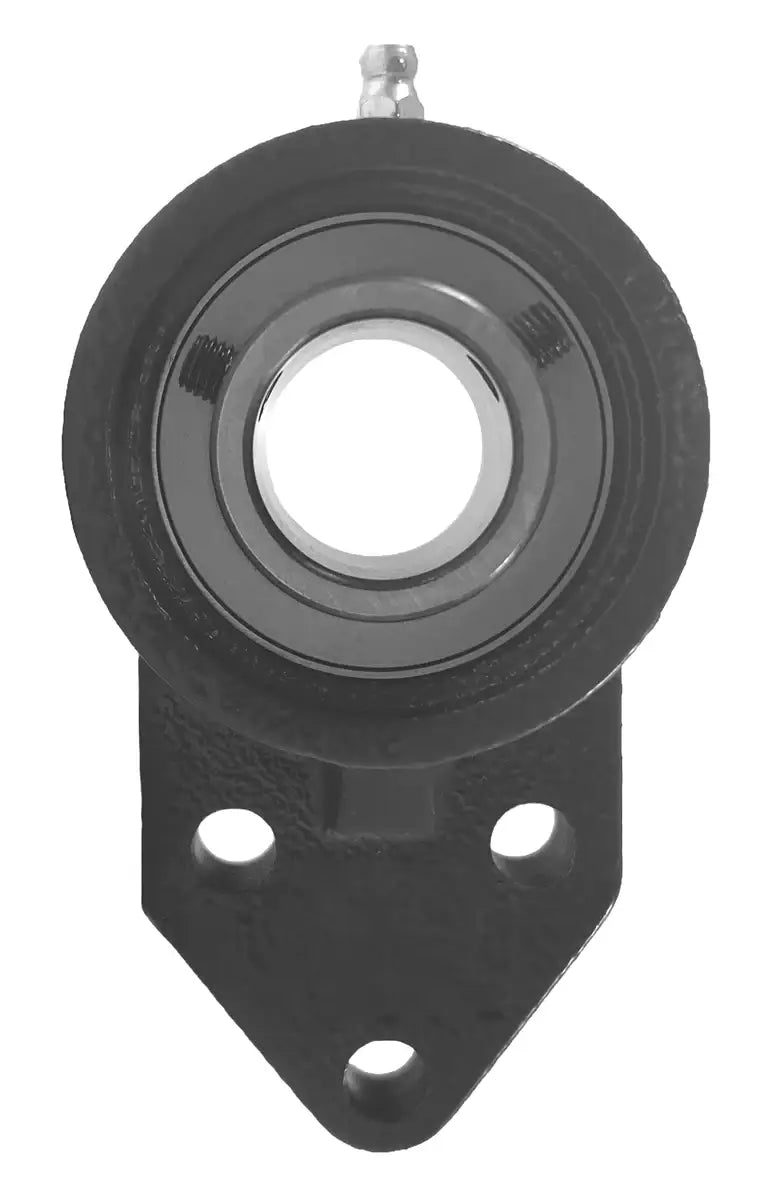

UCFB210 Bearing | 50mm 3-Bolt Flange Bearing

UCFB210 bearing is a 50mm bore three-bolt normal-duty flange bracket bearing that utilizes set screws to secure to a 50mm shaft. UCFB210 flange bearings are designed with a metric-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UCFB210 bearing with a 50mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFB210 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFB210 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFB210 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFB210 bearings, and we will be happy to assist you!

UCFB210 Bearing Dimensions

• Part #: UCFB 210
• Shaft Diameter (d): 50mm
• Dimension (A): 184.0mm
• Dimension (H): 68.0mm
• Dimension (E): 58.0mm
• Dimension (J): 46.0mm
• Dimension (I): 22.0mm
• Dimension (G): 18.0mm
• Dimension (L): 40.0mm
• Dimension (S): 12.0mm
• Dimension (B): 112.0mm
• Dimension (F): 86.0mm
• Dimension (Z): 54.6mm
• Dimension (Bi): 51.6mm
• Dimension (N): 19.0mm
• Dimension (M): 32.6mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 35.00
• Static Load Rating (kN): 23.71
• Bearing Insert: UC 210
• Housing Number: FB 210
• Weight (kg): 2.3
