Power Transmission > Bearings > Mounted Bearings > UCFB200 3-Bolt Set Screw Flange Bracket Bearings

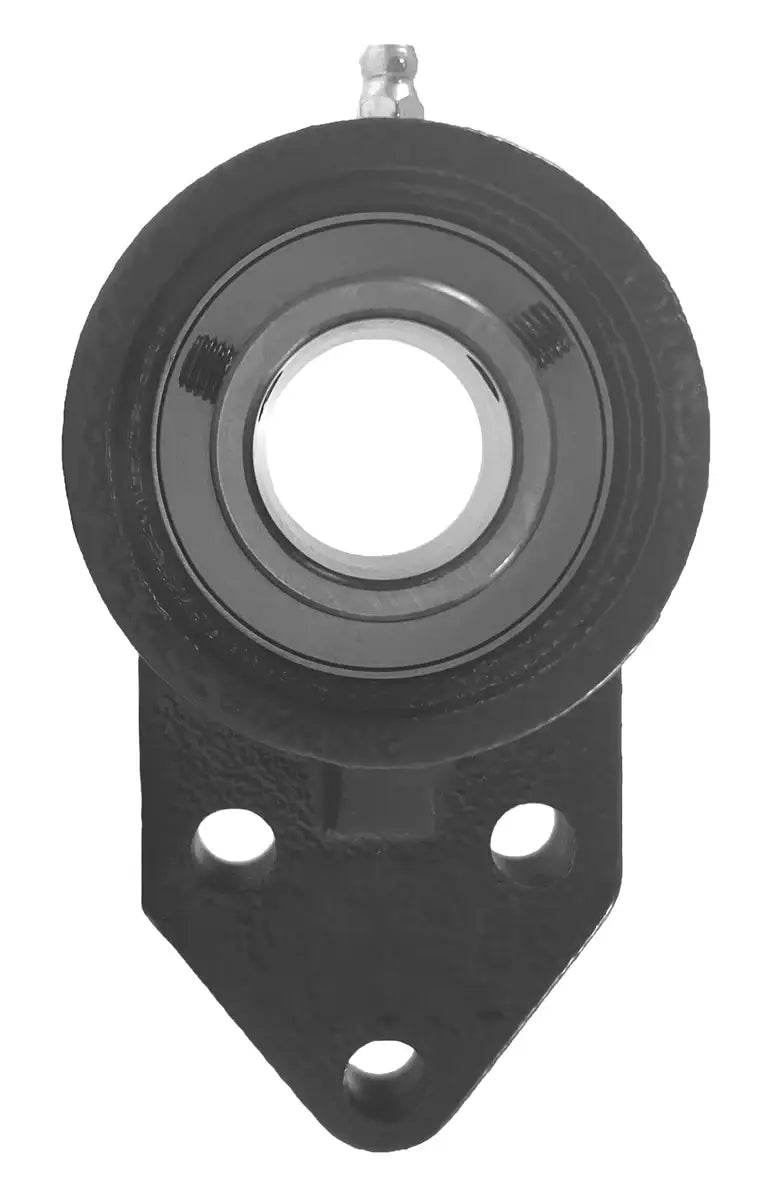

UCFB206-19 Bearing | 1-3/16" 3-Bolt Flange Bearing

Note: Custom Cut to Length Chain Also Available
$47.99
SKU: 2278-UCFB-206-19-BEARING
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51714341896559" , "metafield_value":""}]
UCFB206-19 Bearing | 1-3/16" 3-Bolt Flange Bearing Features
UCFB206-19 Bearing | 1-3/16" 3-Bolt Flange Bearing Specifications
UCFB206-19 bearing is a 1-3/16" bore three-bolt normal-duty flange bracket bearing that utilizes set screws to secure to a 1-3/16" shaft. UCFB206-19 flange bearings are designed with a metric-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UCFB206-19 bearing with a 1-3/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFB206-19 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFB206-19 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFB206-19 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFB206-19 bearings, and we will be happy to assist you!

UCFB206-19 Bearing Dimensions

UCFB206-19 Bearing | 1-3/16" 3-Bolt Flange Bearing
  • Part #: UCFB 206-19
  • Shaft Diameter (d): 1-3/16"
  • Dimension (A): 5.12"
  • Dimension (H): 1.97"
  • Dimension (E): 1.58"
  • Dimension (J): 1.14"
  • Dimension (I): 0.71"
  • Dimension (G): 0.51"
  • Dimension (L): 1.22"
  • Dimension (S): 0.39"
  • Dimension (B): 3.11"
  • Dimension (F): 2.56"
  • Dimension (Z): 1.58"
  • Dimension (Bi): 1.5000"
  • Dimension (N): 0.6260"
  • Dimension (M): 0.8740"
  • Bolt Used: 5/16
  • Dynamic Load Rating (LBS): 4,377
  • Static Load Rating (LBS): 2,569
  • Bearing Insert: UC 206-19
  • Housing Number: FB 206
  • Weight (LBS): 2.0

  • Part #: UCFB 206-19
  • Shaft Diameter (d): 1-3/16"
  • Dimension (A): 5.12"
  • Dimension (H): 1.97"
  • Dimension (E): 1.58"
  • Dimension (J): 1.14"
  • Dimension (I): 0.71"
  • Dimension (G): 0.51"
  • Dimension (L): 1.22"
  • Dimension (S): 0.39"
  • Dimension (B): 3.11"
  • Dimension (F): 2.56"
  • Dimension (Z): 1.58"
  • Dimension (Bi): 1.5000"
  • Dimension (N): 0.6260"
  • Dimension (M): 0.8740"
  • Bolt Used: 5/16
  • Dynamic Load Rating (LBS): 4,377
  • Static Load Rating (LBS): 2,569
  • Bearing Insert: UC 206-19
  • Housing Number: FB 206
  • Weight (LBS): 2.0
