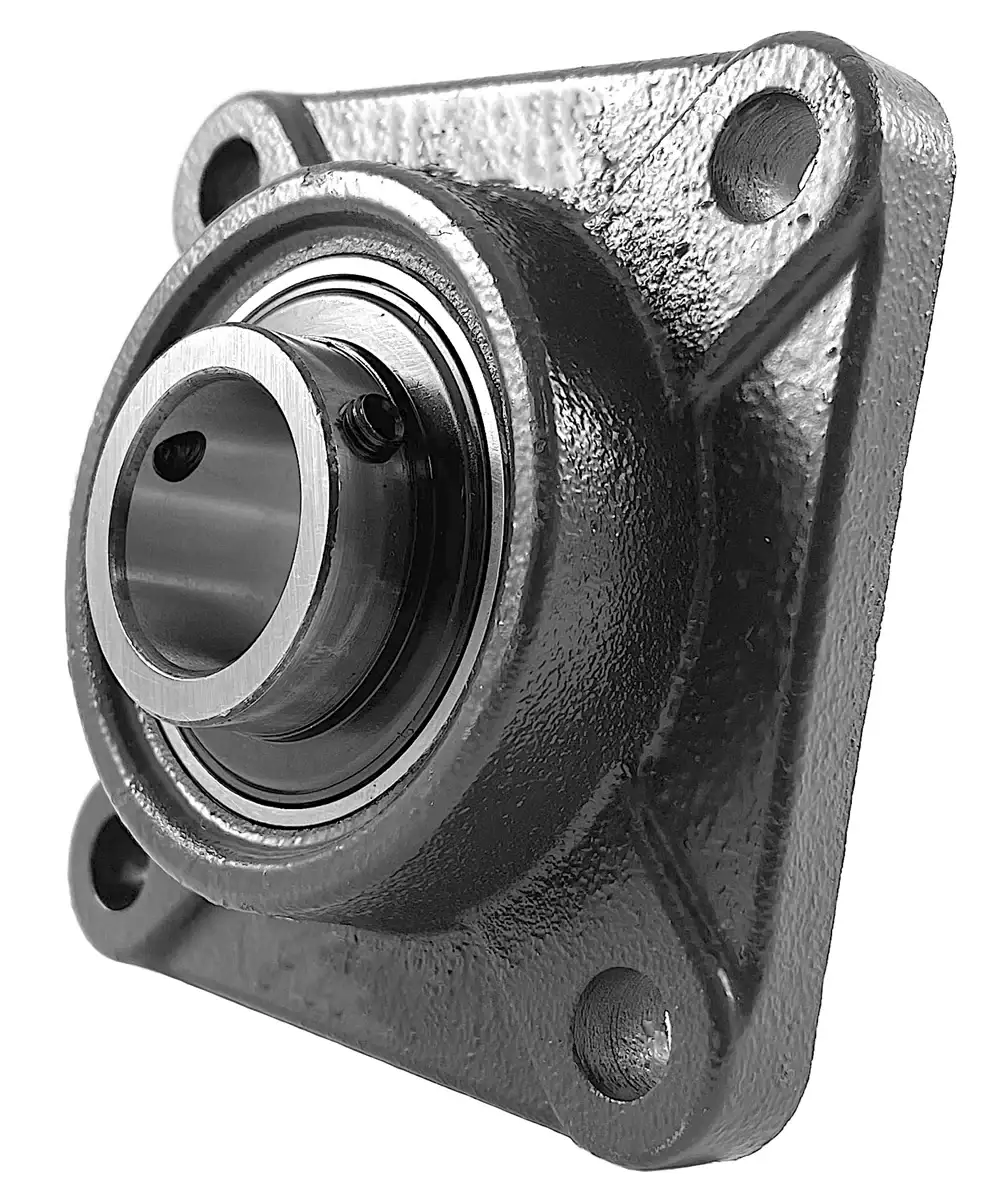

UCF215-47 Bearing | 2-15/16" 4-Bolt Flange Bearing

UCF215-47 bearing is a 2-15/16" bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 2-15/16" shaft. UCF215-47 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCF215-47 bearing with a 2-15/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCF215-47 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCF215-47 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCF215-47 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCF215-47 bearings, and we will be happy to assist you!

UCF215-47 Bearing Dimensions

• Part #: UCF 215-47
• Shaft Diameter (d): 2-15/16"
• Dimension (A): 7.88"
• Dimension (E): 6.25"
• Dimension (I): 1.34"
• Dimension (G): 0.88"
• Dimension (L): 2.21"
• Dimension (S): 0.79"
• Dimension (Z): 3.09"
• Dimension (Bi): 3.0630"
• Dimension (N): 1.3110"
• Dimension (M): 1.7250"
• Bolt Used: 3/4
• Dynamic Load Rating (LBS): 14,974
• Static Load Rating (LBS):10,757
• Bearing Insert: UC 215-47
• Housing Number: F 215
• Weight (LBS): 18.5
