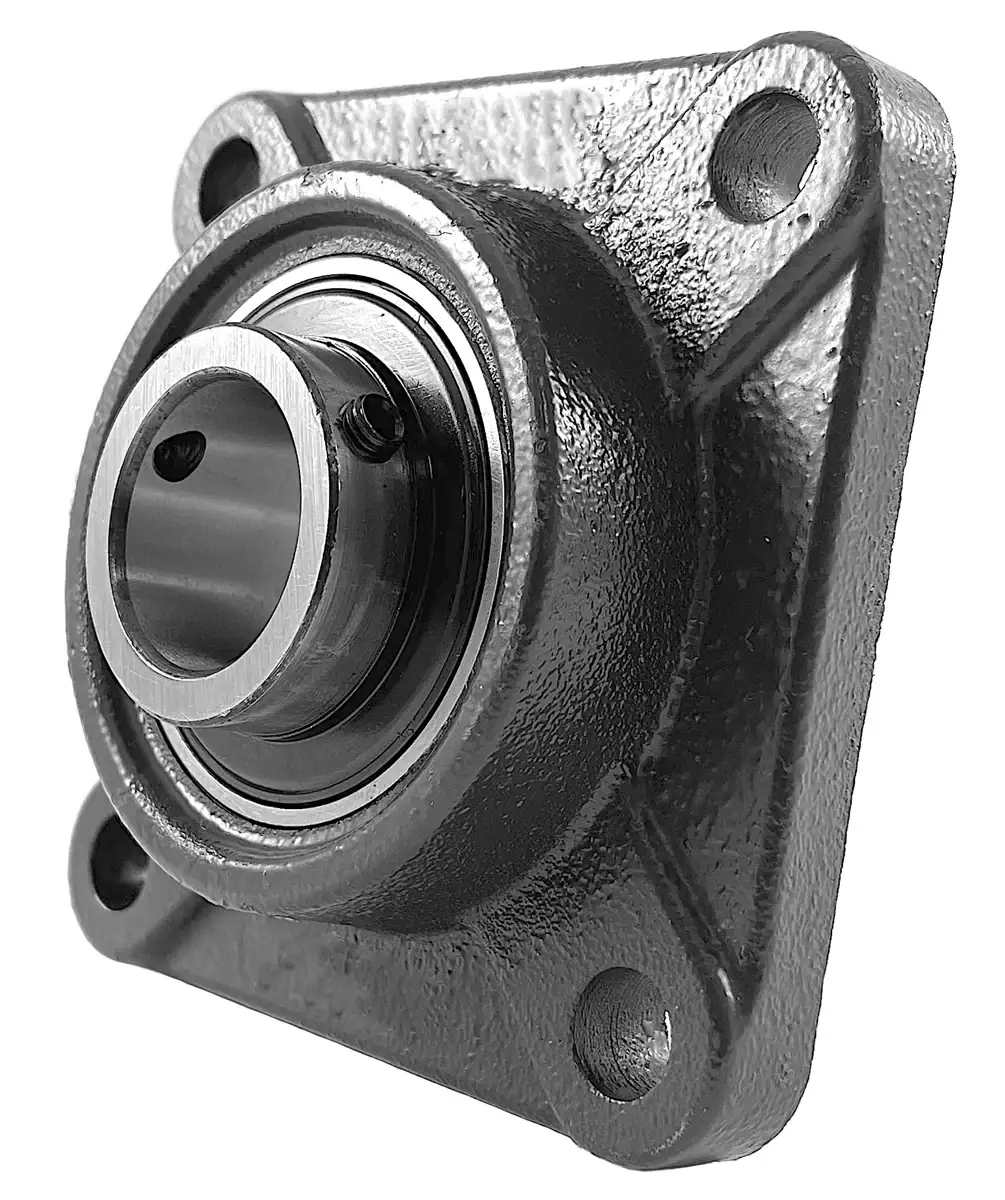

UCF210 Bearing | 50mm 4-Bolt Flange Bearing

UCF210 bearing is a 50mm bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 50mm shaft. UCF210 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCF210 bearing with a 50mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCF210 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCF210 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCF210 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCF210 bearings, and we will be happy to assist you!

UCF210 Bearing Dimensions

• Part #: UCF 210
• Shaft Diameter (d): 50mm
• Dimension (A): 143.0mm
• Dimension (E): 111.1mm
• Dimension (I): 22.0mm
• Dimension (G): 18.0mm
• Dimension (L): 40.0mm
• Dimension (S): 16.0mm
• Dimension (Z): 54.6mm
• Dimension (Bi): 51.6mm
• Dimension (N): 19.0mm
• Dimension (M): 32.6mm
• Bolt Used: N14
• Dynamic Load Rating (kN): 35.00
• Static Load Rating (kN): 23.71
• Bearing Insert: UC 210
• Housing Number: F 210
• Weight (kg): 3.4
