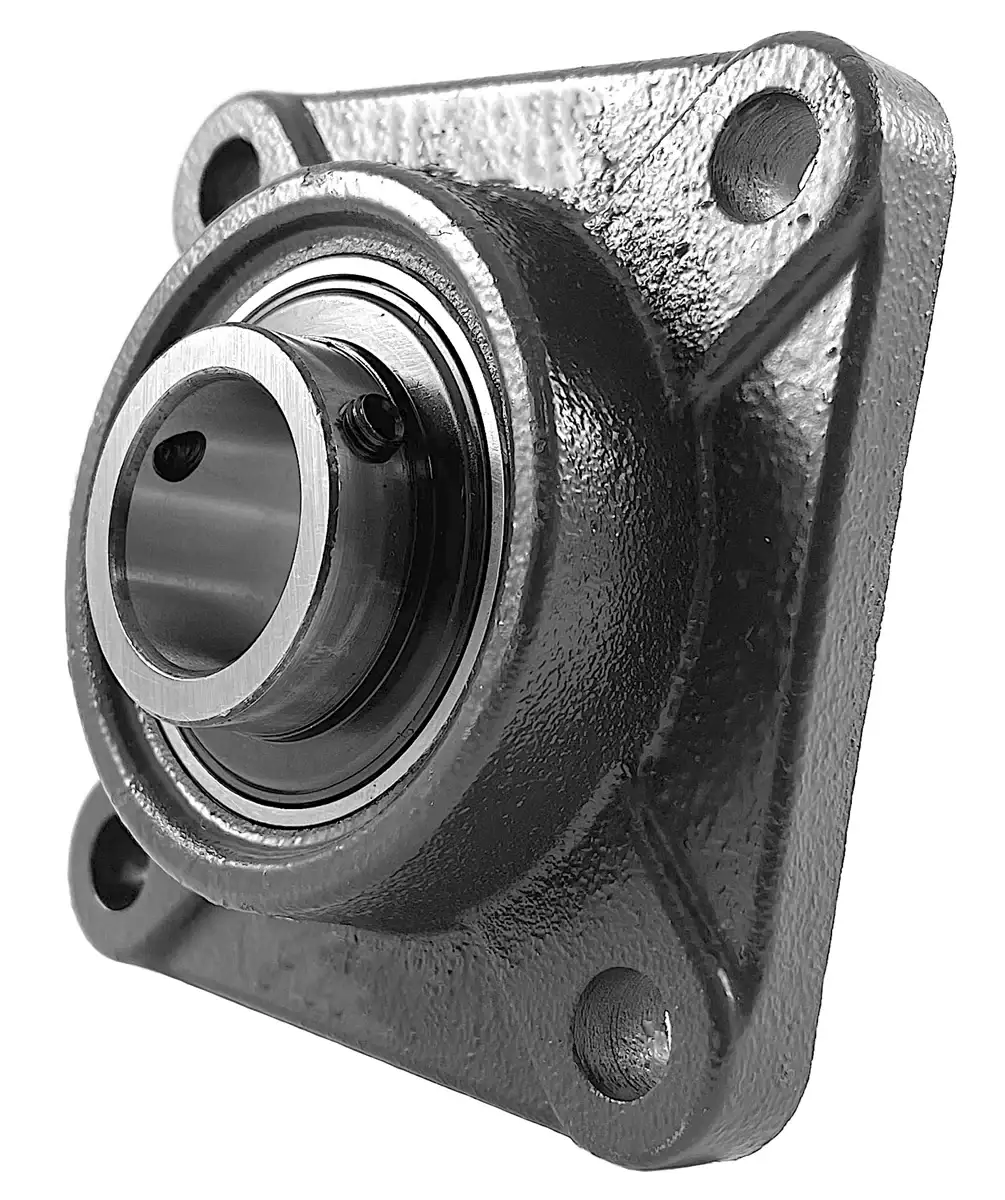

UCF209-26 Bearing | 1-5/8" 4-Bolt Flange Bearing

UCF209-26 bearing is a 1-5/8" bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 1-5/8" shaft. UCF209-26 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCF209-26 bearing with a 1-5/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCF209-26 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCF209-26 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCF209-26 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCF209-26 bearings, and we will be happy to assist you!

UCF209-26 Bearing Dimensions

• Part #: UCF 209-26
• Shaft Diameter (d): 1-5/8"
• Dimension (A): 5.38"
• Dimension (E): 4.13"
• Dimension (I): 0.88"
• Dimension (G): 0.71"
• Dimension (L): 1.50"
• Dimension (S): 0.63"
• Dimension (Z): 2.06"
• Dimension (Bi): 1.9370"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Bolt Used: 9/16
• Dynamic Load Rating (LBS): 7,160
• Static Load Rating (LBS): 4,676
• Bearing Insert: UC 209-26
• Housing Number: F 209
• Weight (LBS): 6.8
