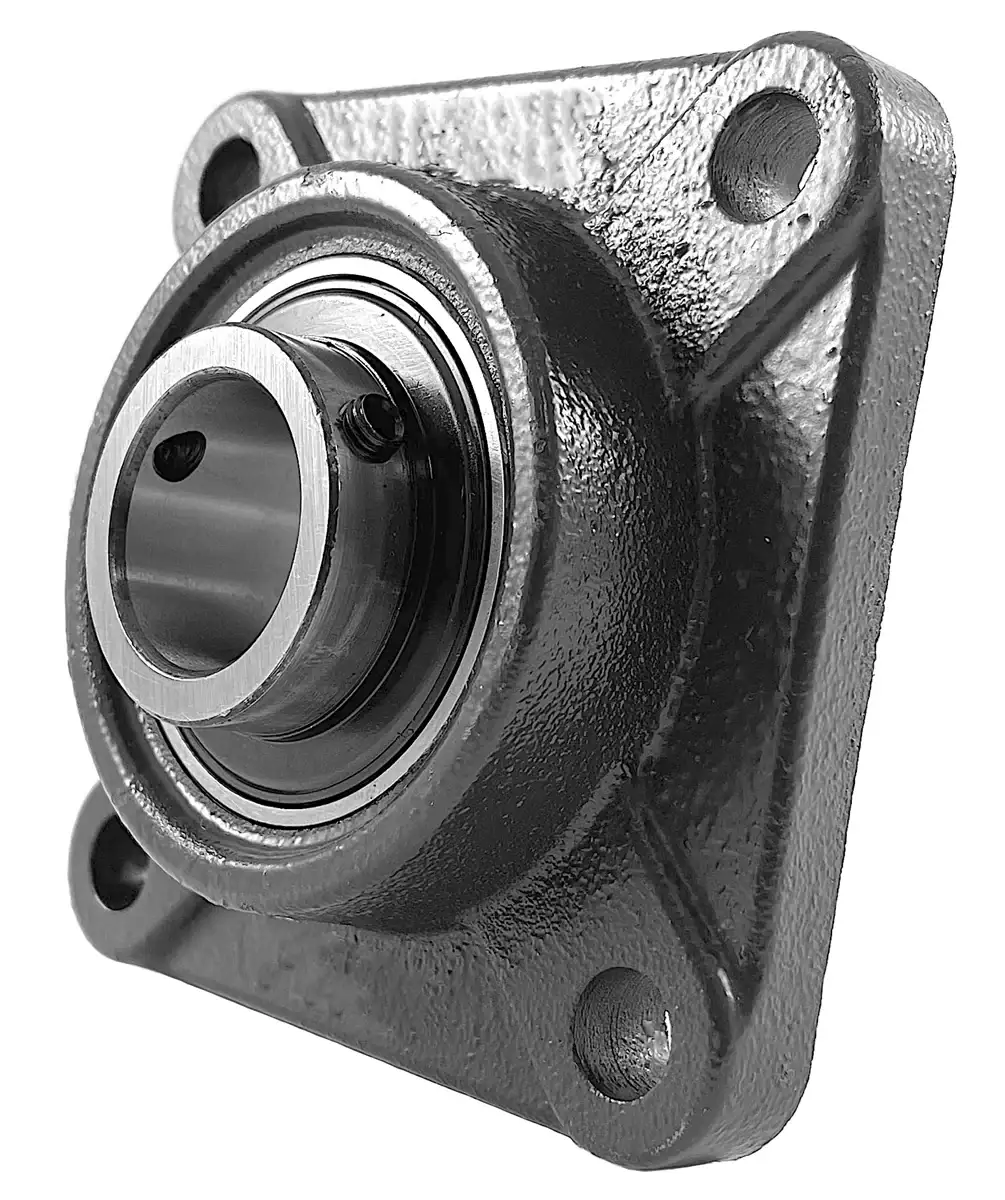

UCF207-23 Bearing | 1-7/16" 4-Bolt Flange Bearing

UCF207-23 bearing is a 1-7/16" bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 1-7/16" shaft. UCF207-23 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCF207-23 bearing with a 1-7/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCF207-23 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCF207-23 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCF207-23 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCF207-23 bearings, and we will be happy to assist you!

UCF207-23 Bearing Dimensions

• Part #: UCF 207-23
• Shaft Diameter (d): 1-7/16"
• Dimension (A): 4.61"
• Dimension (E): 3.36"
• Dimension (I): 0.75"
• Dimension (G): 0.63"
• Dimension (L): 1.34"
• Dimension (S): 0.55"
• Dimension (Z): 1.75"
• Dimension (Bi): 1.6890"
• Dimension (N): 0.6890"
• Dimension (M): 1.0000"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: UC 207-23
• Housing Number: F 207
• Weight (LBS): 4.6
