SER211 Insert Bearing | 55mm Insert Bearing With Snap Ring
SKU: 2278-SER-211-BEARING
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
SER211 Insert Bearing | 55mm Insert Bearing With Snap Ring Description/Features
SER211 Insert Bearing | 55mm Insert Bearing With Snap Ring Specifications

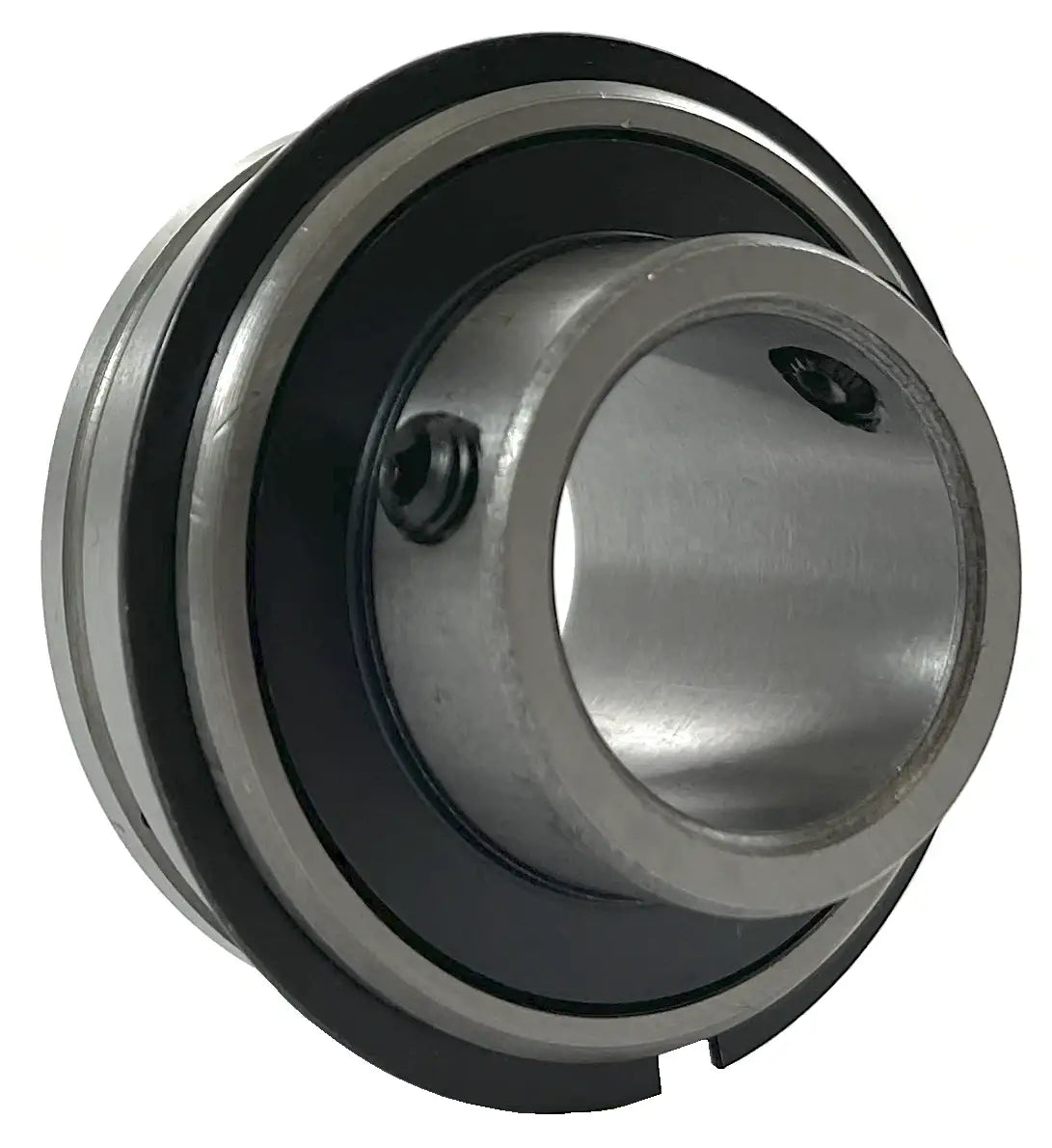

SER211 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 55mm shaft. Our SER211 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER211 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER211 bearings, contact our customer service and, we will be happy to assist you!
SER211 Bearing Dimensions
- Part #: SER 211
- Shaft Diameter (d): 55mm
- Setscrew Used: M10 x 1.25
- Dimension (D): 100.0mm
- Dimension (Bi): 55.6mm
- Dimension (Be): 30.2mm
- Dimension (N): 22.2mm
- Dimension (M): 33.4mm
- Dimension (A): 2.4mm
- Dimension (AN): 3.2mm
- Dimension (Y): 106.5mm
- Dimension (G): 10.0mm
- Dimension (T): 7.6mm
- Dynamic Load Rating (kN): 43.34
- Static Load Rating (kN): 29.40
- Weight (kg): 1.2
- Part #: SER 211
- Shaft Diameter (d): 55mm
- Setscrew Used: M10 x 1.25
- Dimension (D): 100.0mm
- Dimension (Bi): 55.6mm
- Dimension (Be): 30.2mm
- Dimension (N): 22.2mm
- Dimension (M): 33.4mm
- Dimension (A): 2.4mm
- Dimension (AN): 3.2mm
- Dimension (Y): 106.5mm
- Dimension (G): 10.0mm
- Dimension (T): 7.6mm
- Dynamic Load Rating (kN): 43.34
- Static Load Rating (kN): 29.40
- Weight (kg): 1.2
