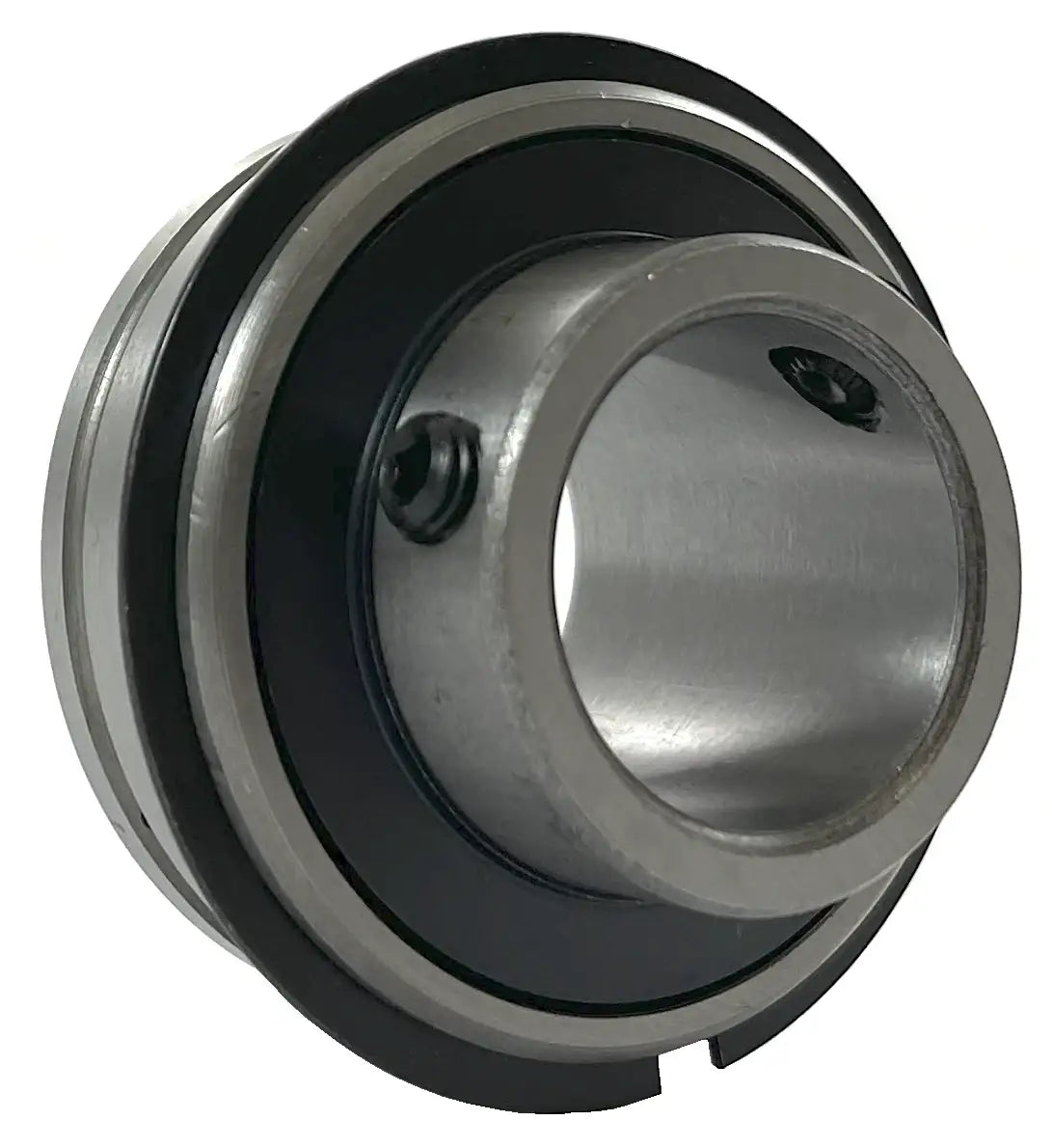

SER210-31 Insert Bearing | 1-15/16" Insert Bearing With Snap Ring

SER210-31 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 1-15/16" shaft. Our SER210-31 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER210-31 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER210-31 bearings, contact our customer service and, we will be happy to assist you!

SER210-31 Bearing Dimensions

• Part #: SER 210-31
• Shaft Diameter (d): 1-15/16"
• Setscrew Used: 3/8-24"
• Dimension (D): 3.5433"
• Dimension (Bi): 2.0315"
• Dimension (Be): 1.1260"
• Dimension (N): 0.7480"
• Dimension (M): 1.2835"
• Dimension (A): 0.0949"
• Dimension (AN): 0.1252"
• Dimension (Y): 3.7992"
• Dimension (G): 0.3937"
• Dimension (T): 0.2677"
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330
• Weight (LBS): 2.3
