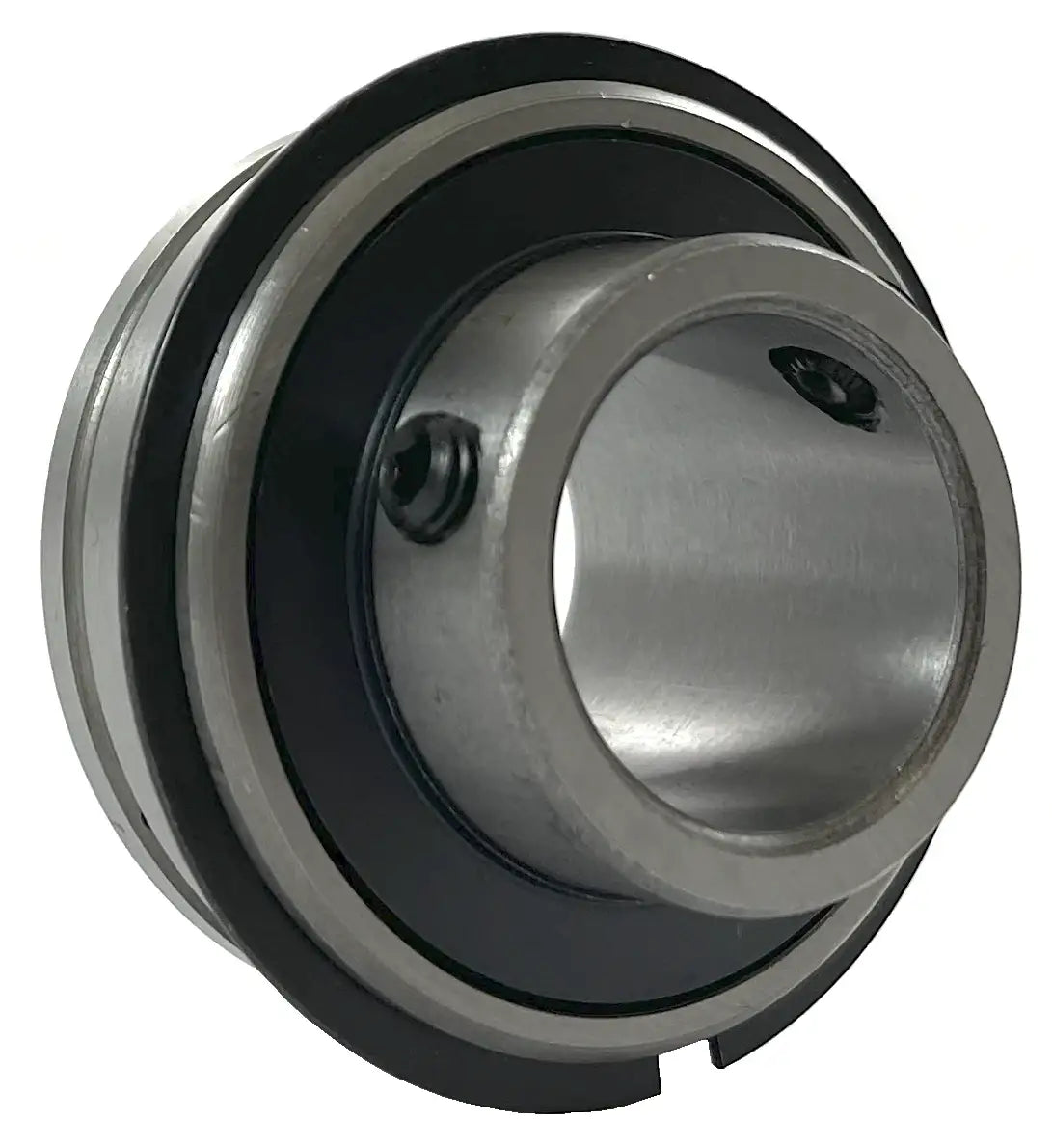

SER206 Insert Bearing | 30mm Insert Bearing With Snap Ring
$33.99
SKU: 2278-SER-206-BEARING
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
SER206 Insert Bearing | 30mm Insert Bearing With Snap Ring Description/Features
SER206 Insert Bearing | 30mm Insert Bearing With Snap Ring Specifications
SER206 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 30mm shaft. Our SER206 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER206 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER206 bearings, contact our customer service and, we will be happy to assist you!
SER206 Bearing Dimensions
- Part #: SER 206
- Shaft Diameter (d): 30mm
- Setscrew Used: M6 x 1
- Dimension (D): 62.0mm
- Dimension (Bi): 38.1mm
- Dimension (Be): 22.2mm
- Dimension (N): 15.9mm
- Dimension (M): 22.2mm
- Dimension (A): 1.7mm
- Dimension (AN): 3.2mm
- Dimension (Y): 67.7mm
- Dimension (G): 5.5mm
- Dimension (T): 5.5mm
- Dynamic Load Rating (kN): 19.47
- Static Load Rating (kN): 11.43
- Weight (kg): 0.4
- Part #: SER 206
- Shaft Diameter (d): 30mm
- Setscrew Used: M6 x 1
- Dimension (D): 62.0mm
- Dimension (Bi): 38.1mm
- Dimension (Be): 22.2mm
- Dimension (N): 15.9mm
- Dimension (M): 22.2mm
- Dimension (A): 1.7mm
- Dimension (AN): 3.2mm
- Dimension (Y): 67.7mm
- Dimension (G): 5.5mm
- Dimension (T): 5.5mm
- Dynamic Load Rating (kN): 19.47
- Static Load Rating (kN): 11.43
- Weight (kg): 0.4
