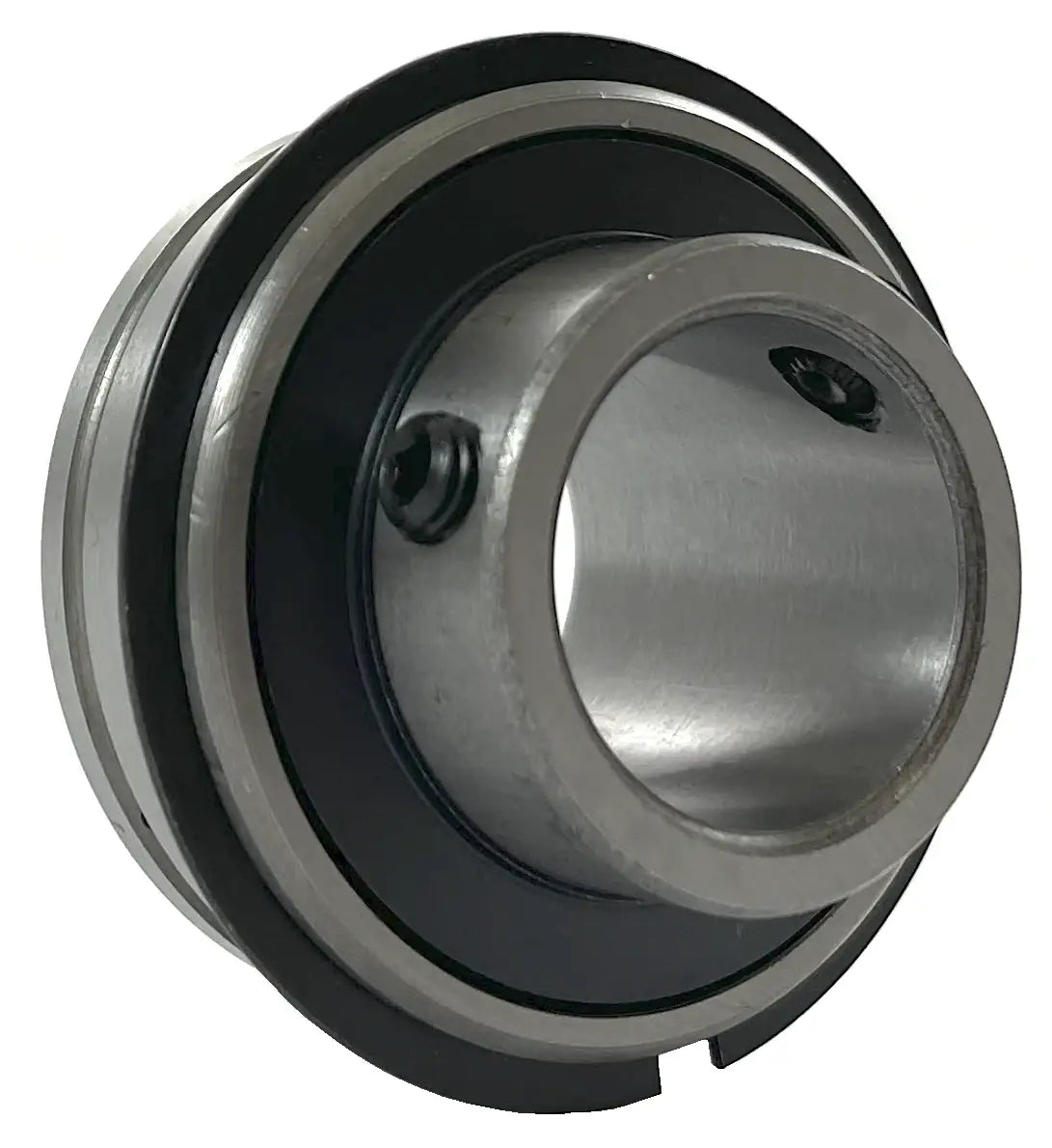

SER206-19 Insert Bearing | 1-3/16" Insert Bearing With Snap Ring

SER206-19 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 1-3/16" shaft. Our SER206-19 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER206-19 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER206-19 bearings, contact our customer service and, we will be happy to assist you!

SER206-19 Bearing Dimensions

• Part #: SER 206-19
• Shaft Diameter (d): 1-3/16"
• Setscrew Used: 1/4-28"
• Dimension (D): 2.4409"
• Dimension (Bi): 1.5000"
• Dimension (Be): 0.8740"
• Dimension (N): 0.6260"
• Dimension (M): 0.8740"
• Dimension (A): 0.0650"
• Dimension (AN): 0.1252"
• Dimension (Y): 2.6655"
• Dimension (G): 0.2165"
• Dimension (T): 0.2165"
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Weight (LBS): 0.8
