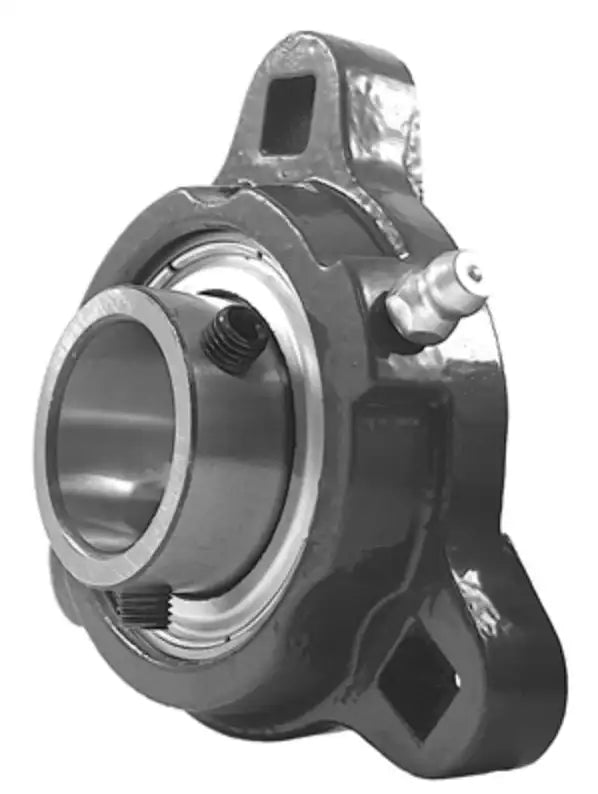

SBRFB207-21 bearing is a 1-5/16" bore three-bolt light-duty flange bearing that utilizes set screws to secure to a 1-5/16" shaft. SBRFB207-21 flange bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior SBRFB207-21 bearing with a 1-5/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SBRFB207-21 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. SBRFB207-21 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SBRFB207-21 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SBRFB207-21 bearings, and we will be happy to assist you!

SBRFB207-21 Bearing Dimensions

• Part #: SBRFB207-21
• Shaft Diameter (d): 1-5/16"
• Dimension (A): 4.82"
• Dimension (E): 3.937"
• Dimension (I): 0.50"
• Dimension (G): 0.50"
• Dimension (B): 3.50"
• Dimension (L): 0.94"
• Dimension (S): 0.41"
• Dimension (Z): 1.17"
• Dimension (Y): 2.41"
• Dimension (Bi): 1.5315"
• Dimension (N): 0.3346"
• Dimension (M): 0.6654"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: SB 207-21
• Housing Number: RFB 207
• Weight (LBS): 2.0
