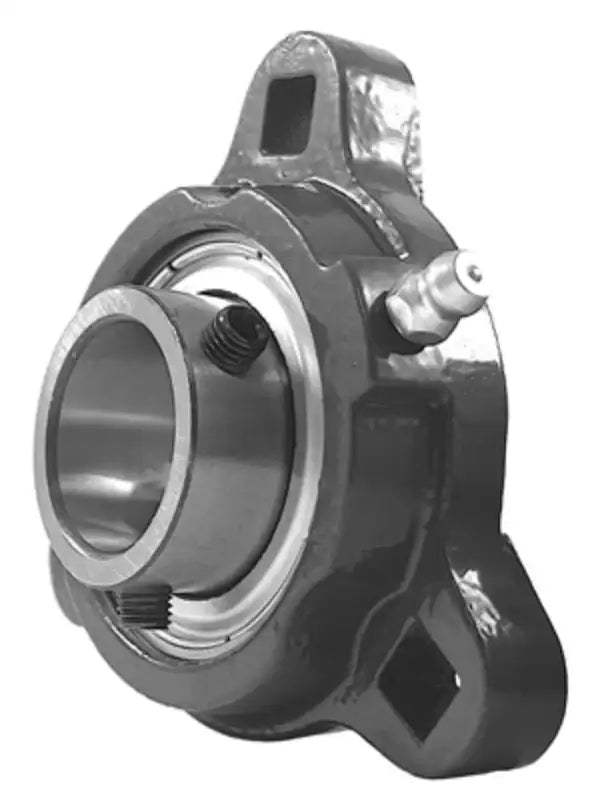

SBRFB205-15 Bearing | 15/16" 3-Bolt Flange Bearing

SBRFB205-15 bearing is a 15/16" bore three-bolt light-duty flange bearing that utilizes set screws to secure to a 15/16" shaft. SBRFB205-15 flange bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior SBRFB205-15 bearing with a 15/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SBRFB205-15 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. SBRFB205-15 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SBRFB205-15 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SBRFB205-15 bearings, and we will be happy to assist you!

SBRFB205-15 Bearing Dimensions

• Part #: SBRFB205-15
• Shaft Diameter (d): 15/16"
• Dimension (A): 3.75"
• Dimension (E): 3.000"
• Dimension (I): 0.41"
• Dimension (G): 0.43"
• Dimension (B): 2.87"
• Dimension (L): 0.79"
• Dimension (S): 0.34"
• Dimension (Z): 0.98"
• Dimension (Y): 1.87"
• Dimension (Bi): 1.2402"
• Dimension (N): 0.2953"
• Dimension (M): 0.5709"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: SB 205-15
• Housing Number: RFB 205
• Weight (LBS): 1.1
