Power Transmission > Bearings > Mounted Bearings > SBRFB200 3-Bolt Set Screw Flange Bearings

SBRFB204-12 Bearing | 3/4" 3-Bolt Flange Bearing

Note: Custom Cut to Length Chain Also Available
$33.99
SKU: 2278-SBRFB-204-12-BEARING
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51714337276271" , "metafield_value":""}]
SBRFB204-12 Bearing | 3/4" 3-Bolt Flange Bearing Features
SBRFB204-12 Bearing | 3/4" 3-Bolt Flange Bearing Specifications

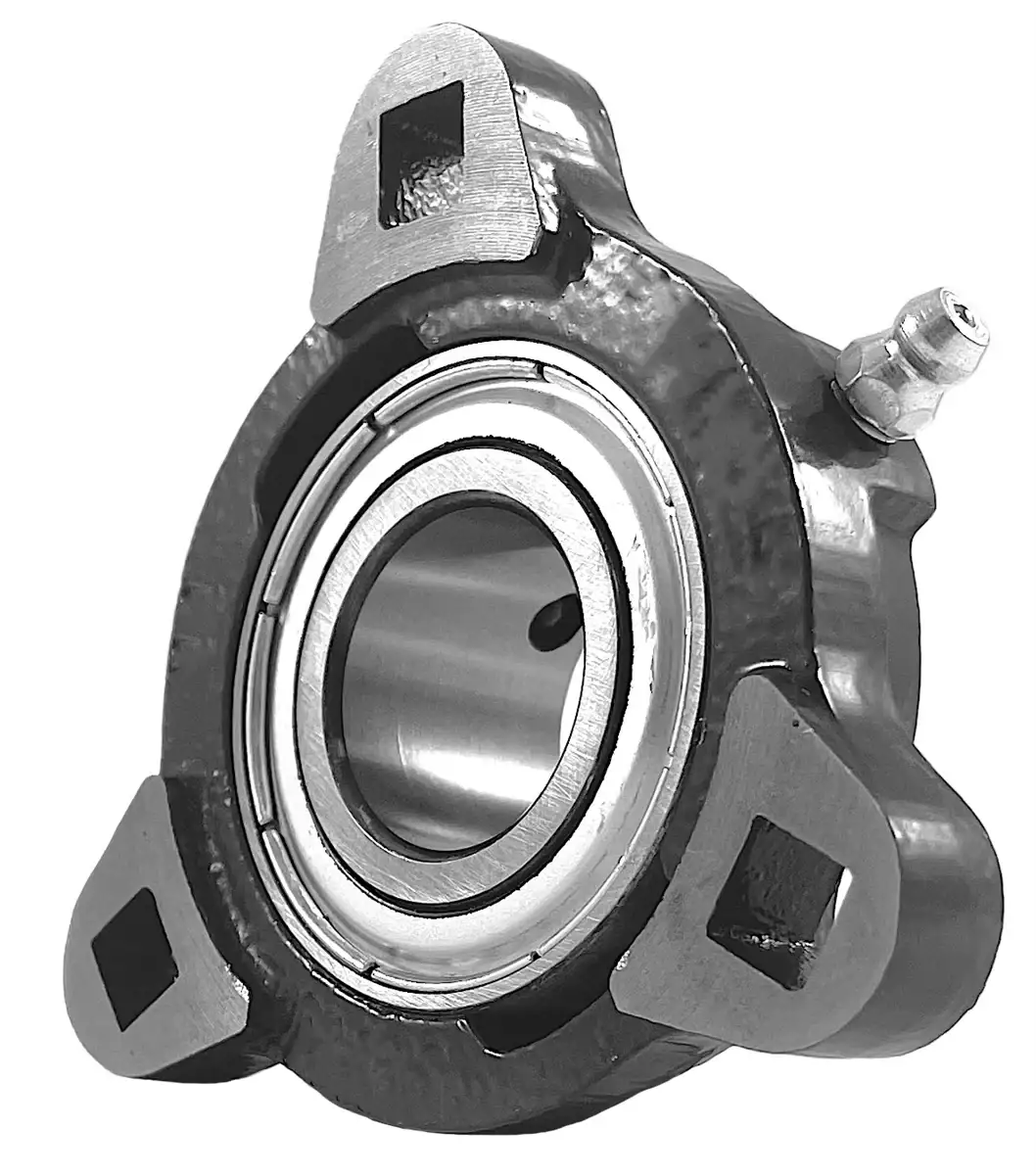

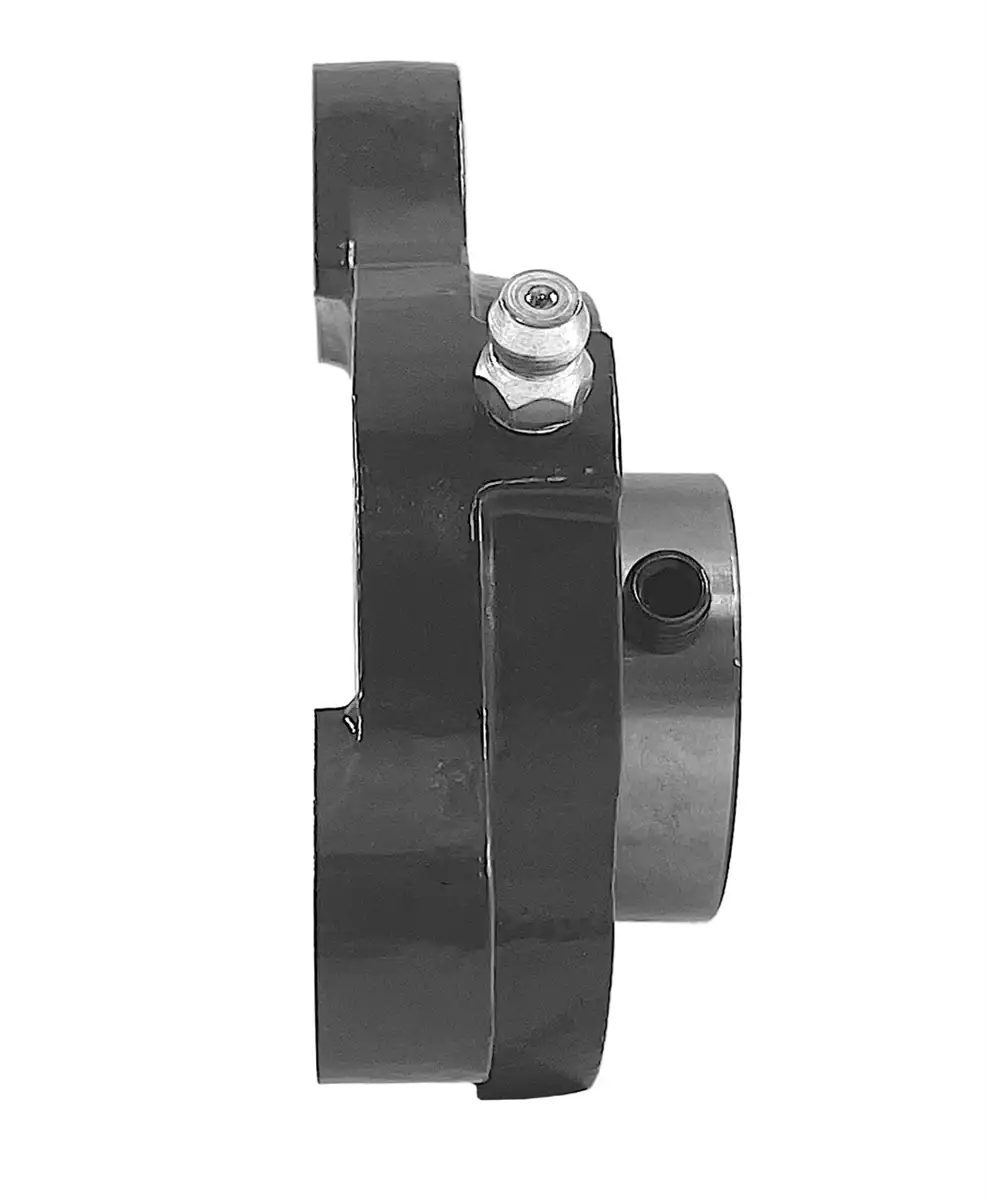

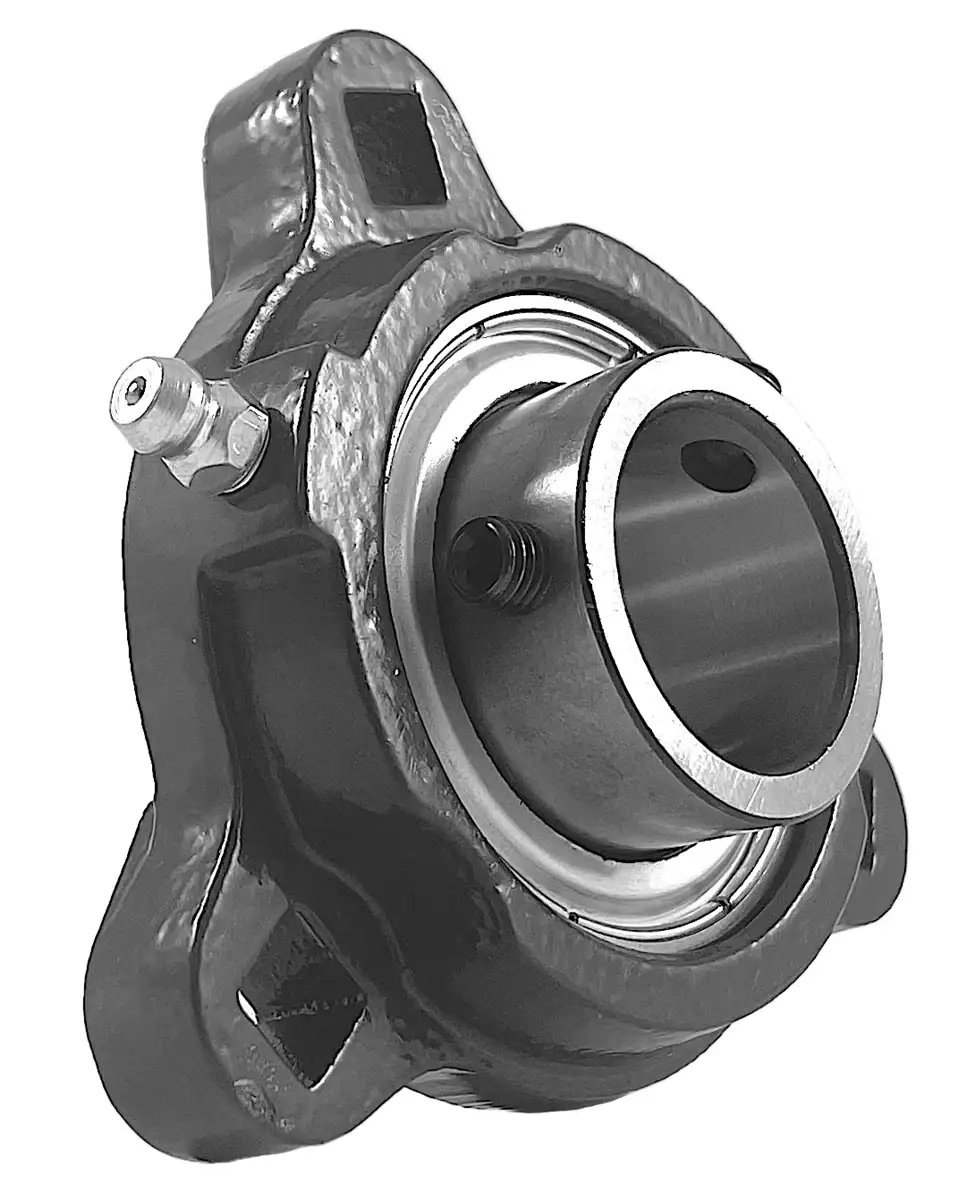

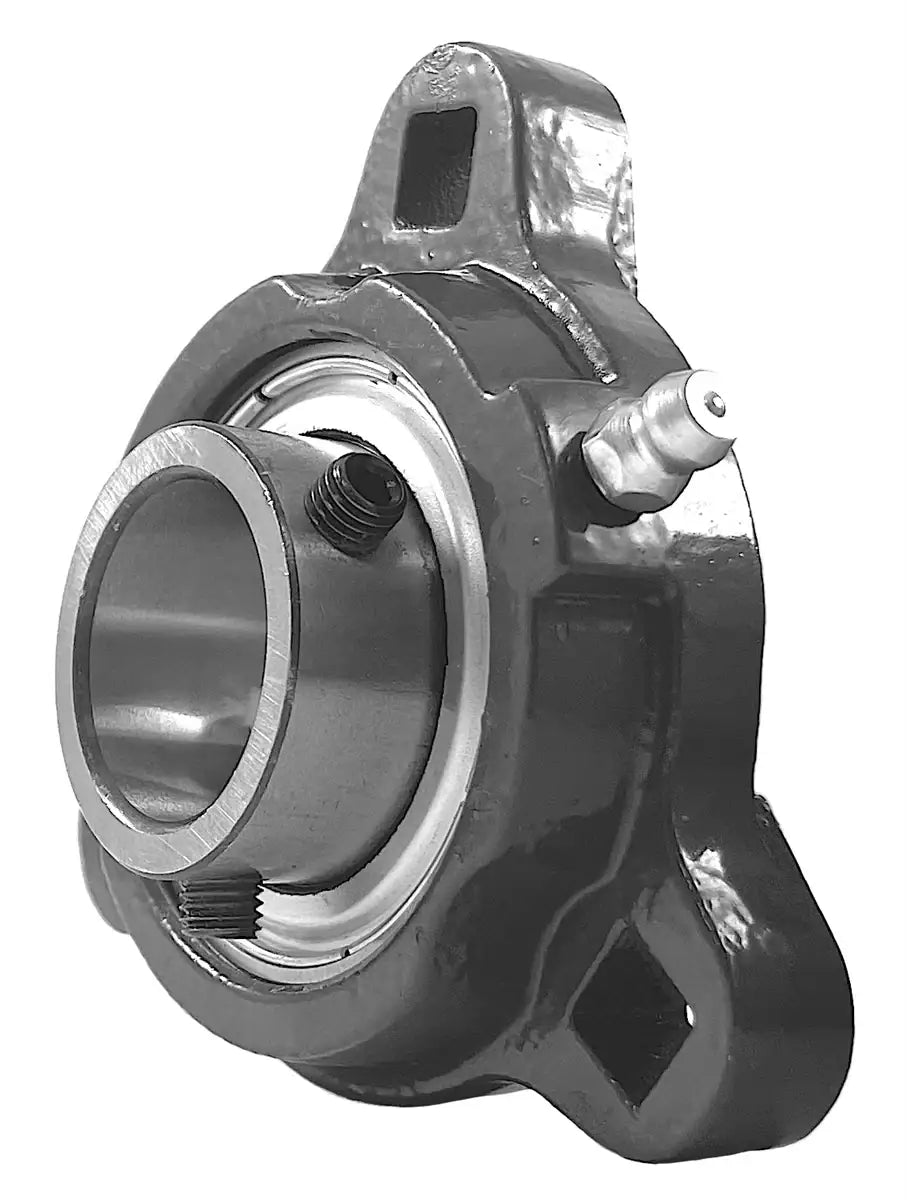

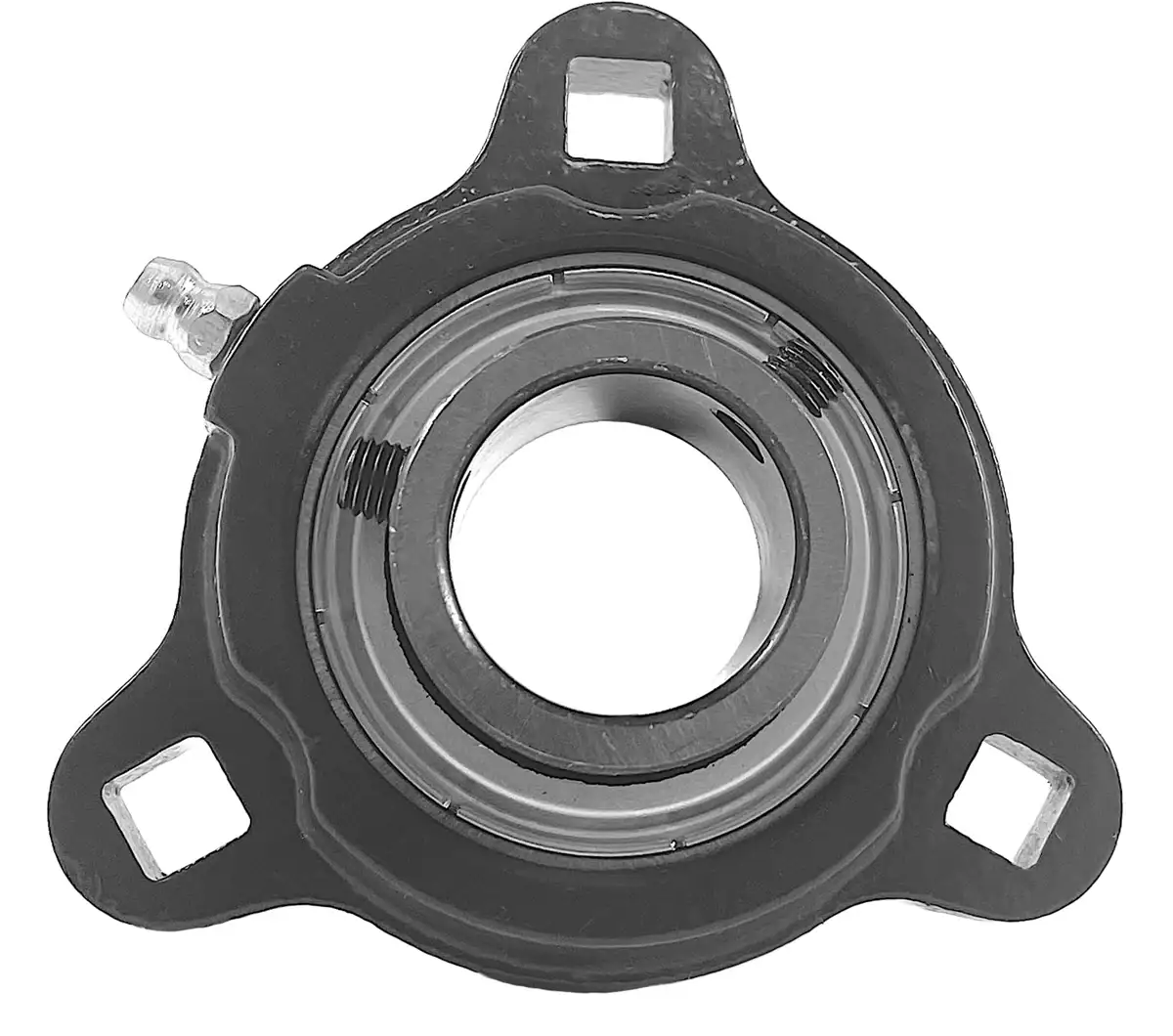

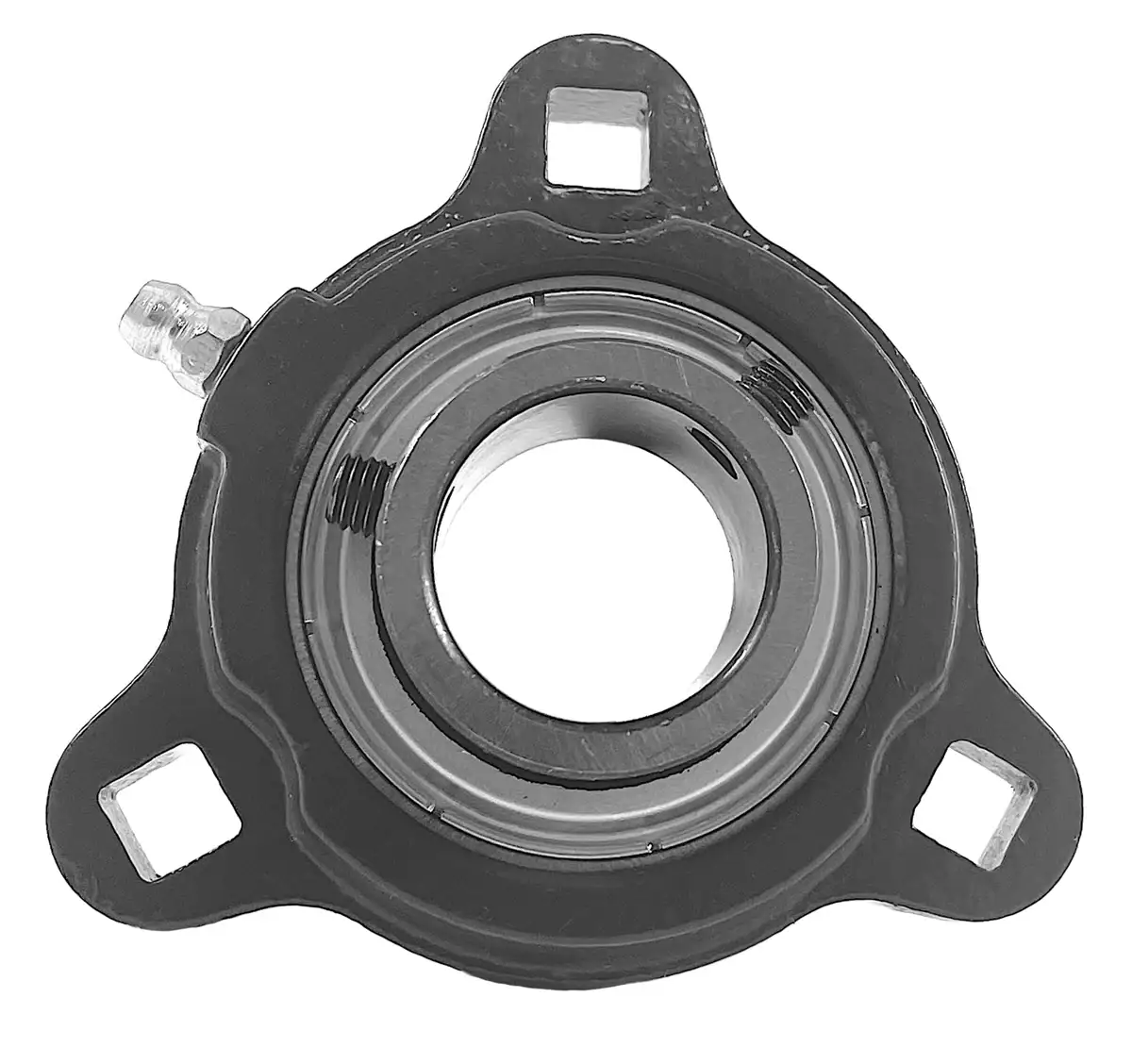

SBRFB204-12 bearing is a 3/4" bore three-bolt light-duty flange bearing that utilizes set screws to secure to a 3/4" shaft. SBRFB204-12 flange bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior SBRFB204-12 bearing with a 3/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SBRFB204-12 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. SBRFB204-12 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SBRFB204-12 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SBRFB204-12 bearings, and we will be happy to assist you!

SBRFB204-12 Bearing Dimensions

SBRFB204-12 Bearing | 3/4" 3-Bolt Flange Bearing
  • Part #:SBRFB204-12
  • Shaft Diameter (d): 3/4"
  • Dimension (A): 3.56"
  • Dimension (E): 2.811"
  • Dimension (I): 0.44"
  • Dimension (G): 0.44"
  • Dimension (B): 2.64"
  • Dimension (L): 0.79"
  • Dimension (S): 0.34"
  • Dimension (Z): 1.01"
  • Dimension (Y): 1.78"
  • Dimension (Bi): 1.2205"
  • Dimension (N): 0.2756"
  • Dimension (M): 0.5709"
  • Bolt Used: 5/16
  • Dynamic Load Rating (LBS): 2,883
  • Static Load Rating (LBS): 1,496
  • Bearing Insert: SB 204-12
  • Housing Number: RFB 204
  • Weight (LBS): 0.9

  • Part #:SBRFB204-12
  • Shaft Diameter (d): 3/4"
  • Dimension (A): 3.56"
  • Dimension (E): 2.811"
  • Dimension (I): 0.44"
  • Dimension (G): 0.44"
  • Dimension (B): 2.64"
  • Dimension (L): 0.79"
  • Dimension (S): 0.34"
  • Dimension (Z): 1.01"
  • Dimension (Y): 1.78"
  • Dimension (Bi): 1.2205"
  • Dimension (N): 0.2756"
  • Dimension (M): 0.5709"
  • Bolt Used: 5/16
  • Dynamic Load Rating (LBS): 2,883
  • Static Load Rating (LBS): 1,496
  • Bearing Insert: SB 204-12
  • Housing Number: RFB 204
  • Weight (LBS): 0.9
