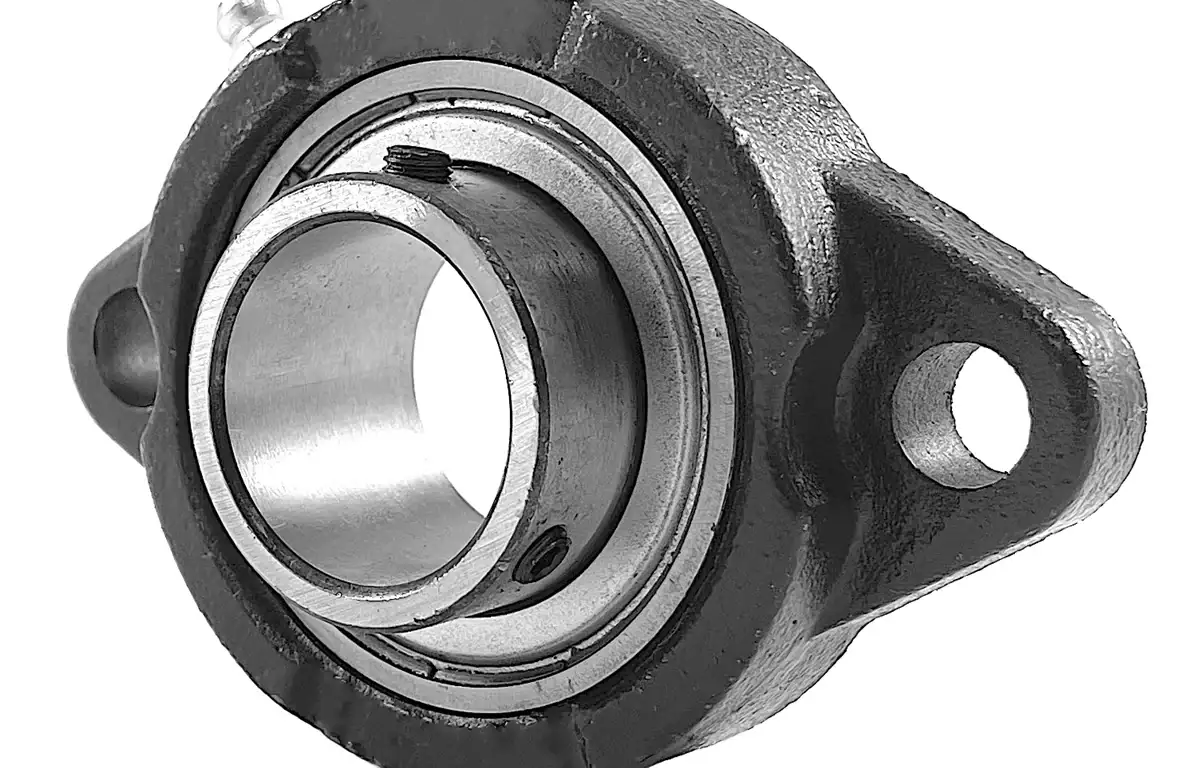

SBLF205-14 Bearing | 7/8" 2-Bolt Flange Bearing

SBLF205-14 bearing is a 7/8" bore two-bolt light-duty flange bearing that utilizes set screws to secure to a 7/8" shaft. SBLF205-14 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior SBLF205-14 bearing with a 7/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SBLF205-14 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. SBLF205-14 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SBLF205-14 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SBLF205-14 bearings, and we will be happy to assist you!

SBLF205-14 Bearing Dimensions

• Part #: SBLF 205-14
• Shaft Diameter (d): 7/8"
• Dimension (A): 3.74"
• Dimension (E): 2.992"
• Dimension (I): 0.43"
• Dimension (G): 0.43"
• Dimension (L): 0.79"
• Dimension (S): 0.39"
• Dimension (B): 2.52"
• Dimension (Z): 1.20"
• Dimension (Bi): 1.0630"
• Dimension (N): 0.2953"
• Dimension (M): 0.7677"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: SB 205-14
• Housing Number: LF 205
• Weight (LBS): 1.5
