SA210 Insert Bearing | 50mm Insert Bearing
SKU: 2278-SA-210-BEARING
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
SA210 Insert Bearing | 50mm Insert Bearing Description/Features
SA210 Insert Bearing | 50mm Insert Bearing Specifications

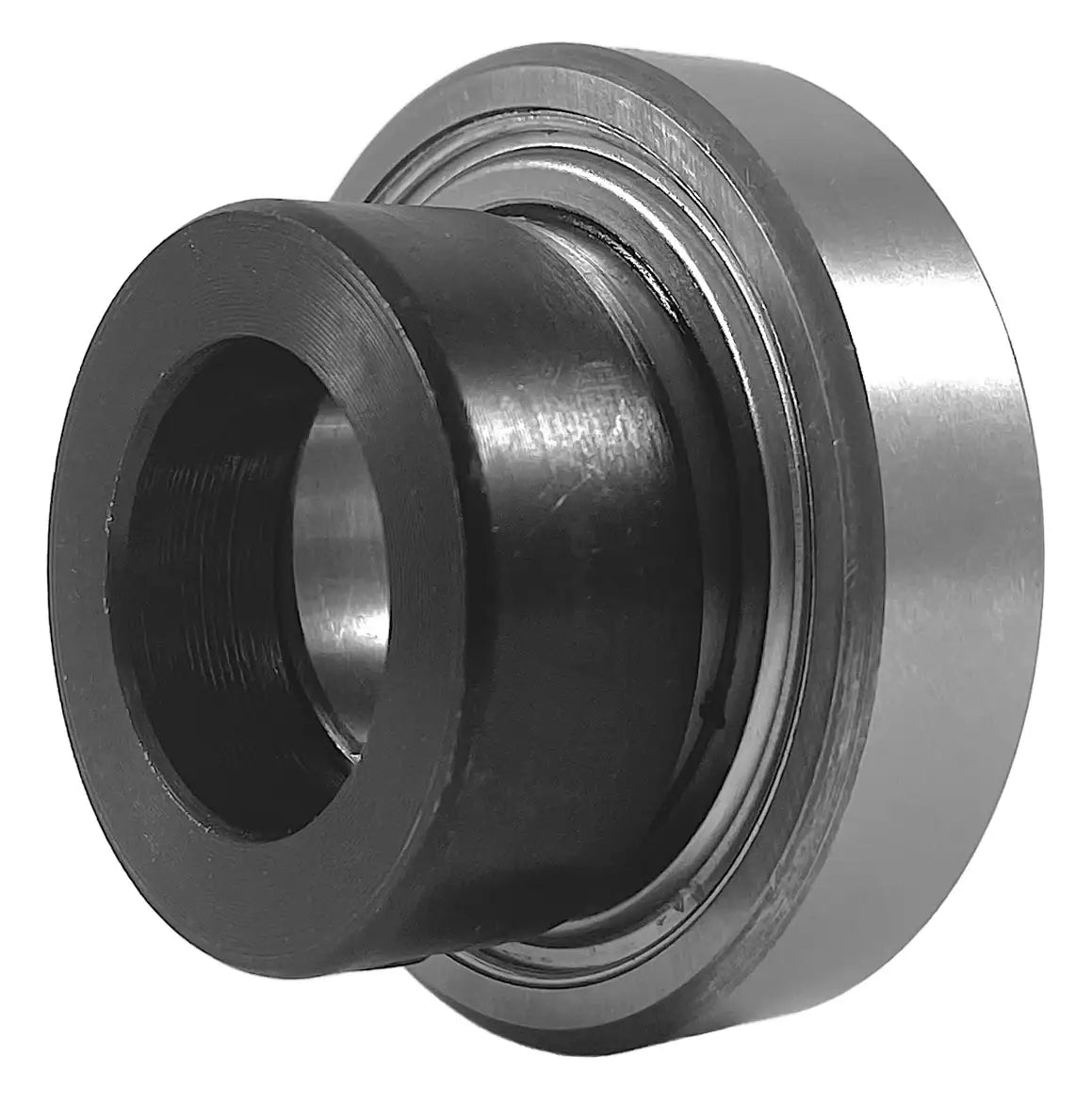

SA210 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 50mm shaft. Our SA210 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SA210 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SA210 bearings, contact our customer service and, we will be happy to assist you!
SA210 Bearing Dimensions
- Part #: SA 210
- Shaft Diameter (d): 50mm
- Setscrew Used: M8 x 1
- Dimension (D): 90.0mm
- Dimension (Bi): 43.7mm
- Dimension (Be): 20.0mm
- Dimension (N): 10.0mm
- Dimension (M): 20.2mm
- Dimension (W): 69.9mm
- Dimension (K): 18.3mm
- Dimension (G): 6.5mm
- Dimension (T): 6.6mm
- Dynamic Load Rating (kN): 35.0
- Static Load Rating (kN): 23.71
- Weight (kg): 1.0
- Part #: SA 210
- Shaft Diameter (d): 50mm
- Setscrew Used: M8 x 1
- Dimension (D): 90.0mm
- Dimension (Bi): 43.7mm
- Dimension (Be): 20.0mm
- Dimension (N): 10.0mm
- Dimension (M): 20.2mm
- Dimension (W): 69.9mm
- Dimension (K): 18.3mm
- Dimension (G): 6.5mm
- Dimension (T): 6.6mm
- Dynamic Load Rating (kN): 35.0
- Static Load Rating (kN): 23.71
- Weight (kg): 1.0
