SA207 Insert Bearing | 35mm Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-SA-207-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SA207 Insert Bearing | 35mm Insert Bearing Features
SA207 Insert Bearing | 35mm Insert Bearing Specifications

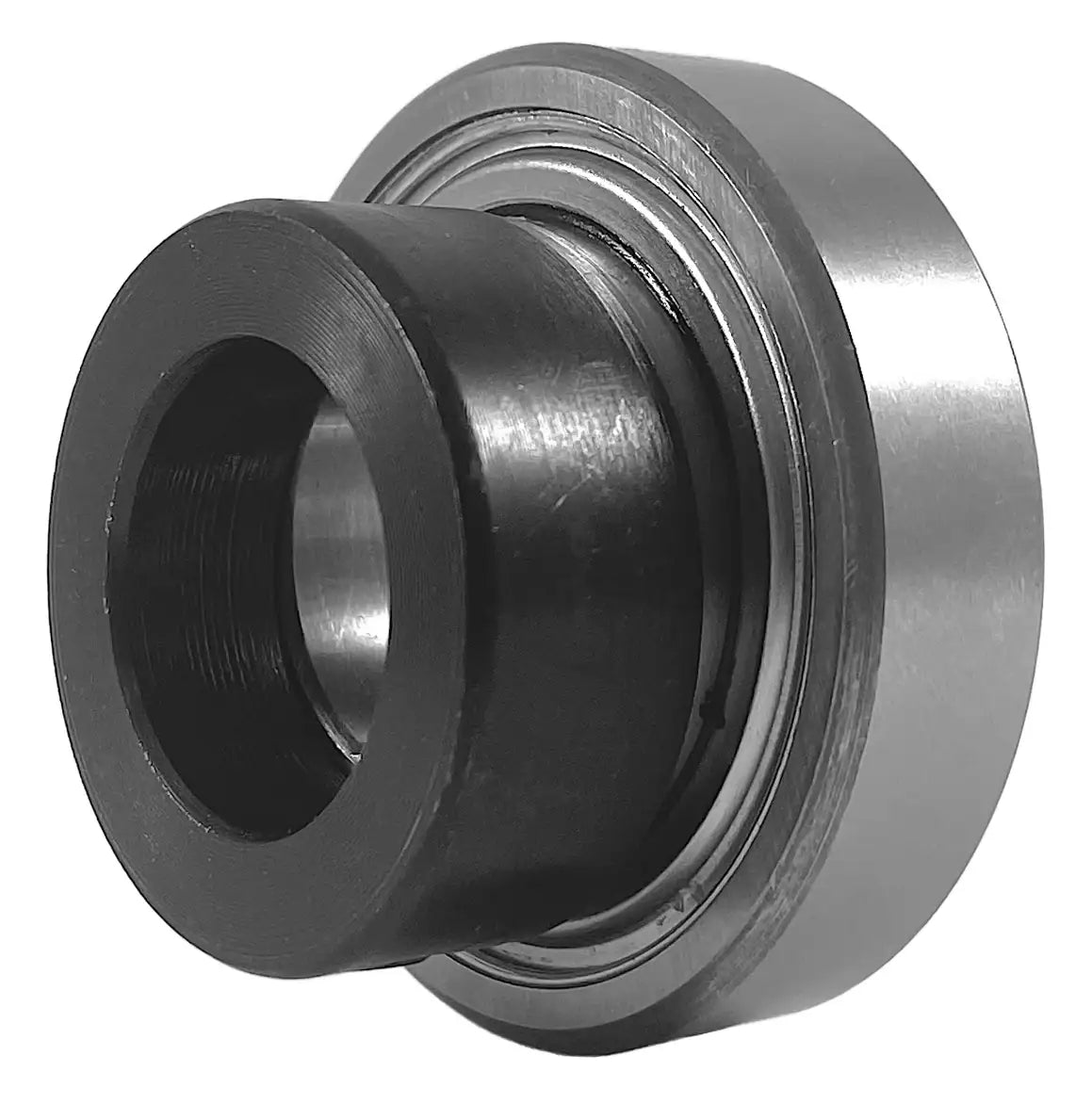

SA207 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 35mm shaft. Our SA207 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SA207 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SA207 bearings, contact our customer service and, we will be happy to assist you!
SA207 Bearing Dimensions
- Part #: SA 207
- Shaft Diameter (d): 35mm
- Setscrew Used: M8 x 1
- Dimension (D): 72.0mm
- Dimension (Bi): 38.9mm
- Dimension (Be): 17.0mm
- Dimension (N): 8.5mm
- Dimension (M): 16.9mm
- Dimension (W): 55.6mm
- Dimension (K): 17.5mm
- Dimension (G): 6.5mm
- Dimension (T): 5.5mm
- Dynamic Load Rating (kN): 25.69
- Static Load Rating (kN): 15.56
- Weight (kg): 0.6
- Part #: SA 207
- Shaft Diameter (d): 35mm
- Setscrew Used: M8 x 1
- Dimension (D): 72.0mm
- Dimension (Bi): 38.9mm
- Dimension (Be): 17.0mm
- Dimension (N): 8.5mm
- Dimension (M): 16.9mm
- Dimension (W): 55.6mm
- Dimension (K): 17.5mm
- Dimension (G): 6.5mm
- Dimension (T): 5.5mm
- Dynamic Load Rating (kN): 25.69
- Static Load Rating (kN): 15.56
- Weight (kg): 0.6
