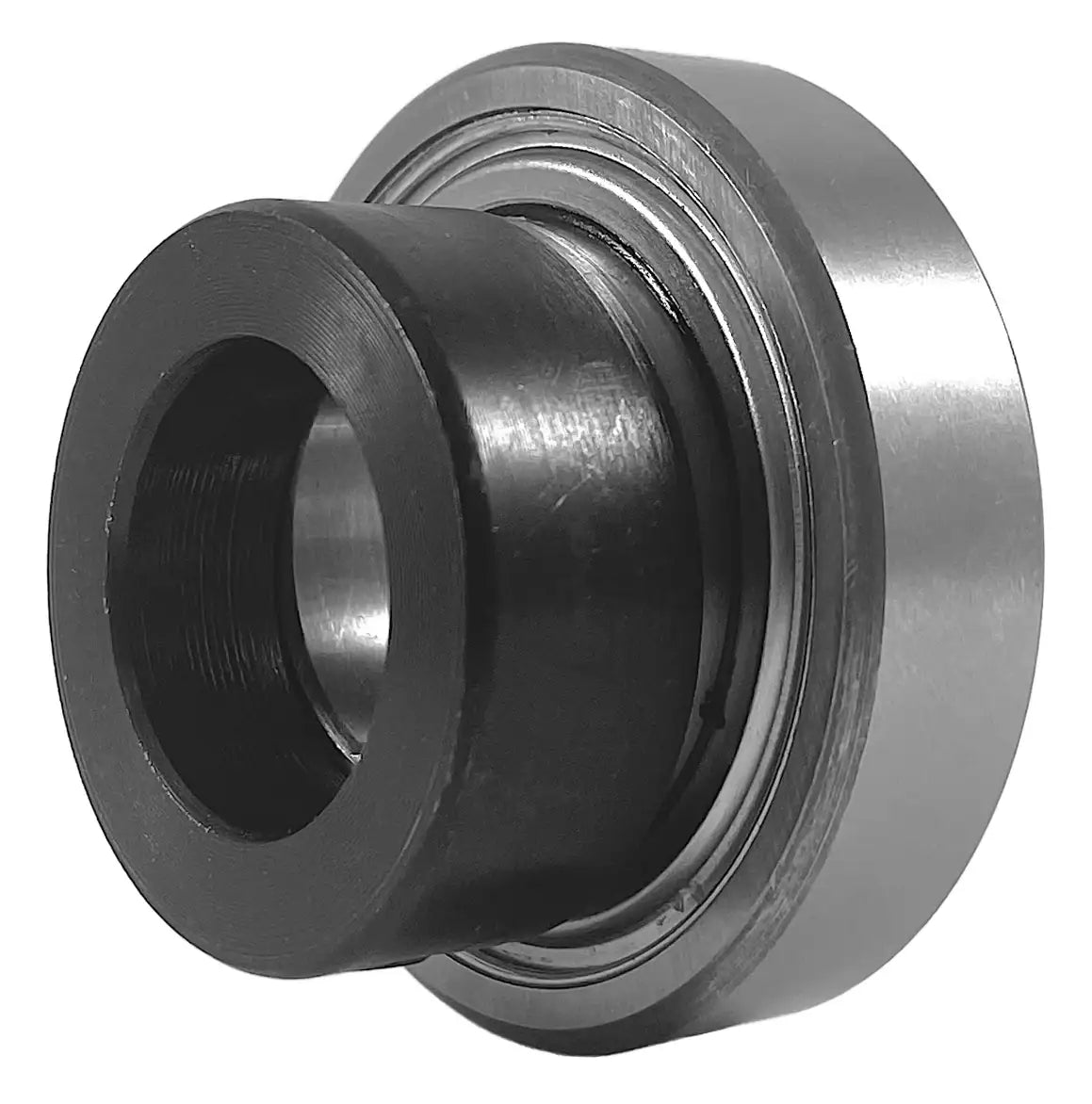

SA207-21 Insert Bearing | 1-5/16" Insert Bearing
$33.99
SKU: 2278-SA-207-21-BEARING
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
SA207-21 Insert Bearing | 1-5/16" Insert Bearing Description/Features
SA207-21 Insert Bearing | 1-5/16" Insert Bearing Specifications
SA207-21 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 1-5/16" shaft. Our SA207-21 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SA207-21 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SA207-21 bearings, contact our customer service and, we will be happy to assist you!
SA207-21 Bearing Dimensions
- Part #: SA 207-21
- Shaft Diameter (d): 1-5/16"
- Setscrew Used: 5/16-24"
- Dimension (D): 2.8346"
- Dimension (Bi): 1.5315"
- Dimension (Be): 0.6693"
- Dimension (N): 0.3346"
- Dimension (M): 0.6654"
- Dimension (W): 2.189"
- Dimension (K): 0.689"
- Dimension (G): 0.2559"
- Dimension (T): 0.2165"
- Dynamic Load Rating (LBS): 5,775
- Static Load Rating (LBS): 3,497
- Weight (LBS): 1.3
- Part #: SA 207-21
- Shaft Diameter (d): 1-5/16"
- Setscrew Used: 5/16-24"
- Dimension (D): 2.8346"
- Dimension (Bi): 1.5315"
- Dimension (Be): 0.6693"
- Dimension (N): 0.3346"
- Dimension (M): 0.6654"
- Dimension (W): 2.189"
- Dimension (K): 0.689"
- Dimension (G): 0.2559"
- Dimension (T): 0.2165"
- Dynamic Load Rating (LBS): 5,775
- Static Load Rating (LBS): 3,497
- Weight (LBS): 1.3
