SA207-20 Insert Bearing | 1-1/4" Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$29.75
SKU: 2278-SA-207-20-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SA207-20 Insert Bearing | 1-1/4" Insert Bearing Features
SA207-20 Insert Bearing | 1-1/4" Insert Bearing Specifications

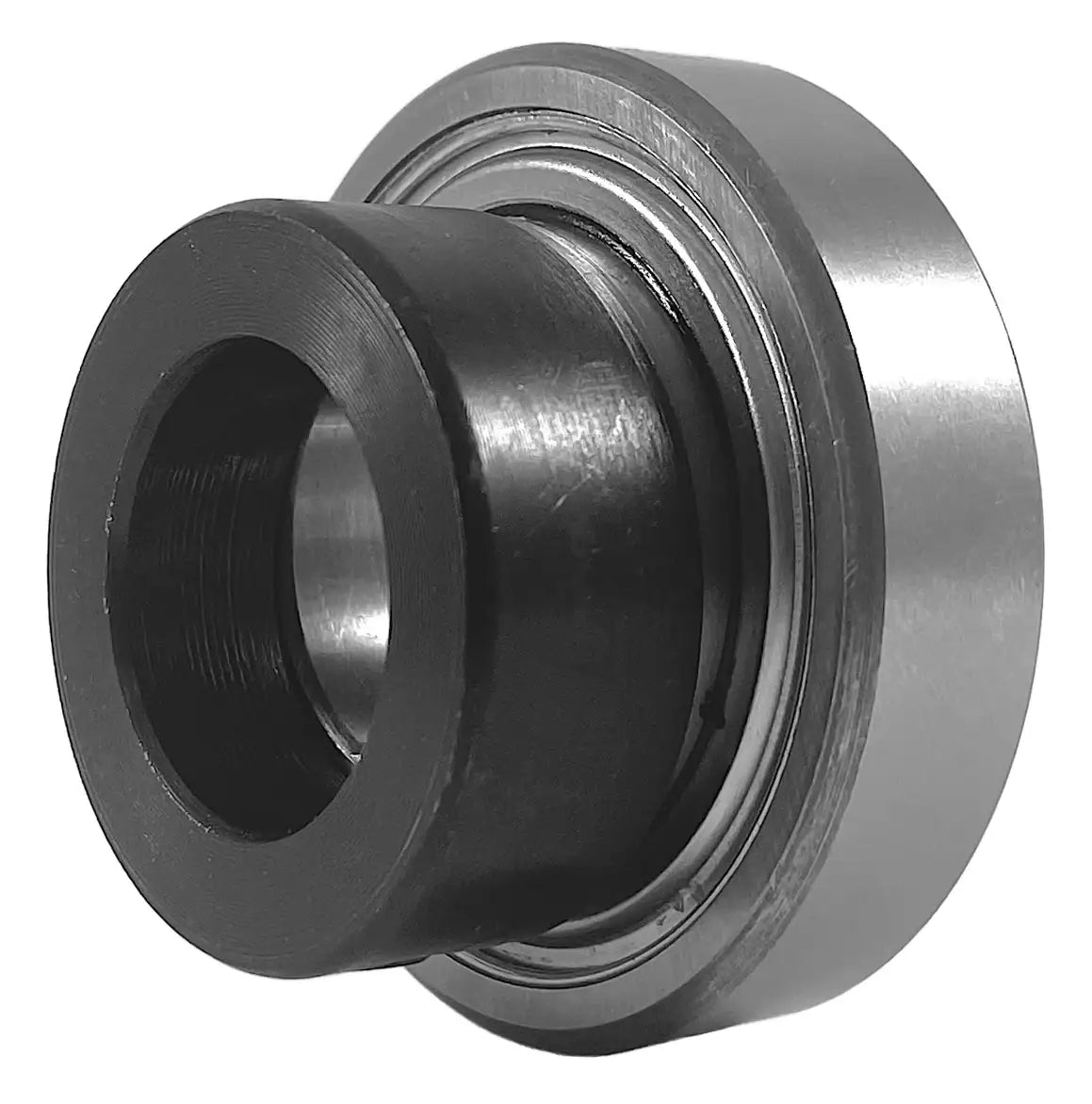

SA207-20 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 1-1/4" shaft. Our SA207-20 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SA207-20 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SA207-20 bearings, contact our customer service and, we will be happy to assist you!
SA207-20 Bearing Dimensions
- Part #: SA 207-20
- Shaft Diameter (d): 1-1/4"
- Setscrew Used: 5/16-24"
- Dimension (D): 2.8346"
- Dimension (Bi): 1.5315"
- Dimension (Be): 0.6693"
- Dimension (N): 0.3346"
- Dimension (M): 0.6654"
- Dimension (W): 2.189"
- Dimension (K): 0.689"
- Dimension (G): 0.2559"
- Dimension (T): 0.2165"
- Dynamic Load Rating (LBS): 5,775
- Static Load Rating (LBS): 3,497
- Weight (LBS): 1.3
- Part #: SA 207-20
- Shaft Diameter (d): 1-1/4"
- Setscrew Used: 5/16-24"
- Dimension (D): 2.8346"
- Dimension (Bi): 1.5315"
- Dimension (Be): 0.6693"
- Dimension (N): 0.3346"
- Dimension (M): 0.6654"
- Dimension (W): 2.189"
- Dimension (K): 0.689"
- Dimension (G): 0.2559"
- Dimension (T): 0.2165"
- Dynamic Load Rating (LBS): 5,775
- Static Load Rating (LBS): 3,497
- Weight (LBS): 1.3
