HCWFJT201-8 Bearing | 1/2" 2-Bolt Eccentric Locking Bearing

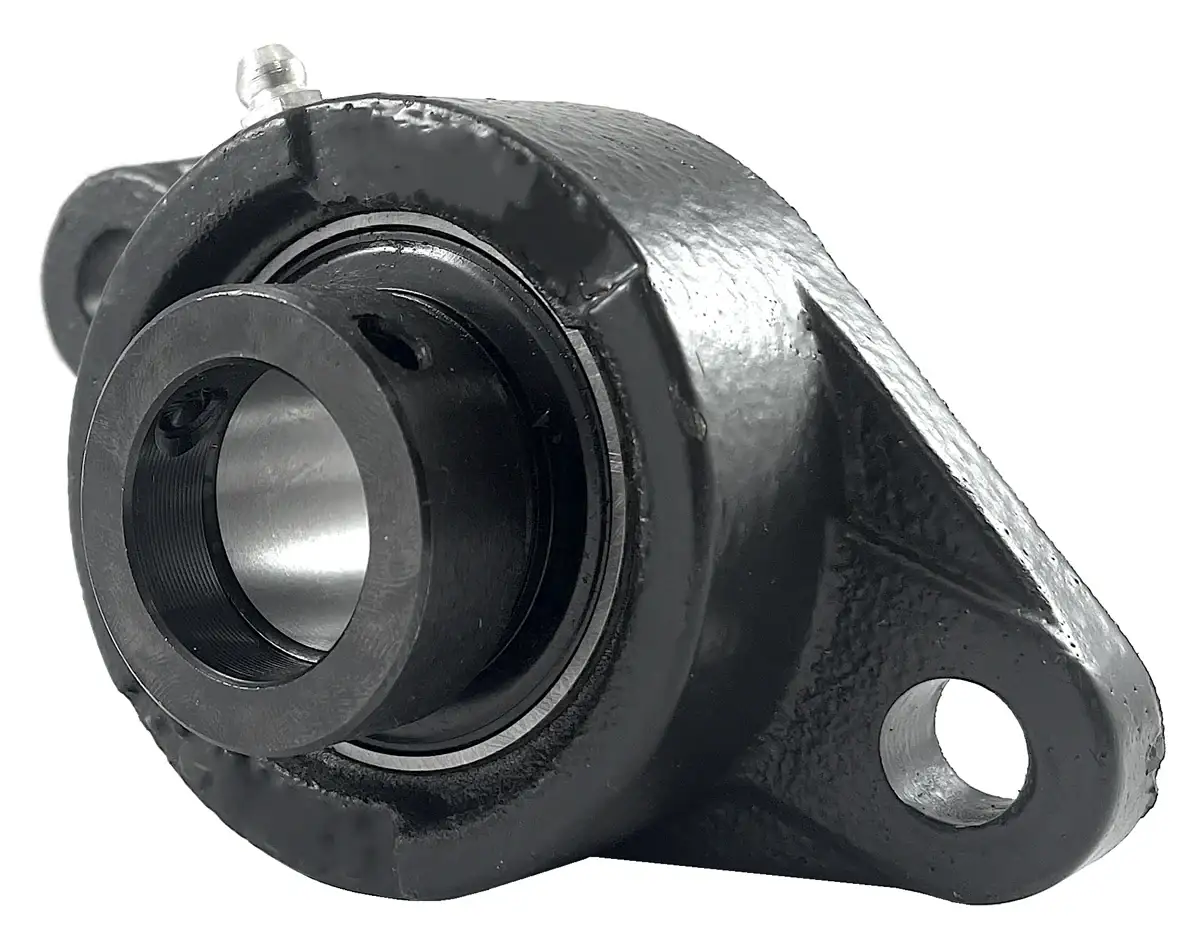

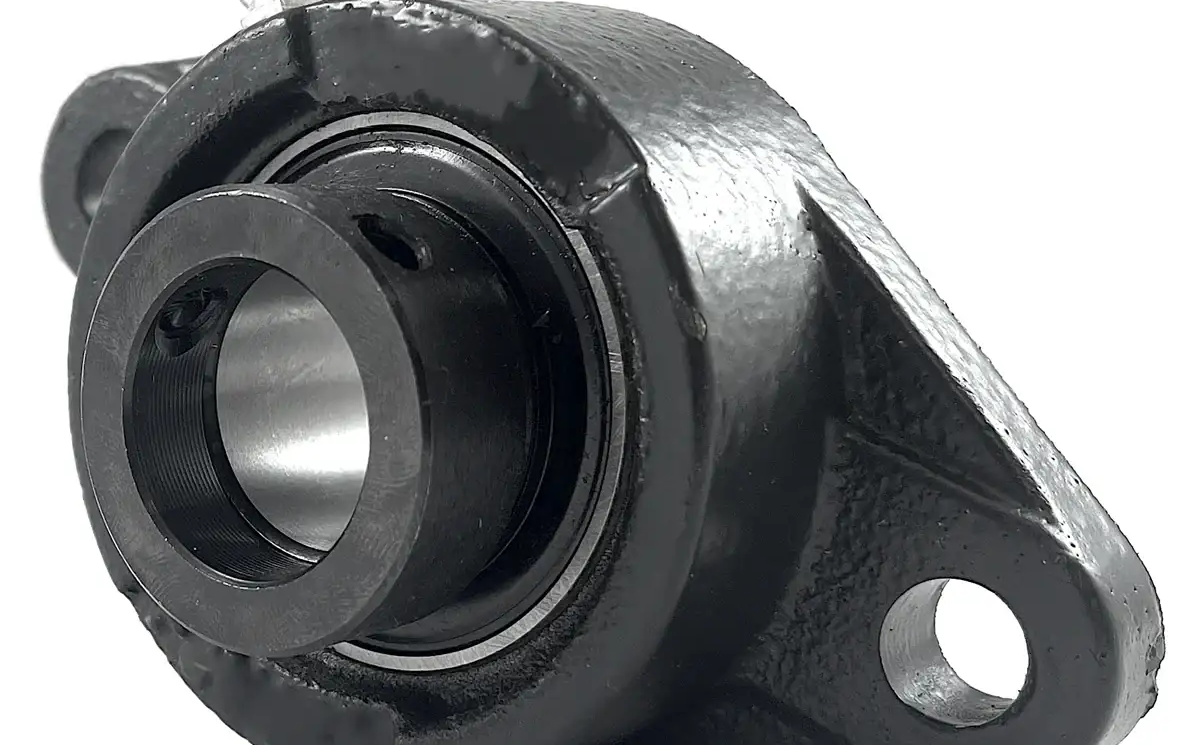

HCWFJT201-8 bearing is a 1/2" bore two-bolt normal-duty flange bearing that utilizes an eccentric locking collar device to secure to a 1/2" shaft. HCWFJT201-8 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior HCWFJT201-8 bearing with a 1/2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCWFJT201-8 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCWFJT201-8 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCWFJT201-8 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCWFJT201-8 bearings, and we will be happy to assist you!

HCWFJT201-8 Bearing Dimensions

• Part #: HCWJT 201-8
• Shaft Diameter (d): 1/2
• Dimension (A): 3.88
• Dimension (E): 3.000
• Dimension (I): 0.59
• Dimension (G): 0.44
• Dimension (L): 0.96
• Dimension (S): 0.39
• Dimension (B): 1.51
• Dimension (Z): 1.50
• Dimension (Bi): 1.0236
• Dimension (N): 0.5472
• Dimension (M): 0.5472
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 2,147
• Static Load Rating (LBS): 2,147

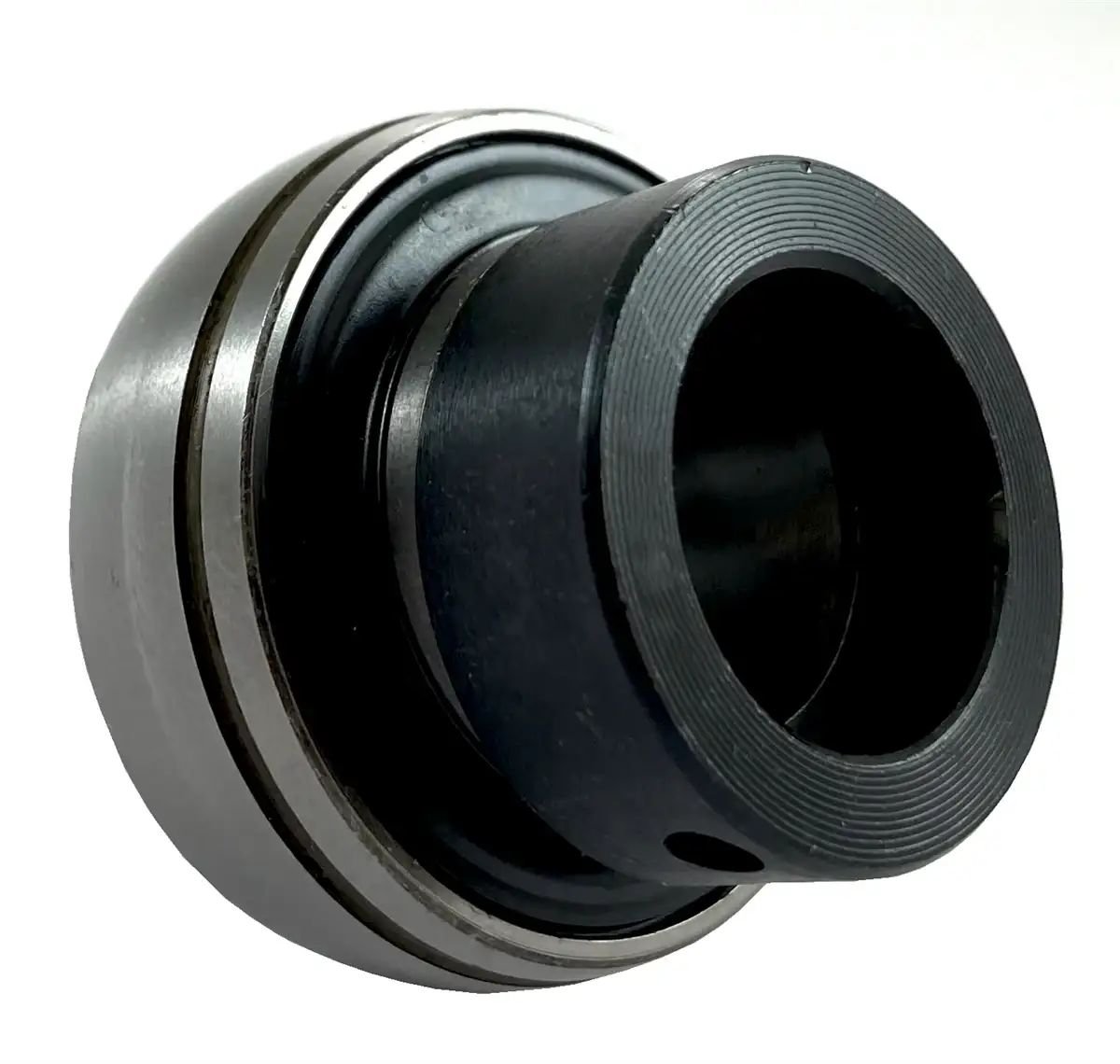

• Bearing Insert: HCW 201-8
• Housing Number: WFT 203
• Weight (LBS): 1.1
